Kvaser Leaf Pro HS v2 User's Guide
Copyright 2023 GMGA MEASURING - Hanoi, Vietnam.
https://gmga.vn/
th
Printed Thurday 20 July, 2023.
We believe that the information contained herein was accurate in all respects at the time of printing.
GMGA MEASURING cannot, however, assume any responsibility for errors or omissions in this text. Also
note that the information in this document is subject to change without notice and should not be construed
as a commitment by GMGA MEASURING.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kvaser Leaf Pro HS v2 and is the answer not in the manual?

Questions and answers

Related Manuals for GMGA MEASURING Kvaser Leaf Pro HS v2

Summary of Contents for GMGA MEASURING Kvaser Leaf Pro HS v2

  • Page 1 We believe that the information contained herein was accurate in all respects at the time of printing. GMGA MEASURING cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed...
  • Page 2 Kvaser Leaf Pro HS v2 User’s Guide 2 (27) (This page is intentionally left blank.) GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...

  • Page 3: Table Of Contents

    2.1 Welcome to Kvaser Leaf Pro HS v2 ....... . .

  • Page 4: About This Manual

    Kvaser Leaf Pro HS v2 User’s Guide 4 (27) 1 About this manual This manual is intended for Kvaser Leaf Pro HS v2 users. This document contains a description of the hardware’s properties and general instructions for connecting the device to a computer.

  • Page 5: Introduction

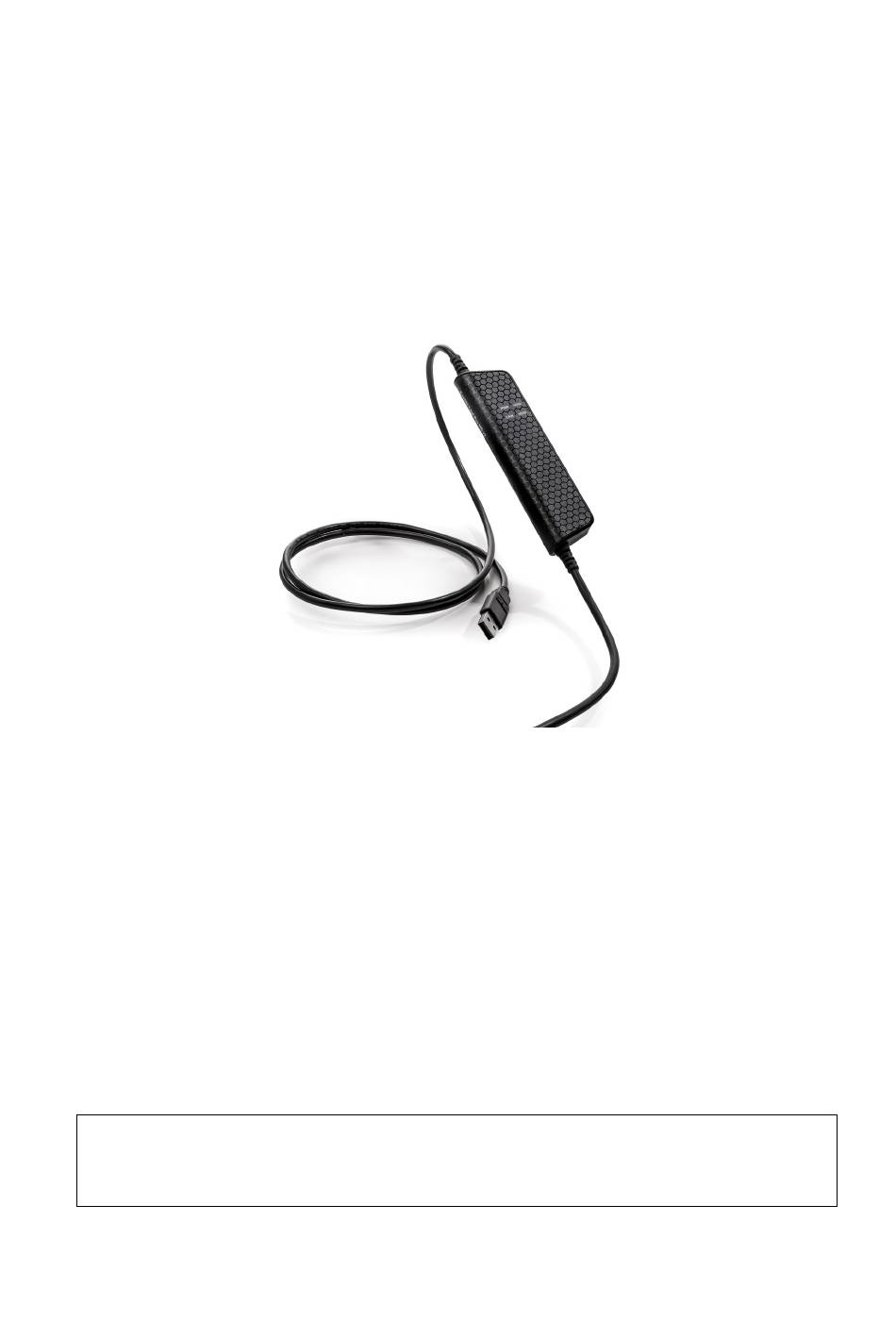

    Kvaser Leaf Pro HS v2 User’s Guide 5 (27) 2 Introduction This section will describe the functions and features of the Kvaser Leaf Pro HS v2. 2.1 Welcome to Kvaser Leaf Pro HS v2 Figure 1: Kvaser Leaf Pro HS v2...

  • Page 6: Major Features

    Throughout this document, we use the name Kvaser Leaf Pro HS v2 to mean any one of the different Kvaser Leaf Pro HS v2 products listed in Table 1, unless otherwise noted.

  • Page 7: The T Programming Language

    Kvaser Leaf Pro HS v2 include dedicated I/O pins. This means that the t functionality listed in Table 2 on Page 8 is not available on Kvaser Leaf Pro HS v2 (the table shows version 3.10 of the t language compiler).

  • Page 8: Additional Software And Documentation

    Kvaser Leaf Pro HS v2 User’s Guide 8 (27) Group Function name Hooks on IoEvent Predefined I/O Functions kvIoGetNumberOfPins kvIoPinGetInfo kvIoPinSetInfo kvIoConfirmConfig kvIoPinSetDigital kvIoPinGetDigital kvIoPinGetOutputDigital kvIoPinSetRelay kvIoPinGetOutputRelay kvIoPinSetAnalog kvIoPinGetAnalog kvIoPinGetOutputAnalog Predefined File I/O Functions fileOpen fileClose fileGets fileReadBlock filePuts fileWriteBlock...

  • Page 9: Kvaser Leaf Pro Hs V2 Hardware

    The driver is installed by running the file The Kvaser Leaf Pro HS v2 may be inserted in any free USB socket on the host computer. You do not need to switch the power off before inserting or removing the device.

  • Page 10: Can Channels

    3.3 CAN channels The Kvaser Leaf Pro HS v2 has one CAN channel in a CAN connector depending on the model. Either a 9-pin D-SUB or a 16-pin OBDII connector is used. See Section 4.4, CAN connectors, on Page 15 for details about the pinout.

  • Page 11: Led Indicators

    11 (27) 3.5 LED Indicators The Kvaser Leaf Pro HS v2 has one power LED and one traffic LED for the CAN channel as shown in Figure 5 on Page 11. Their functions are described in Section 4.1, Definitions of LED states and colors, on Page 12.

  • Page 12: Appendices

    Kvaser Leaf Pro HS v2 User’s Guide 12 (27) 4 Appendices In this section you will find technical information about the Kvaser Leaf Pro HS v2 and its connectors. 4.1 Definitions of LED states and colors A Kvaser device has two basic types of LEDs; Power and Traffic. These are dual colored as shown in Table 3.
  • Page 13 Kvaser Leaf Pro HS v2 User’s Guide 13 (27) 4.1.1 Interface mode The device is in Interface mode when connected to the host computer via USB. If the Power LED is showing a steady green light, the device is in Interface mode and working correctly.

  • Page 14: Start And Stop Of T Programs

    Read the Kvaser t Programming Language guide that can be downloaded at www.kvaser.com/download for more information. The “on start” event will be triggered in the Kvaser Leaf Pro HS v2 when any of the following occurs: kvScriptStart() When a t program is started using the CANlib API ( When a t program is started from another t program.

  • Page 15: Technical Data

    Table 6: Technical Specifications. 4.4 CAN connectors Kvaser Leaf Pro HS v2 devices that use the 9-pin D-SUB connector (see Figure 6 on Page 15) have the pinning described in Table 7 on Page 16. Figure 6: The D-SUB 9 connector pin numbers...

  • Page 16: Can Bus Termination

    Not connected Not connected Table 7: Configuration of the 9-pin D-SUB Kvaser Leaf Pro HS v2 devices that use the 16-pin OBDII plug (see Figure 7) have the pinning described in Table 8. Figure 7: OBDII Connector OBDII pin number...

  • Page 17: Updating The Firmware

    To check the current firmware version, open “Kvaser Device Guide” which can be found in the Control Panel. Select “Kvaser Leaf Pro HS v2” in the tree view to the left, and click on the channel. The firmware revision information now appears in the right half of the window.
  • Page 18 Kvaser Leaf Pro HS v2 User’s Guide 18 (27) Figure 8: An example setup where all devices are synchronized via MagiSync. Figure 9: Not all devices are synchronized via MagiSync in this setup. GMGA MEASURING - Hanoi, Vietnam — https://gmga.vn/...
  • Page 19 Kvaser Leaf Pro HS v2 User’s Guide 19 (27) synchronized. The easiest way to verify the setup is to view Synchronized Hardware in the Device Tree of “Kvaser Device Guide” in your computer’s control panel. If all your hardware is placed in one Kvaser MagiSync Group, then you are ready to go.

  • Page 20: Disposal And Recycling Information

    Kvaser Leaf Pro HS v2 User’s Guide 20 (27) 5 Disposal and Recycling Information When this product reaches its end of life, please dispose of it according to your local environmental laws and guidelines. For information about Kvaser’s recycling programs, visit: https://www.kvaser.com/en/kvaser/recycling-policy.html...

  • Page 21: Legal Acknowledgements

    Kvaser Leaf Pro HS v2 User’s Guide 21 (27) 6 Legal acknowledgements 6.1 Usage warning WARNING FOR ALL USERS WARNING! - YOUR USE OF THIS DEVICE MUST BE DONE WITH CAUTION AND A FULL UNDERSTANDING OF THE RISKS! THIS WARNING IS PRESENTED TO INFORM YOU THAT THE OPERATION OF THIS DEVICE MAY BE DANGEROUS.

  • Page 22: Eu Regulatory Compliance

    Kvaser Leaf Pro HS v2 User’s Guide 22 (27) 6.2 EU Regulatory Compliance EU Declaration of Conformity (DoC) M ̈ olndal Kvaser AB Company Name: City: Aminogatan 25 +46 31 886344 Postal address: Telephone number: 431 53 sales@kvaser.com Postcode: E-mail address:...
  • Page 23 Kvaser Leaf Pro HS v2 User’s Guide 23 (27) EU Declaration of Conformity (DoC) M ̈ olndal Kvaser AB Company Name: City: +46 31 886344 Aminogatan 25 Postal address: Telephone number: 431 53 sales@kvaser.com Postcode: E-mail address: declare that the DoC is issued under our sole responsibility and belongs to the following product:...

  • Page 24: Fcc Regulatory Compliance

    Kvaser Leaf Pro HS v2 User’s Guide 24 (27) 6.3 FCC Regulatory Compliance Federal Communications Commission (FCC) Compliance Information Statement IDENTIFICATION OBJECT: Product: Kvaser Leaf Pro HS v2 Type: 73-30130-00843-4 APPLICABLE COMPLIANCE STATEMENTS: CFR Title 47 Part 15 15.107, 15.109 This device complies with part 15 of the FCC Rules.
  • Page 25 Kvaser Leaf Pro HS v2 User’s Guide 25 (27) Federal Communications Commission (FCC) Compliance Information Statement IDENTIFICATION OBJECT: Product: Kvaser Leaf Pro HS v2 OBDII Type: 73-30130-00849-6 APPLICABLE COMPLIANCE STATEMENTS: CFR Title 47 Part 15 15.107, 15.109 This device complies with part 15 of the FCC Rules.

  • Page 26: Patents, Copyrights And Trademarks

    Kvaser Leaf Pro HS v2 User’s Guide 26 (27) 6.4 Patents, Copyrights and Trademarks All trademarks are the property of their respective owner. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Adobe, the Adobe logo, and Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.

  • Page 27: Document Revision History

    Kvaser Leaf Pro HS v2 User’s Guide 27 (27) 7 Document Revision History Version history for document UG_98178_leaf_pro_hs_v2: Revision Date Changes 2015-08-10 Initial version 2015-10-29 Minor textual changes 2016-02-04 Minor textual changes 2017-01-09 Updated compliance text, added link to patents...
