Jimmy at work GM171016 Assembly Instructions Manual

Walk-in greenhouse
Hide thumbs

Advertisement

Table of Contents

Assembly Instructions
—— For Hinged Door
Walk-in Greenhouse

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GM171016 and is the answer not in the manual?

Questions and answers

Related Manuals for Jimmy at work GM171016

Summary of Contents for Jimmy at work GM171016

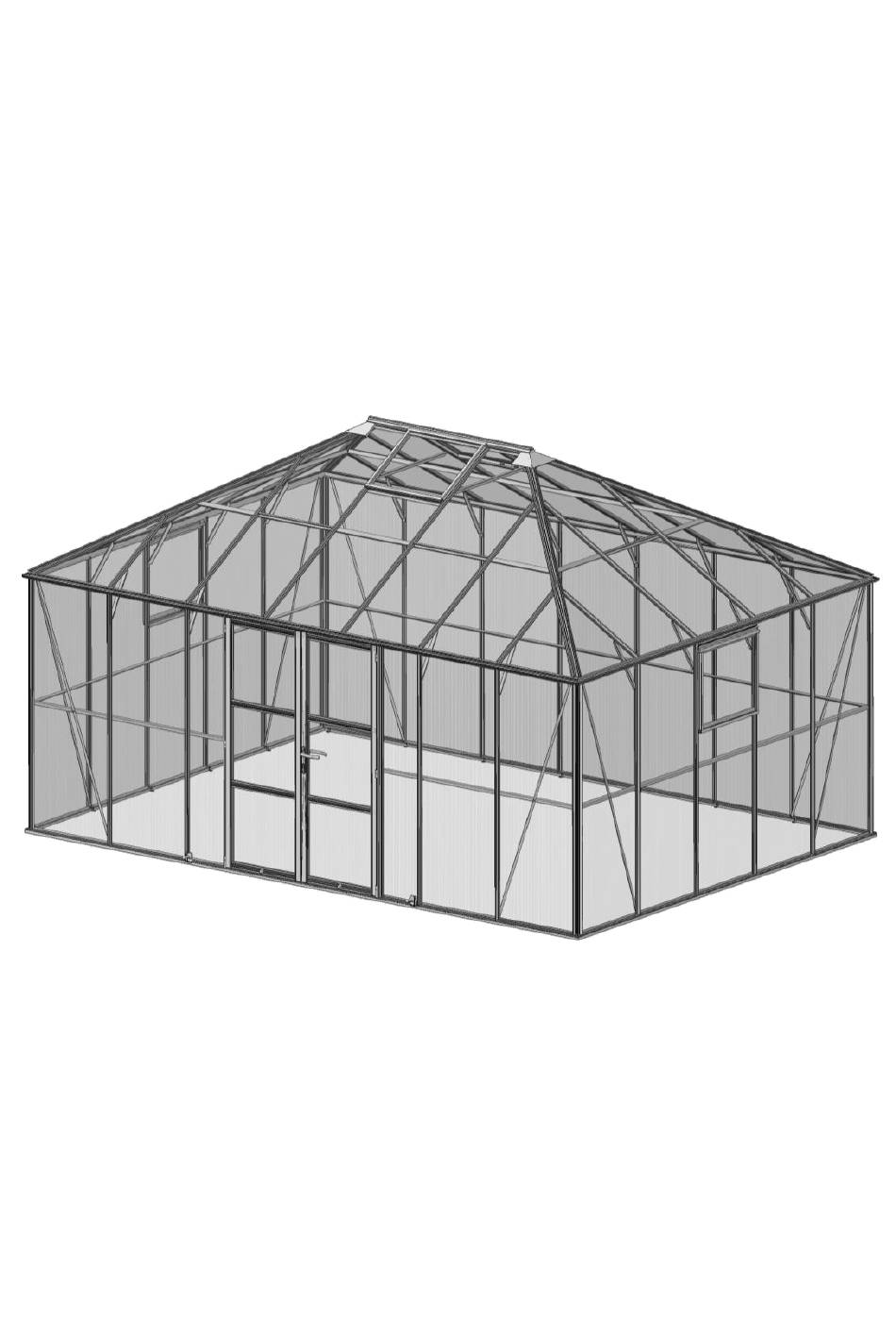

  • Page 1 Assembly Instructions —— For Hinged Door Walk-in Greenhouse...
  • Page 2 Thank you for purchasing your new greenhouse. We recommend you familiarize yourself with the instructions and read all safety information before you commence assembly. These instructions are divided into sections： Base, Part lists, Preparation, Side wall, Rear wall, Front wall, Roof, Vent, Door, PVC capping bar, Polycarbonate or Glass, Down pipes, Optional Turbine Vent, Anchoring greenhouse to slab or base etc.
  • Page 3 Important Before assembling your new greenhouse, please check that all parts in the provided list are included. Please take each bundle out of the packaging in order to identify the parts better. Most parts are num- bered and can be identified by a stamped number or removable label. Alternatively, the components can be identified by lengths detailed in the packing list (see diagram below).
  • Page 4 Base We cannot emphasis how important it is to have a proper base for your Greenhouse to be erected upon. It is essential that the BASE IS FLAT, LEVEL AND SUBSTANTIAL enough to take the weight of the greenhouse including its polycarbonate panels or heavy glass. Give yourself enough room around your base to allow for fitting the polycarbonate panel or glass and any ongoing maintenance / cleaning.

  • Page 5: Table Of Contents

    Parts List Package 1 Side wall 7601 9147 9307 7607 9317 7910 7037 Size 1922 3678 3707 1922 3601 2033 M6x10 Package 2 Rear wall 9350 9310 7607 9319 7910 7037 Size 5112 5141 1922 5035 2033 M6x10 Package 3 Front wall 9349 9309 7607 7530 9323 7910 7037...
  • Page 6 Parts List Package 6 Door 7523 7524 7525 7526 7527 7962 7529 Size 1909 1909 1909 M6x10 Φ3.5x19 M6x25 S1/S2 LOCK Rubber Fluff Size Φ3.5x13 M6x8 2 SETS 1 SET 1.4M Package 8 Downpipe 1400 Φ3.5x13 Package 9 Roof Vent 7053 7054 7055...
  • Page 7 BASE Base dimensions and recommendations. Ensure that your base is level as this will make assembly of the building, especially the glazing of the roof much more straight forward. PARTS LIST Most components should have a code punched into their metal surface. Identify and separate all like for like components prior to assembly.
  • Page 8 Connect roof glazing bar to roof corner bar with joining plate #m3. Join 8 short roof glazing bar #9334 & #9335 between roof corner bar and eave. Join 8 long roof glazing bar #9338 & #9339 between roof corner bar and eave. Note: ---Please remember to insert an extra bolt in roof short glazing bar(#9334,#9335) in advance for cantilever #7037 use.

  • Page 9: Size 1922 3678 3707 1922 3601 2033 464 M6X10 M6 - - Qty

    Package 1 Side wall 7601 9147 9307 7607 9317 7910 7037 Size 1922 3678 3707 1922 3601 2033 M6x10 9307 7910 7910 9317 7601 7607 7607 7607 7607 7601 9147 9147 7601 9147...
  • Page 10 Side wall 7607 7607 7910 9147 9147 7910 7607 7601 9317 9317 9317 9307 9307 7601 7601 7910 Note: Please add ex- 9307 tra bolt into channel for cantilever use in advance. 7607 Note: At this stage, if you already decide where your side vent are positioned, please insert two extra bolts into each side bar (#7607) either side of a vent opening.

  • Page 11: Size 5112 5141 1922 5035 2033 464 M6X10 M6 - - Qty

    Package 2 Rear wall 9350 9310 7607 9319 7910 7037 Size 5112 5141 1922 5035 2033 M6x10 9310 7607 7607 7607 7607 7607 7607 7910 7910 9319 9350 7607 7607 7910 9350 9350 7910 7607 9310 9310 9319 9319 7607 7910 Note: Please add extra bolt into channel for can-...

  • Page 12: Qty

    Package 3 Front wall 9349 9309 7607 7530 9323 7910 7037 m5 Rubber Size 5112 5141 1922 1922 1809 2033 M6x10 M6 M6x8 9309 7607 7607 7530 7530 7607 7607 7910 7910 9323 9323 9349 7530 7530 Rubber 7530 7530 7530 a19/a2 7530...
  • Page 13 Front wall 7607 9349 7910 9349 7530 7910 7607 9323 9323 9349 7530 9309 9323 7910 9309 9309 7530 7607 Note: Please add ex- tra bolt into channel for cantilever use in advance.
  • Page 14 Connect side wall with front wall and rear wall 9310 9319 9350...

  • Page 15: Qty

    Package 4 Roof 9333 9334 9335 9338 9339 7344 9342 9347 9326 7351 9363 9364 Size 2684 1642 1642 2070 1890 3324 1496 9365 9366 Size M6x10 Φ3.5x19 Φ3.5x13 9326 9326 9363 9364 9363...
  • Page 16 Roof 7344 7344 7344 9326 7344 7344 7344 9333 9333 9333 9326 9333 9326 9333 9333 9333 9333 9333...
  • Page 17 Roof 9334 9338 9339 9335 9335 9334 9347 7344 7344 9338 9339 9342 9342 9339 9338 7344 7344 9335 9347 9334 9335 9339 9338 9334 9333 9333 9333 9333 9342/ 9342/ 9347 9334/ 9347 9334/ 9338 9338 7344 7344 7037 9342/ 7351 9347...
  • Page 18 Roof 9366 9365...
  • Page 19 Package 5 Side Vent 7870 7053 7874 7055 7056 7057 M6x10 M6 Φ3.9x8 M4x8 Size 7870 No gap No gap 7053 7053 a1/a2 7874 7874 7056 7056 7056...
  • Page 20 Side Vent 7055 7057 7055 7057 7055 7055 7056 p3/a4...
  • Page 21 Package 9 Roof Vent 7053 7054 7055 7056 7057 Φ3.9x8 M4x8 Size M6x10 7053 7344 7344 7053 7344 7054 7054 7056 7056 7056...
  • Page 22 Roof Vent 7055 7057 7055 7057 7055 7055 7056 p3/a4...
  • Page 23 Package 6 Door 7523 7524 7525 7526 7527 7962 7529 Φ3.5x19 M6x25 Size 1909 1909 1909 M6x10 S1/S2 LOCK Rubber Fluff Size Φ3.5x13 M6x8 2 SETS 1 SET 1.4M 7524 7524 7525 7525 7525 7525 7527 7962 7526 7527 7523 7523...
  • Page 24 Door 7526 Φ3.5x19 M4x28 M4x40 a11/a2 7527 7523 7523 7962 7529 a19/a2 7526/ 7527 7527 7524 a19/a2...
  • Page 25 Door 7525 a19/a2 7527 7523 7527 7523 a19/a2 7524 a19/a2 7962 7962 a19/a2 7523 Rubber...
  • Page 26 Door a9/a2...
  • Page 27 PVC Capping Bar Step1 Step6 Step3 Step4 Step5 Step2 PVC Capping Bar Note: PVC capping bars were pushed in place from both top and bottom in diagonal direction together. If you assemble it from one side by one side, you will fell space is too tight to assemble another PVC capping bar.
  • Page 28 10mm Polycarbonate sheet If you feel PVC size not cor- rect, please use scissors to cut it. c-787 c-787 c-813 c-813 c-1615 c-1615 c-1641 c-1641 c-1641 c-1641 c-1615 c-1615 c-813 c-813 c-787 c-787...
  • Page 29 10mm Polycarbonate sheet DWG Length QTY Size 1921 700x1915 1243 603x583 Side 680x605 341x1915 700x1243 695x0/802 695x0/802 700x822/1630 1060 700x822/1630 Roof 1095 700x1650/2025/1650x50 1615 700x1650/2080x327 1641 700x1650/2080x327 2069 700x1451 1439 Silicone Panel Panel Panel Mounting of polycarbonate. 1. Only neutral silicone is to be used for mounting polycarbonate. Do not use normal silicone. The very low weight of polycarbonate requires you to press the plates firmly into the silicone to ensure proper boning.
  • Page 30 4mm Glass...
  • Page 31 4mm Glass If you feel PVC size not cor- rect, please use scissors to cut it. Push on c-787 c-813 c-813 c-1615 c-1615 c-1641 c-1641 c-1641 c-1641 c-1615 c-1615 c-813 c-813 c-787 c-787...
  • Page 32 4mm Glass DWG Length QTY Size 1921 700x1919 Side 1243 603x609 700x631 341x1919 700x1248 695x0/802 1060 700x822/1630 Roof 1095 700x1007 1615 700x642/1017/642x50 1641 700x642/1072x327 2069 700x1451 1439 5 meter 34 roll Silicone Glass Glass Glass...
  • Page 33 Downpipe Waterproof Alu. Foil tape 100mm x 4pc Φ3.5x13 1400...
  • Page 34 Anchoring building to slab / concrete base For this final stage you will need No.10 X 2” screws, grey wall plugs, a 8mm mason- ry drill bit and a hammer drill. Fixing the greenhouse to the ground is very simple to do. When you built the front, rear and side assemblies you will have attached base brackets (m5) in spe- cific places around the building.
  • Page 35 Optional Cresting and Finials Please use silicone to fix the crestings and finials on ridge. CAUTION: Fill in gap Once finial in position, please im- mediately drill a 4mm hole on ridge finial with M4x12 bolt and M4x12 nut to avoid finial falling off to injure people.
  • Page 36 The list of parts Description Side wall Rear wall Front wall Roof Side Vent Door PVC capping bar Downpipe Roof Vent Polycarbonate panels Tools Assembly Instruction...
