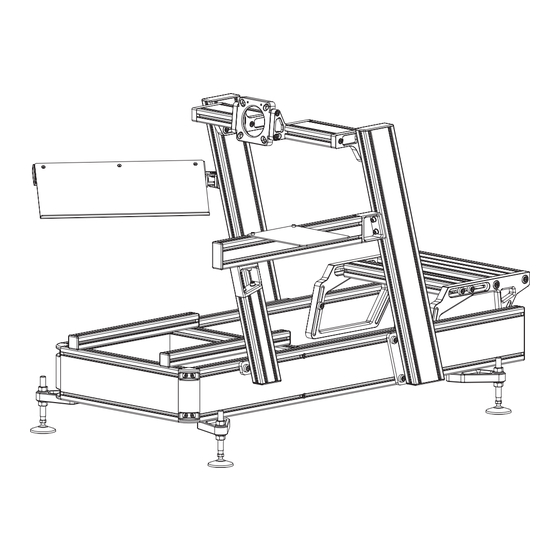

- Page 1 INSTRUCTION MANUAL P1X Pro Tony Kanaan Edition Bundle SLC031 VERSION 1.0 Last updated: 24-04-2024...
-
Page 2: Before You Start
BEFORE YOU START: Thank you for purchasing this Sim-Lab product! On the following pages, you will find detailed instructions on assembly. This requires only a set of simple tools and some of your time. Please check the bill of materials before starting (pages 25-26) and make sure all the parts are delivered. - Page 3 1350MM 500MM Washer M8 M8 X 40 (DIN 988) Note: the counterbores should point (arrows) to the outside of the cockpit. 3 27...
- Page 4 490MM Corner M8 X 20 Bracket 4 27...
- Page 5 Slot-Nut M8 Profile 160x40 M8 X 20 End-Cap 5 27...
- Page 6 Nut M16 Washer M16 Nut M16 Washer M16 Foot Foot Foot Foot BUILD Support Plate Support Plate BOTH VERSIONS 6 27...
- Page 7 M8 X 25 7 27...
- Page 8 500MM Washer M8 Slot-Nut M8 Profile 40X40 M8 X 40 End-Cap (DIN 988) 8 27...
- Page 9 450MM 450MM Pedal Deck Cap-Washer M8 X 30 Washer M8 Bracket (DIN 988) 9 27...
- Page 10 Cap-Washer Washer M8 Slot-Nut M8 M8 X 40 (DIN 988) 10 27...
- Page 11 850MM Upright Profile 120X40 M8 X 20 Slot-Nut M8 End-Cap Angled Sandwich LEFT BUILD 2X Part B9 is is angled, therefore only fits on the LEFT side of the cockpit. For the RIGHT side of the upright assembly, see the next page. 11 27...
- Page 12 Cap-Washer M8 X 25 Washer M8 Slot-Nut M8 (DIN 988) 12 27...
- Page 13 Front Mount Front Mount Front Mount M8 X 25 Bracket A Bracket B Spacer 13 27...
- Page 14 Front Mount Front Mount M8 X 25 Spacer 14 27...
- Page 15 Cap-Washer M8 X 25 Washer M8 Slot-Nut M8 (DIN 988) 15 27...
- Page 16 650MM Side Mount Washer M8 Profile 80X40 M8 X 25 Slot-Nut M8 End-Cap Bracket 16 27...
- Page 17 320MM Side Mount Side Mount Washer M8 Profile 80X40 M8 X 25 M8 X 20 Slot-Nut M8 End-Cap Angled Bracket Sandwich Plate 17 27...
- Page 18 Cap-Washer M8 X 25 Washer M8 Slot-Nut M8 (DIN 988) 18 27...
- Page 19 M8 X 25 Washer M8 19 27...
- Page 20 Joint 40 Joint 40 M8 X 20 M8 X 16 Slot-Nut M8 Adapter (F7) 20 27...
- Page 21 Profile Side Plate Slot-Nut M5 M6 X 12 End-Cap IMPORTANT: Only one side of the profile has threaded holes. Install the ‘side plate’ (F3) first. Attempting to install the ‘end-cap’ (F4) into the threaded holes will cause the part to fail. 21 27...
- Page 22 M8 X 16 Lock-Nut M8 22 27...
- Page 23 Keyboard Tray M5 X 10 23 27...
- Page 24 Mousepad M6 X 12 Slot-Nut M6 24 27...
- Page 25 BOX 1/3 Cap-Washer M8 PROFILE KIT Washer M8 DIN 988 Part QTY Note Washer M8 DIN 125-A Slot-Nut M8 160X40 UL Length=1350mm Machined. HARDWARE KIT - ADJUSTABLE FEET 160X40 UL Length=500mm Crossbeam. 160X40 UL Length=490mm Rear. Foot support plate 120X40 Length=850mm Uprights, angled.
-
Page 26: Hardware Kit
BOX 3/3 - FRONT MOUNT BOX 3/3 - KEYBOARD TRAY PROFILE KIT PROFILE KIT Part QTY Note Part QTY Note 120X40 UL Length=192mm Only one end of the profile 30X60 Length=500mm has threaded holes. HARDWARE KIT HARDWARE KIT Front mount Keyboard tray Front mount bracket A Keyboard tray side plate... - Page 27 They can be reached at support@sim-lab.eu Alternatively, we now have a Discord server where there are quite some experienced Sim-Lab customers hanging out. They might just help you along if you ask them nicely ;) www.sim-lab.eu/discord...
