omnicharge Omni 20C+ User Manual

Omni 20C+
User Manual
www.omnicharge.co
BEFORE USING THE OMNI 20C+
Calibrate the battery
To ensure a correct battery readout, calibrate the battery when you first receive the product and
periodically in the future.
1. 2.
Fully charge your Omnicharge to 100% to
Fully discharge the Omnicharge until it
finish the calibration. Once you see a fully
cannot be turned on. Press the Power
charged battery icon, you can power the
Button and you should see an empty
battery icon on the screen. Omnicharge back on.
Note: When not in use, the Omnicharge should be stored at full battery and fully charged at
least every 6 months to avoid over depletion. Failure to do so can cause the battery to
malfunction and is not covered by warranty.
SCREEN
OLED SCREEN WITH REAL TIME METRICS
1. Status Icons
100%
6
2. USB-C port 1 input(w) output(v)
3. Battery Power Output (watts)
C HUB
1
4. Battery Temperature
34.00 W 0.00 V
2 5
5. USB-C port 2 input(w) output(v)
65.02 W 20.3 °C
4 6. Battery Percentage
3
BUTTON FUNCTIONS
PRIMARY CONTROLS
MENU CONTROLS
• Double press to enter the menu
• Long press to power On
• Quick press to select
• Long press to power Off
• On/Off USB-C ports • Move Up
• On/Off Hub Mode • Move Down
WIRELESS CHARGING
MAX OUTPUT 10W

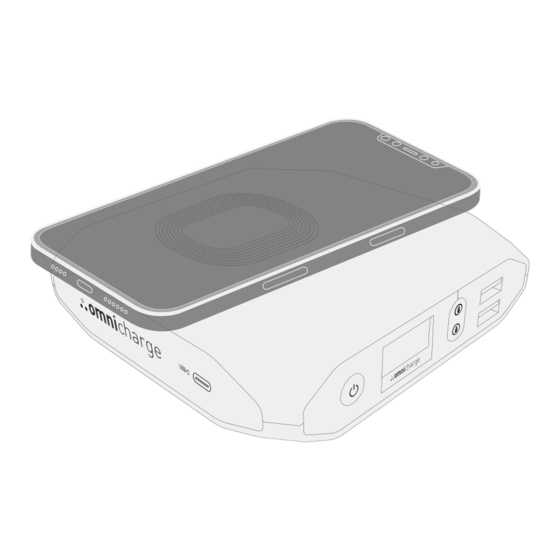

Place your phone on top of the Omnicharge to get
fast and reliable wireless charging. For optimal
wireless charging, align your phone horizontally
with the back edge of the Omnicharge as shown
in the picture.
You will see a flashing wireless icon
when the phone has been detected.
100%
C USB
0.00 V
0.00 W
8.09 W 20.3 °C
Note:
The optimal charging range varies depending on the size of the receiver coil of your
phone. Some phone models have small receiver coils and can experience sudden
interruptions after few seconds of charging. This is because of minor alignment deviations
between the transmitter and receiver coil. Please lift up the phone, wait a few seconds and
finetune the position until you get a stable wireless charge.
USB-C
Output Button
Power & Menu
Button
USB-C PORT 1
USB PD MAX OUTPUT 60W
Short press the USB-C output button to turn the USB-C ports on/off.
Note:
Make sure the Omni 20C+ is powered on before plugging in your devices,
otherwise your device will recharge the Omni 20C+.
.............................................................................................................................................................................................................................
PASS-THROUGH CHARGING
Pass-through charging means that you input power to the Omnicharge while
outputting power to your device (passing the power through the Omnicharge).
All Omnicharge products support pass-through charging. This means that you can
input power through one of the USB-C ports and output power through any of the
other ports.
HOW TO USE HUB MODE
USB-C PORT 2
Use the Omni 20C+ as a USB hub and transfer files between your smartphones, flash drives,
cameras or laptops.
1. Connect the USB-C/HUB port (on the
right side) to a USB-C port on your laptop .
Note:
The left USB-C port (port 1) and the USB-A ports can be used to transfer files from
smartphones, flash drives, cameras or other standard USB-A or USB-C devices.
USB-C PORT 2
USB PD MAX OUTPUT 100W
The high powered 100W USB-C port can directly charge your laptop and mobile devices.
The USB-C port is plug-and-play, just plug your USB-C device into the USB-C port to start
charging.
Note:
If your USB-C output does not immediately connect, try to reconnect the USB-C cable.
4
3 USB-A PORTS
USB Hub
MAX OUTPUT 18W
Button
2
OLED
USB-A Ports: Quick Charge QC3.0 compatible, 18W Max
1 Screen
*
Combined USB-A/USB-C ports max output: 120W
RECHARGING THE OMNI 20C+
1) CHARGING VIA USB-C
USB-C input: 45W Max
Use the included USB charging cable to recharge your Omnicharge from a usb source.
A fast charger can be purchased separately. Most USB-C laptop chargers can also be
used to recharge the Omnicharge.
Note:
If the Omnicharge does not detect incoming power, try to plug in your USB-C charger
while the Omnicharge is turned off. Once charging has started, you can power on the
Omnicharge to utilize pass-through charging.
AC wall charger
3 hours
2. Initiate HUB mode by short pressing the
HUB button (bottom button), and a HUB icon
will appear on the screen.
USB sources Car power port (12V) Laptop adapter
5-7 hours 3 hours 3 hours
