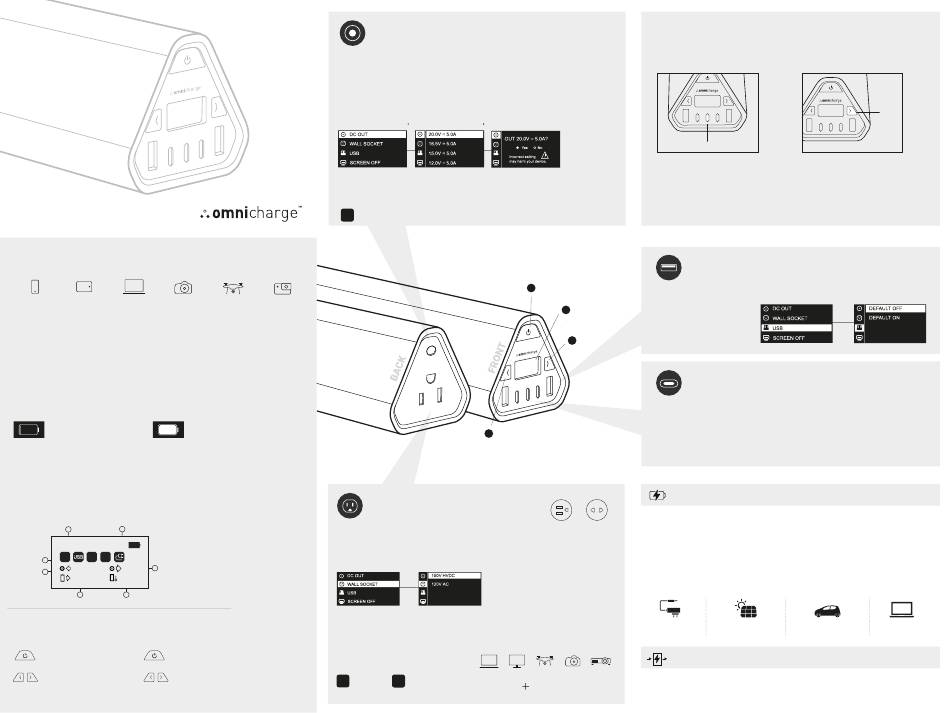

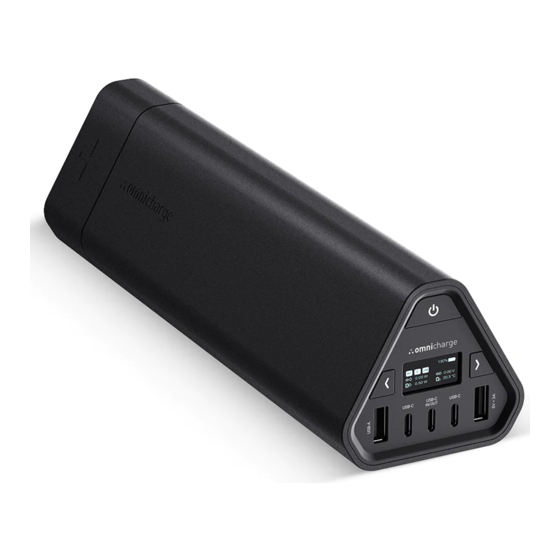

omnicharge Omni 40 User Manual

Omni 40
User Manual
www.omnicharge.co
POWER YOUR NEXT ADVENTURE
Smartphone Tablet 15" Laptop DSLR Camera
Up To 8 Charges Up To 4 Charges Up To 2 Charge Up To 10 Charges

BEFORE USING THE OMNI 40

Calibrate the battery
To ensure a correct battery readout, calibrate the battery when you first receive the product and
periodically in the future.
1. 2.
Fully discharge the Omnicharge until it Fully charge your Omnicharge to 100% to
cannot be turned on. Press the Power finish the calibration. Once you see a fully
Button and you should see an empty charged battery icon, you can power the
battery icon on the screen. Omnicharge back on.
Note: When not in use, the Omnicharge should be stored at full battery and fully charged at least
every 6 months to avoid over depletion. Failure to do so can cause the battery to malfunction
and is not covered by warranty.

SCREEN

OLED screen with real time metrics
7 6
1. Status Icons
60:00 100%
2. Power Input (watts)
3. Battery Power Output (watts)
AC DC
HUB
1
4. Battery Temperature
34.00 W 0.00 V
5
5. DC Output Voltage
2
65.02 W 20.3 °C
6. Battery Percentage
7. Time Remaining
3 4

BUTTON FUNCTIONS

PRIMARY CONTROLS
MENU CONTROLS
• Long press to power On • Double press to enter the menu
• Long press to power Off • Quick press to select
• Left Button: On/Off AC Outlet • Left Button: Move up
• Right Button: On/Off HUB • Right Button: Move down

DC PORT

MAX OUTPUT 5A - 100W
The DC output feature allows you to directly output DC power through the barrel port. To use
this feature you will need to know the voltage and amperage of your device and have a
compatible cable.
Warning:
Using the wrong voltage may damage your device.

Enabling DC Output

Step 1
Omnicharge keeps 4 voltage presets. You can press and hold the power button while
selecting a preset to customize the voltage and amperage.
.............................................................................................................................................................................................................................
Once active, a DC icon will appear on the screen.
DC
Drone Action Cam
Up To 4 Charges Up To 16 Charges

AC OUTLET

MAX OUTPUT 100W
To change the AC output mode, double press the Power
Button to enter the menu and select Wall Socket.
.............................................................................................................................................................................................................................
1.
Choose 120V AC/150V HVDC mode in the menu
.............................................................................................................................................................................................................................
2.
When AC/HVDC is active, the
following icons should appear on the
screen
AC output
AC
5V - 25V
WITH 0.1V ACCURACY
Step 2
Step 3
Power & Menu
1
Button
OLED
2
Screen
3
4
AC OUTPUT
Button
US model
120v
Note: 150V HVDC is recommended
if you are using a switch mode
power supply, such as laptop's AC
power adapter.
Check our support page at
www.omnicharge.co for more
detailed information.
3.
Power any device
Laptop TV Drone Camera
HV
HVDC output
DC
And so much more

HOW TO USE HUB MODE

Usb-C PORT IN/OUT
Use the Omni 40 as a USB hub and transfer files between your smartphones, flash drives,
cameras or laptops.
USB-C / HUB port
1. Connect the USB-C/HUB port (in the
centre) to a USB-C port on your laptop .
Note:
All the remaining USB-C ports and USB-A ports can be used to transfer files from
smartphones, flash drives, cameras or other standard USB-A or USB-C devices.

USB-A PORTS

MAX OUTPUT 27W
USB-A Ports: Quick Charge QC3.0 compatible, 27W Max
1.
Choose whether the USB
output is ON or OFF by default.
HUB
Button

USB-C PORTS

MAX OUTPUT 150W
USB-C Main Port (Port 2): 100W Max
USB-C Ports 1&3: 30W Max
The USB-C ports are always on and need no configuration. Simply plug your USB-C device
into any USB-C port to start charging.
Note:
The USB-C and DC port share the same power circuit and cannot be used
at the same time.
Recharging YOUR OMNICHARGE
1) FROM THE USB-C PORT
EU model
USB-C port max input: 90W
230v
Connect a USB-C wall charger and it will
automatically start recharging the Omni 40.
If the Omnicharge does not detect incoming
power, try to plug in your USB-C charger while
the Omnicharge is turned off.
Note: The USB-C and DC port share the same power circuit and cannot be used at the same time.
AC wall charger Solar (up to 45W)
3 hours 3-6 hours

PASS-THROUGH CHARGING

Projector
Pass-through charging means that you input power to the Omnicharge while outputting power
to your device (passing the power through the Omnicharge). All Omnicharge products support
pass-through charging. This means that you can input power through the USB-C or DC port,
and output to the AC, USB-A.
HUB
Button
2. Initiate HUB mode by short pressing
the HUB button (Right button), and a
HUB icon will appear on the screen.
2) FROM THE BARREL PORT
DC Input 5V - 25V, Up to 5A, Max 90W
To charge from the barrel port make sure
you have a compatible charger.
The Omni 40 uses a common 5.5 x 2.5mm
connector and accepts voltages in the
5V-25V range.
Car power port (12V) Laptop adapter
3-6 hours 3 hours
