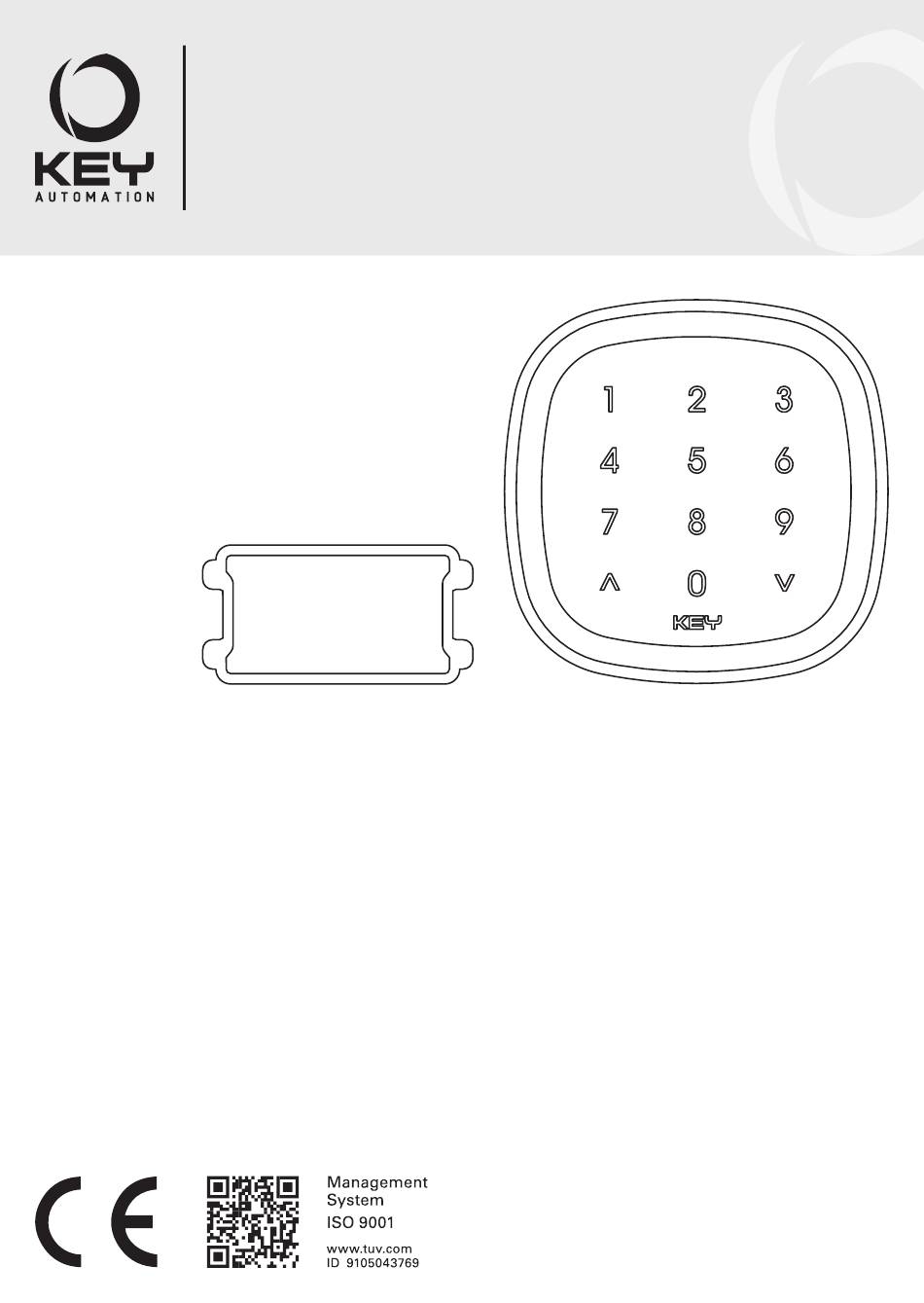

  • Page 1 Instrucciones y advertencias para su instalación y uso Anleitungen und Hinweise zu Installation und Einsatz Instruções e advertências para a instalação e utilização Instrukcje i zalecenia dotyczące instalacji i użytkowania EGKTB1 EGKD2 Tastiera touch via bus Touch keypad via bus Clavier tactile via bus Teclado táctil via bus...

  • Page 2: Introduction To The Product

    2 – INTRODUCTION TO THE PRODUCT TOUCH KEYPAD VIA BUS EGKTB1 is a keyboard with touch technology to be combined with the EGKD2 decoder using 2-wire PowerBUS technology. PowerBus is an integrated system that allows dialogue between different devices such as keyboards, window openers, lighting and alarm systems, photocells, etc.

  • Page 3: Preliminary Checks

    2.2 - CABLE TABLE LENGTH DESCRIPTION TYPE ≤ 4 m Multi-pole cable 2 x 0.35 mm2 FROHR 300/500 V > 4 - 50 m Multi-pole cable 2 x 0.35 mm2 FROHR 300/500 V Ribbon and braided shielded multi-polar cable 2 x 0.35 >...
  • Page 4 DESCRIPTION EXAMPLE COLOUR BEEP Start procedure pressing holding > 1 s simultaneously keys until the lighting on the sec. BLUE keyboard turns blue + > 1s Type the master code (unless it has already been changed) 1234 ORANGE Type the number of digits the code should consist of >...
  • Page 5 4.3.1 – CREATE USER CODES AND CHANGE THE OPERATION OF K1 AND K2 In the following example, the user code that will be created can only operate relay K1. DESCRIPTION EXAMPLE COLOUR BEEP Start the procedure by pressing and holding the simultaneously keys until the lighting on the BLUE...

  • Page 6: Accessory Configurations

    5 - ACCESSORY CONFIGURATIONS The following features allow to customise your keyboard experience; they are not password protected and are permanently stored. 5.1 – CHANGING THE COLOUR OF THE KEYBOARD DESCRIPTION COLOUR BEEP + > 1s Enter 0020 + > 1s Enter 0021 + >...
  • Page 7 6.2 – DELETION OF ALL CODES The operation deletes all user codes including the master code that will return to the preset value. The number of digits of which the codes are made of is not changed. The combinations of all devices remain unchanged.
  • Page 8 Il sottoscritto Nicola Michelin, Amministratore Delegato dell’azienda The undersigned Nicola Michelin, General Manager of the company Key Automation srl, Via Meucci 23 - 30027 San Dona’ di Piave (VE) – ITALIA dichiara che il prodotto tipo: declares that the product type:...
