- Page 1 860251-02 Rev. 6 P600HT-N Pizza oven Installation Operation Maintenance...
- Page 2 If you have any questions, or would like to report a fault, please contact your fitter or agent in the first instance, or contact BLODGETT BRANDS 42 ALLEN MARTIN DRIVE ESSEX JUNCTION, VT 05452 Tel. 802.658.6600 Fax. 802.864.0183 Web: www.sveba-dahlen.com www.blodgett.com The manufacturer reserves the right to make dimensional and design modifications Operation Maintenance Installation P600HT-N 860251-02...
-
Page 3: Table Of Contents
Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 Operation Maintenance Installation P600HT-N 860251-02... -
Page 4: Important
To avoid damages on the supply line, the restraint cable must be shorter than electrical connection line. Hot surface Operation Maintenance Installation P600HT-N 860251-02... -
Page 5: Assembly Of Legs And Pull-Out Shelves
Assembly of legs and pull-out shelves x2 shelves x4 rails x16 bolts M8x20, hot-dip galvanised x4 legs x2 rear wheels x44 screws 4.8x13, hot-dip galvanised x2 front wheels x4 stop plates 1225 Operation Maintenance Installation P600HT-N 860251-02... -
Page 6: Starting The Oven For The First Time
It is the user's responsibility to ensure that the machine is not put into use before it has been cleaned thoroughly. Operation Maintenance Installation P600HT-N 860251-02... -
Page 7: Introduction

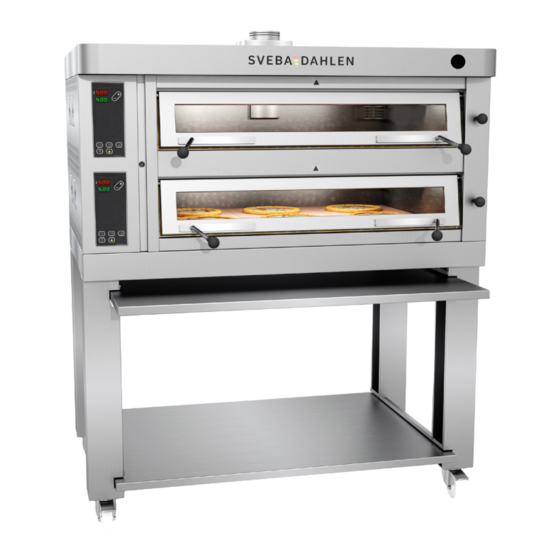

The P-Series high temp is available with one or two decks. The oven with two decks has one high temp deck and one deck for temperatures up to 6620F (3500C). -P601HT-N One deck high temp (up to 9320F (5000C)) -P602HT-N Lower deck: up to 6620F (3500C) Upper deck: up to 9320F (5000C) Operation Maintenance Installation P600HT-N 860251-02... - Page 8 Ø4,92” connection (Ø125mm) Cable 11,5 feet (3,5m) cables are included for all ovens. P601HT 3 / 230V Recommended fuse Power total 12,5kW Approx . weight lbs (kg) without stone with stone 565 (257) 660 (300) Operation Maintenance Installation P600HT-N 860251-02...
- Page 9 Ø4,92” connection (Ø125mm) Cable 11,5 feet (3,5m) cables are included for all ovens. P602HT 3 / 230V Recommended fuse Power total 25kW Approx . weight lbs (kg) without stone with stone 733 (333) 924 (420) Operation Maintenance Installation P600HT-N 860251-02...
-
Page 10: Product Description
There is also a glass fuse here (6,3A, 5x20mm) for illumination of the oven chamber. If the oven overheats, a miniature circuit breaker is tripped via the oven's overheat protector (see the section entitled Troubleshooting). Element Control Lighting Buzzer (only Premium) Operation Maintenance Installation P600HT-N 860251-02... - Page 11 Heating The oven has a built-in Turbo function which allows it to reach the set temperature in the shortest time possible. This function is enabled and disabled fully automatically if necessary. Operation Maintenance Installation P600HT-N 860251-02...
-
Page 12: Panel
Panel General description Increase/decrease button for temperature/power mode Actual temperature Temperature setpoint Button for power mode, front heat Button for power mode, top heat Button for power mode, bottom heat Panel on/off button Alarm button Operation Maintenance Installation P600HT-N 860251-02... - Page 13 The display for showing the temperature’s actual value is normally switched off and lights up for 4 seconds when the +/- buttons are pressed simultaneously. Continuous display, however, can be selected in the service menu. Operation Maintenance Installation P600HT-N 860251-02...
- Page 14 4. The display counts down the hours. When H00 is reached, the oven starts and is heated to the present temperature. 5. The start timer can be deactivated by pressing the ON/ OFF button again and holding it down for 10 seconds. Operation Maintenance Installation P600HT-N 860251-02...
- Page 15 Stb = Standby, oven ready to be started by the start timer. See Fig. 1 SEt = Setting of start and stop times. See Fig. 2 rtc = Setting of real-time clock. See Fig. 3 Fig. 1 Fig. 2 Fig. 3 Operation Maintenance Installation P600HT-N 860251-02...
- Page 16 3. Set the day of the week (day 1 = Monday) by pressing + / -. See Fig. 1 4. Set hours by pressing + / -. See Fig. 2 5. Set minutes by pressing + / -. See Fig. 3 Fig. 1 Fig. 2 Fig. 3 Operation Maintenance Installation P600HT-N 860251-02...
- Page 17 5. Switch to the next day by holding down the bottom heat button and changing by pressing + / - . To disable a start/stop time: increase the time until “--” appears in the display. 1 04 1 04 1 20 1 20 Fig. 1 Fig. 2 Operation Maintenance Installation P600HT-N 860251-02...
- Page 18 Energy saving mode is activated by setting a value greater than zero in P03. If any button is then pressed, the panel switches back to the pre- vious baking temperature set. P04: Energy saving temperature. 0-482F See P03. Operation Maintenance Installation P600HT-N 860251-02...
- Page 19 Contact an authorised service engineer one of the slave panels Check parameter “AC guard” in all slave panels Alarm, time for service Contact an authorised service engineer Replace panel Fault in parameter memory Internal test failed Replace panel Operation Maintenance Installation P600HT-N 860251-02...
- Page 20 Energy saving mode Energy saving mode is activated by setting a value greater than zero in P03. The oven switches automatically to a lower temperature if no button is pressed within a set time. Operation Maintenance Installation P600HT-N 860251-02...
-
Page 21: Baking Tips
During moderate and high intensive baking, the damper can be opened to release some of the steam formed during baking through the rear section of the oven, this reduces the steam that comes out through the door. During low intensive baking, the damper should be kept closed for the minimum energy consumption. Operation Maintenance Installation P600HT-N 860251-02... - Page 22 However, we recommend that you always start on max. 375 degrees until you have got to know the oven. 50% water 60% water 75% water Temperature 707°F 797°F 887°F Operation Maintenance Installation P600HT-N 860251-02...
-
Page 23: Troubleshooting
If any kind of problem occurs, you should first look through the troubleshooting list below to see whether you can rectify the fault yourself. If this does not help, please contact the Sveba Dahlen service department. Note: You are not permitted to work on electrical components yourself. This work must be undertaken by a qualified electrician. -
Page 24: Maintenance
2. Lay the entire unit, glass pieces with sealing rings and metal frame, on a clean table and, preferably, on something soft, e.g. a towel. Operation Maintenance Installation P600HT-N 860251-02... - Page 25 Use a soft brush to clean the cables and components in the electrical cabinet. Take care when using a vacuum cleaner in the electrical cabinet as this may generate static electricity which may destroy the electronics in the data panel. Operation Maintenance Installation P600HT-N 860251-02...
- Page 26 Use the tool supplied with the oven for ease of access to the hooks. When the hooks are detached, pull the LED straight out. Tool Hooks Install the new lamp by snapping it into the luminaire and connecting the plug. Operation Maintenance Installation P600HT-N 860251-02...
-
Page 27: Servicing
Follow this programme to ensure that your oven will continue to work well for a long time and continue to give you excellent results. Only original spares from Sveba Dahlen are to be used for servicing and repairs. Service programme...
