860159-02
Rev.13

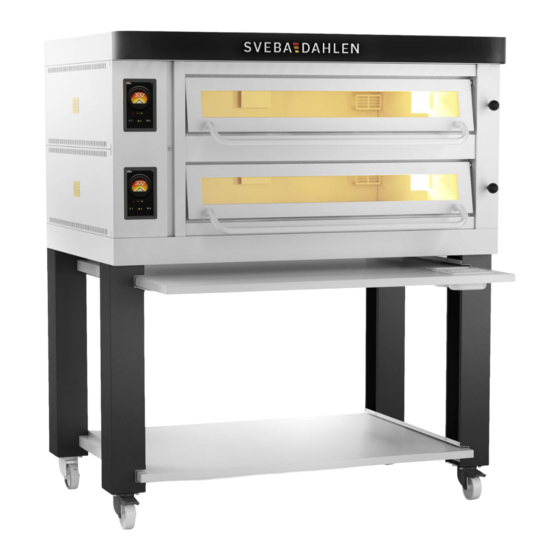

P-Series
Pizza oven P200 P400 P600 P800 P800D
Operation
Maintenance
Installation

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P Series and is the answer not in the manual?

Questions and answers

Related Manuals for Sveba Dahlen P Series

Summary of Contents for Sveba Dahlen P Series

  • Page 1 860159-02 Rev.13 P-Series Pizza oven P200 P400 P600 P800 P800D Operation Maintenance Installation...
  • Page 2 Type plate Power If you have any questions, or would like to report a fault, please contact your fitter or agent in the first instance, or contact SVEBA DAHLEN AB SE-513 82 FRISTAD, SWEDEN Tel. +46 (0) 33 15 15 00 Fax +46 (0) 33 15 15 99 Web: www.sveba-dahlen.com...

  • Page 3: Table Of Contents

    Contents Important . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Assembly of legs and pull-out shelves .

  • Page 4: Important

    Adjustments and repairs must be carried out by service engineers who are trained and authorised by SVEBA DAHLEN AB. Keep this manual in a suitably safe place. Be very careful when transporting the oven on castors as its centre of gravity is high and there is a great risk of it tipping over if it strikes any obstacles on the floor.

  • Page 5: Assembly Of Legs And Pull-Out Shelves

    Assembly of legs and pull-out shelves x2 shelves x4 rails x16 bolts M8x20, hot-dip galvanised x4 legs x2 rear wheels x44 screws 4.8x13, hot-dip galvanised x2 front wheels x4 stop plates P200 - - - P400 P600 1225 P800 1580 Operation Maintenance Installation P-Series 860159-02...

  • Page 6: Separate Decks

    Separate decks Operation Maintenance Installation P-Series 860159-02...
  • Page 7 Remove one layer isolation Turn counterclockwise to remove First remove electrical plug from panel and grounding wire. Then lift hinge pin up and remove panel door. Operation Maintenance Installation P-Series 860159-02...
  • Page 8 Same screw other view Lift up and take stones out to loose weight Same screw other view When this edge is free you Move 40 mm front can separate deck 20mm UP from backside Operation Maintenance Installation P-Series 860159-02...

  • Page 9: Starting The Oven For The First Time

    Starting the oven for the first time Before starting to use the oven, the oven must undergo a first burn so as to evaporate moisture in the hearthstones and any protective oil remaining in the oven chamber. This procedure will cause quite a lot of smoke from the oven, but this is completely normal. Therefore, ensure that the ventilation system on the premises is running and capable of removing the smoke.

  • Page 10: Introduction

    Introduction With its P-Series, Sveba Dahlen takes pizza making to a new level. This unique, well insulated solution with double tempered glass makes the oven extremely energy-efficient. This ensures economical baking for users. You can program the start and stop times for the entire week using the smart panel. This means that the oven will always be at the correct operating temperature when you start baking.

  • Page 11: Measurement Details

    Measurement details P-Series 201 Ventilation connection Electrical connection Height, door opening 140 mm Ventilation 100-125 m / hour, Ø125mm connection Cable 3 m cables are included for all ovens. 710 Inside Adapters are included for 3N / 400V & 3N / 415V Recommended fuses Voltage...
  • Page 12 P-Series 202 Ventilation connection Electrical connection Height, door opening 140 mm Ventilation 120-150 m / hour, Ø125mm connection Cable 3 m cables are included for all ovens. Adapters are included for 3N / 400V & 3N 710 Inside / 415V Recommended fuses Voltage 3N / 400V...
  • Page 13 P-Series 401, 601, 801, 801D Ventilation connection Electrical connection A Pull-out shelf Alternative electrical connection Height, door opening 140 mm Ventilation 100-125 m / hour, Ø125mm connection Cable 3 m cables are included for all ovens. Adapters are included for 3N / 400V & 3N / 415V Recommended fuses Voltage...
  • Page 14 P-Series 402, 602, 802, 802D Ventilation connection Electrical connection A Pull-out shelf Alternative electrical connection Height, door opening 140 mm Ventilation 120-150 m / hour, Ø125mm connection Cable 3 m cables are included for all ovens. Adapters are included for 3N / 400V & 3N / 415V Recommended fuses Voltage...
  • Page 15 P-Series 403, 603, 803, 803D Ventilation connection Electrical connection A Pull-out shelf Alternative electrical connection Height, door opening 140 mm Ventilation 150-200 m / hour, Ø125mm connection Cable 3 m cables are included for all ovens. Adapters are included for 3N / 400V & 3N / 415V Recommended fuses Voltage...

  • Page 16: Product Description

    Product description Approvals P-Series is CE-approved in accordance with the EMC Directive and the Low Voltage Directive. Structure The oven mainly comprises two parts, an oven section and a leg section. The leg section comprises four legs, each of which is secured to the base by means of four screws. P200 instead has short adjustable legs.
  • Page 17 Ventilation The ventilation holes around the oven must not be covered. If the oven is built into a wall, this space must be venti- lated so that the oven's electrical equipment is not damaged. The ambient temperature for the oven must not exceed 50 °C.

  • Page 18: Panel

    Panel General description Increase/decrease button for temperature/power mode Actual temperature Temperature setpoint Button for power mode, front heat Button for power mode, top heat Button for power mode, bottom heat Panel on/off button Alarm button Operation Maintenance Installation P-Series 860159-02...
  • Page 19 Oven off The panel shows OFF and all its functions are switched off. Starting the oven Start the oven by pressing the ON/OFF button. The displays come on. The oven lights come on. The oven section is heated to the set value. The display for showing the temperature’s actual value is normally switched off and lights up for 4 seconds when the +/- buttons are pressed simultaneously.
  • Page 20 Baking 1. Set the desired temperature. 2. To distribute the power between front, top and bottom heat, set the desired value by pressing the relevant button. Settings of 0-10 are equivalent to 0-100% power. The “temperature setpoint” display is used to indicate the set value.
  • Page 21 Weekly timer The timer has to be reset in the event of a power outage. The weekly timer first has to be activated in the service menu, parameter P02, for it to work. Settings are defined with the panel set to OFF. 1.
  • Page 22 Setting the real-time clock, “rtc” 1. Switch to “rtc”. 2. Switch between day, hour and minute by holding down the bottom heat button and changing by pressing + / - . 3. Set the day of the week (day 1 = Monday) by pressing + / -. See Fig. 1 4.
  • Page 23 Setting start and stop times, “SEt” 1. Switch to “SEt”. 2. When the + / - button is pressed, the top display switches from SEt and displays the start day and hour, while the bottom display shows the stop day and hour. 3.
  • Page 24 Parameter level 1 For service menu access for users. 1. Hold down the + / - buttons for temperature for 4 seconds, the parameter number is shown in the top display and the value is shown in the bottom display. 2.
  • Page 25 Alarm management The alarm symbol comes on when an alarm is triggered. Read the alarm from the bottom display by pressing the alarm symbol. The alarm symbol remains on as long as the alarm is active. INDICATION FAULT TYPE ACTION Fault in temperature sensor, left Check sensor and its connection Fault in temperature sensor, right...
  • Page 26 Turbo start The oven is fitted with an automatic turbo function. If the difference between the setpoint temperature and the actual temperature is greater than a value set in the service menu, all temperature outputs are fully connected for fast heating. The turbo function is deactivated when a baking programme is started or if the difference between the setpoint temperature and the actual temperature is less than the set value.

  • Page 27: Baking Tips

    Baking tips Baking in a stone oven is something of an art. In large measure, the challenge is in learning how the heat behaves in the stone, with its high thermal inertia, and, bearing this in mind, setting the oven and working in the right way. The oven is split into 3 heat groups.

  • Page 28: Troubleshooting

    If any kind of problem occurs, you should first look through the troubleshooting list below to see whether you can rectify the fault yourself. If this does not help, please contact the Sveba Dahlen service department. Note: You are not permitted to work on electrical components yourself. This work must be undertaken by a qualified electrician.
  • Page 29 Setting the acoustic signal 1. Remove the plug, or make the oven non-live in some other manner. 2. Unscrew the left-hand side plate. 3. Set the sound level by carefully turning the volume control. 4. Adjust the DIP switches to change the tone selection Standard tone = 27.

  • Page 30: Maintenance

    Do not use alkaline or abrasive detergents. Sveba-Dahlen has an excellent detergent, LAHEGA, item number 91430-009, for the stainless steel external surfaces. To discuss these detergents, contact Sveba Dahlen on tel. 033 15 15 00, fax 033 15 15 99, or send an e-mail to spareparts@sveba-dahlen.se.

  • Page 31: Servicing

    Follow this programme to ensure that your oven will continue to work well for a long time and continue to give you excellent results. Only original spares from Sveba Dahlen are to be used for servicing and repairs. Service programme...
  • Page 32 DOCUMENT EU- Declaration of conformity TRANSLATION (according to 2006/42/EC Annex 2A) Sveba Dahlen AB Manufacturer Company name Industrivägen 8 SE-513 82 FRISTAD Address Autorised person Ion Folea Name Sveba Dahlen AB Company name Industrivägen 8 SE-513 82 FRISTAD Address Declare under sole responsibilty that:...
