Summary of Contents for Ryobi RAPSG1

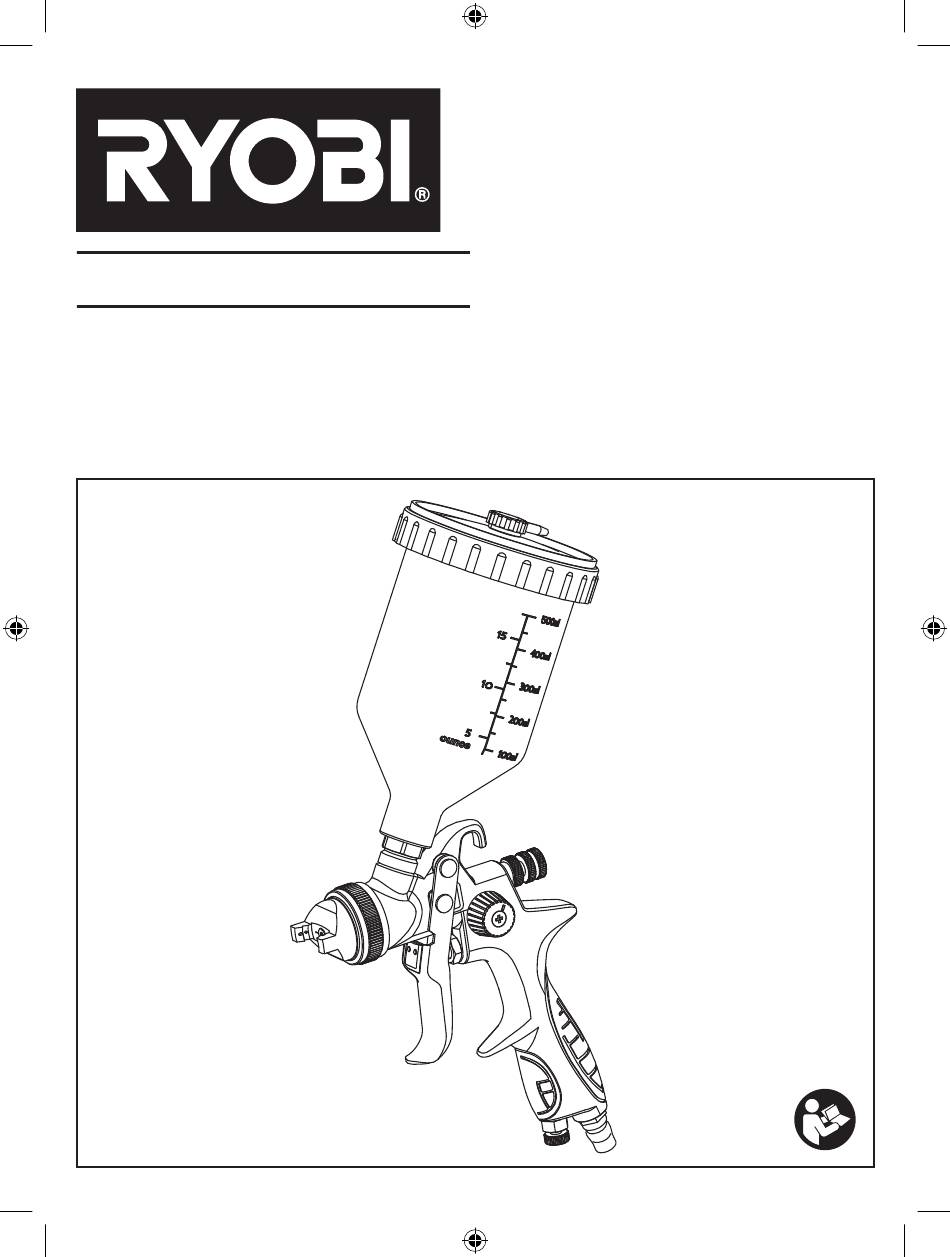

- Page 1 RAPSG1 / RAPSG2 600ML GRAVITY SPRAY GUN OPERATOR'S MANUAL ORIGINAL INSTRUCTIONS...
- Page 2 Important! It is essential that you read the instructions in this manual before assembling, operating, and maintaining the product. Subject to technical modifications.
- Page 3 DESCRIPTION 1. Air cap 9. NITTO style plug 17. 1.3mm needle (RAPSG2) 2. Variable trigger 10. Air cap nut 18. Paint 3. Air adjustment dial 11. Spare filter 19. Quick coupler (not included) 4. Paint pot vent cap 12. Cleaning brush 20.
- Page 4 Fig.7 Fig.8 Fig.9 Fig.10 Quick Quick connector connector Filter Tool compressor Cut-off valve Quick coupler Air hose Regulator (0-8.5 bar) Fig.11...
-
Page 5: General Safety Warnings
unexpected movement of the tool. GENERAL SAFETY WARNINGS ■ When using the product to perform work-related ■ For multiple hazards, read and understand the safety activities, the operator can experience discomfort in instructions before installing, operating, repairing, the hands, arms, shoulders, neck or other parts of the maintaining, changing accessories on, or working body. -
Page 6: Additional Safety Instructions For Pneumatic Power Tools
■ Use appropriate respiratory protection when using the wear breathing equipment and only work in well ventilated product. rooms or use supplementary ventilating equipment. It is advisable to wear working clothing, safety glasses, ear ■ Exposure to high noise levels can cause permanent, protection and gloves. -
Page 7: Specifications
Paint pot capacity 600 ml not operate this tool until the parts are replaced. Use of Nozzle size RAPSG1: 1.4 mm this product with damaged or missing parts could result in RAPSG2: 1.3 mm, 1.4 mm serious personal injury. WARNING! Do not attempt to modify this tool or... -
Page 8: Operation
AIR SUPPLY SET UP ■ As soon as paint flow from cup breaks, stop the timer. ■ If time is out more than 2-3 seconds either side, See figure 3. add reducer and test again until the recommended ■ Ensure the trigger is not depressed before connecting viscosity is achieved. -
Page 9: Changing The Filter
Paint adjustment CHANGING NOZZLE AND NEEDLE See figure 5. See figure 8 - 9. ■ The paint adjustment dial is a stop that limits the To remove nozzle and needle: distance the trigger can be pressed and therefore ■ Disconnect the product from the air supply before limits the amount of paint being sprayed. -
Page 10: Maintenance
STORAGE Please read the instructions carefully before ■ When the spray gun is not in use, turn the paint starting the product. adjustment knob counterclockwise to open. This will reduce spring tension on the needle fluid tip. ■ The spray gun must be well cleaned and lightly Wear eye protection. -
Page 11: Troubleshooting
TROUBLESHOOTING PROBLEM CAUSE SOLUTION The product will not start. 1. Compressor is not turned on. 1. Turn compressor on. 2. Air line is not connected properly. 2. Check that air line is connected 3. Fluid control is not open enough. properly. -
Page 12: Parts List
PARTS LIST Description Description Description Description Air adjustment screw Direction screw Trigger lever I Fluid adjustment knob Air adjustment knob Circlip Trigger lever II Phillips screw O-ring 2.5x2.1 Trigger Pattern adjustment. Washer Fluid cap washer Snap retainer Pattern adjustment knob Air valve spring Atomisation Washer... - Page 16 31 Gilby Road, Mount Waverley VIC, 3149, Australia Techtronic Industries N.Z. Limited RYOBI is a trade mark of Ryobi Limited, and is used under license. Unit C, 70 Business Parade South NITTO is a registered trade mark owned by Nitto Kohki Co., Ltd.
