SKYDANCE SS-C Quick Start Manual

SS-C(WT)
WiFi & RF Relay Switch
● WiFi & RF relay switch,10A dry contact main rated relay output, zero cross switching function.
● Tuya APP cloud control, support on/off, delay turn on/off and timer run function.
● Voice control, support Amazon Alexa, Google Assistant, Tmall Genie, Xiaodu voice assistant.
● Compatibility with RF 2.4G remote control
● Connect with external push switch optional.
● High-inrush specification relay.
● Each SS-C(WT) relay switch can also work as WiFi-RF converter,
then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously.
● Easy to be placed in standard wall junction box behind a push switch.
Technical Parameters
Input and Output
AC100-240V
Input voltage
Input current
0.02A
Relay contacts single-pole, single-throw (SPST) relay
10A resistive load(incandescent lamp)
Max relay
8A capacitive load(LED dimming lamp)
load current
6A inductive load(fluorescent lamp)
Input signal
WiFi + RF 2.4GHz + AC Push switch
30m(Barrier-free space)
RF control distance
Mechanical Structures and Installations
A2 A1
MATCH/SET
100-240
VAC

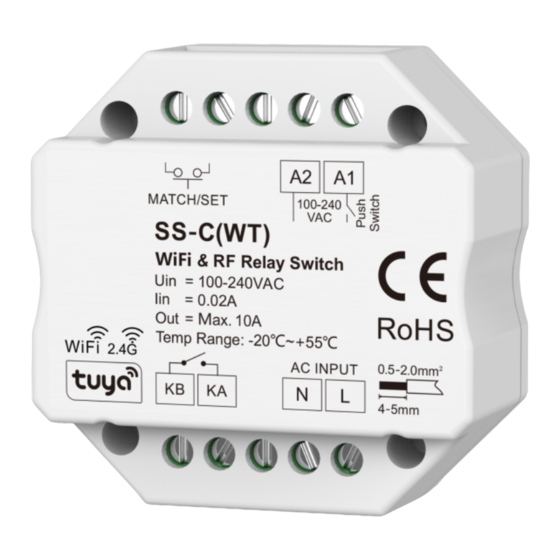

SS-C(WT)
WiFi & RF Relay Switch
Uin = 100-240VAC
Iin = 0.02A
Out = Max. 10A
Temp Range: -20℃~+55℃
AC INPUT
N L
KB KA
Typical Wall Junction Box Mounting:
User Manual Ver 1.0.0
2024.3
.
Environment
Operation temperature
Case temperature (Max.)
IP rating
Package
Size
Gross weight
Match/Set key
AC push
switch input
AC N input
AC L input
RoHS
0.5-2.0mm²
4-5mm
Dry contact output
Safety and EMC
O O
Ta: -20 C ~ +55 C
EMC standard (EMC)
Tc: +65 O C
Safety standard
IP20
Radio Equipment (RED)
Certi cation
Warranty
L60
x W60 x H40mm
Warranty
0.074kg
52.00 mm
AC Switch
RED
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
EN 62368-1:2020+A11:2020
ETSI EN 300 328 V2.2.2
CE, EMC, LVD
5 years
26.00 mm
