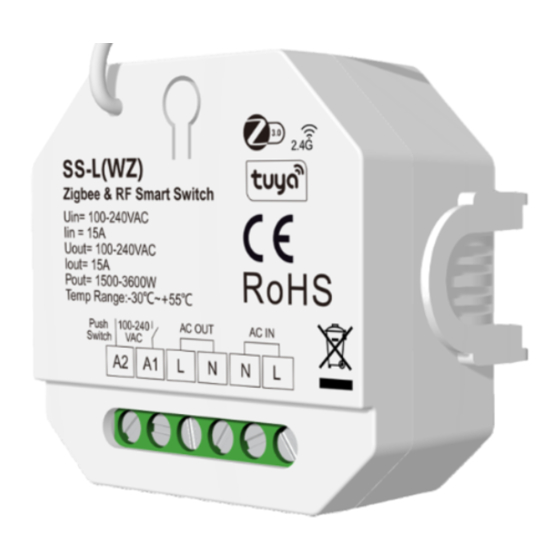

ZigBee & RF Smart AC Switch
ModelNo.:SS-L(WZ)
Tuya APP cloud control /
Voicecontrol /
Features
● RF + ZigBee smart AC switch, without dimming function.
● To switch single color LED lamps, traditional incandescent and halogen lights.
● Tuya APP cloud control, support on/off, delay turn on/off light and timer run function.
● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie
and Xiaodu smart speakers.
● Compatibility with
RF 2.4G dimming remote control
● Each SS-l(WZ) controller can also work as ZigBee-RF converter,
then use Tuya APP to control one or more RF switch or controller synchronously.
● Connect with external push switch optional.
● High-inrush specification relays (normally open).
Technical Parameters
Input and Output
Input voltage
AC100-240V
Output voltage
AC100-240V
15A (Resistive load)
Outputcurrent
10A(inductive load)
Output power
1500-3600W
Relay surge current
120A (20ms)
Tuya APP+ Pushswitch + RF 2.4GHz
Input signal
RF Control distance
30m(Barrier-free space)
MechanicalStructuresandInstallations
Push
100-240
Switch
VAC
A2
A1
Push swich input
Installation method
Note:
1. The installation must be installed or removed by a professional electrician.
2. Please keep the device out of the reach of children.
3. Please keep away from water, humid or hot environment.
4. The device should be kept away from strong signal sources (such as microwave ovens)to avoid signal interruption and cause the device not to work properly.
5. Avoid placing the device close to or near high-density materials (such as metal, concrete walls, etc.), which will reduce or block the wireless signal.
User Manual Ver 1.0.0
Push onoff / Relay output / Zero-crossing detection
.
Safety and EMC
EMC standard(EMC)
Safety standard
Radio Equipment(RED)
Certification
Warranty
Warranty
Match/set
AC OUT
AC IN
L
N
N
L
ACLinput
ACNinput
ACNoutput
ACLoutput
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
EN 62368-1:2020+A11:2020
ETSI EN 300 328 V2.2.2
CE,EMC,RED
5 years
56.00 mm
Installation clip
1
Environment
Operation temperature
O
Ta: -30
C ~ +55
O
Tc: +85
Case temperature (Max.)
IP rating
IP20
Package
Size
L60x W60 x H40mm
Gross weight
0.061kg
56.00 mm
56.00 mm
25.00 mm
RED
O
C
C
