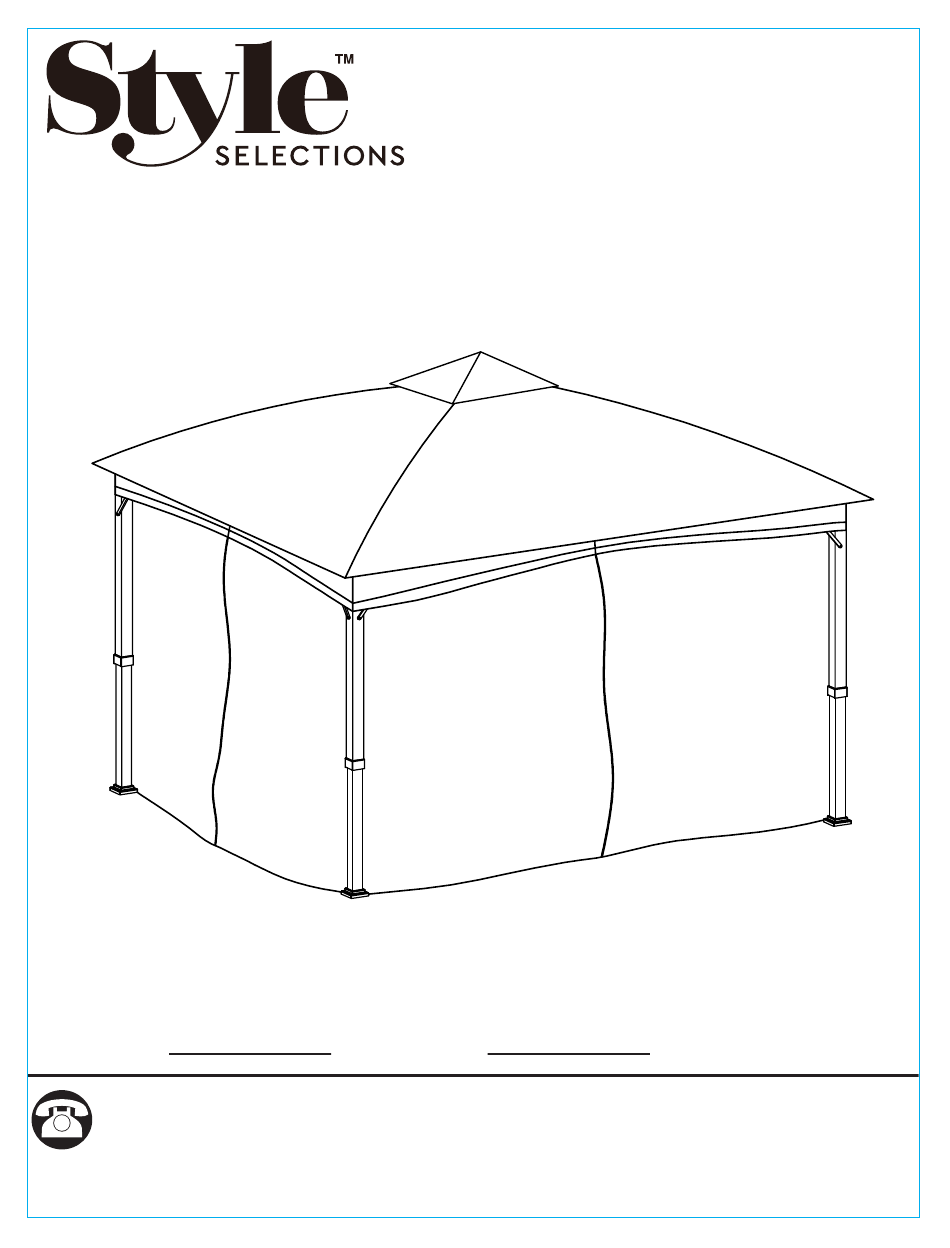

STYLE SELECTIONS and logo design
are trademarks or registered trademarks
of LF, LLC. All rights reserved.
Serial Number
Questions, problems, missing parts? Before returning to your retailer, call our
customer service department at 877-888-8225 , 8 a.m. - 8 p.m., EST, Monday - Sunday.
You may also contact us anytime at ascs@lowes.com..
SS23656
12X10 Soft Top Gazebo
Purchase Date
1
ITEM #5466081
MODEL #GFS60055B
ATTACH YOUR RECEIPT HERE
Advertisement
Table of Contents
Related Manuals for Style selections GFS60055B
Summary of Contents for Style selections GFS60055B
- Page 1 ITEM #5466081 12X10 Soft Top Gazebo MODEL #GFS60055B STYLE SELECTIONS and logo design are trademarks or registered trademarks of LF, LLC. All rights reserved. ATTACH YOUR RECEIPT HERE Serial Number Purchase Date Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 877-888-8225 , 8 a.m.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................4 Safety Information..........................4 Preparation............................6 l l a ...... -
Page 3: Package Contents
PACKAGE CONTENTS PART PART DESCRIPTION QUANTITY Post Foot Plate Cover Foot Plate Fold Beam 1 Fold Beam 2 Short Cloth Pipe Long Cloth Pipe Clothing Card Umbrella Frame Corner Rafter Middle Rafter 1 Middle Rafter 2 48+8 Hanging Hook Canopy Second Tier Canopy Netting... -
Page 4: Hardware Contents
HARDWARE CONTENTS (shown actual size) M6x15mm M6x15mm M6x25mm M6x65mm Bolts Bolts Bolts Bolts Qty. 32+2 Qty. 12+1 Qty. 12+1 Qty. 16+1 Stake Hex key Qty. 8+1 Qty. 2 SAFETY INFORMATION WARNING To reduce the risk of serious injury, read the following safety instructions before assembling and using the gazebo. - Page 5 SAFETY INFORMATION DANGER This unit is heavy! Do not assemble this item alone. CAUTION Always keep children under close supervision while they are using or around this product. Never leave children unattended. Do not climb on top of the gazebo. Falling off the gazebo can result in serious injury, possibly even death.
-
Page 6: Preparation
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 1 Hour Additional time to install hangers on porch or structure modifications. - Page 7 ASSEMBLY INSTRUCTIONS First, use M6 x 15 mm bolts (AA) to fix fold beam 1 (D1) on post (A), then expand the support on fold beam 1 (D1), and use to fix M6 x 25 mm bolts (CC) post (A). Hardware Used M6 x 15 mm Bolts M6 x 25 mm Bolts...
- Page 8 ASSEMBLY INSTRUCTIONS The umbrella frame (G) is first propped open and then secured with a latch. First insert the ends of corner rafter (H1) or middle rafter 1 (H2) or middle rafter 2 (H3) into the umbrella frame (G) as shown. The silver push buttons on parts (H1 or H2 or H3) should make an audible click and protrude from the holes of the umbrella...
- Page 9 ASSEMBL Y INSTRUCTIONS Fix the four corners of second tier canopy (J2) to the top piece of the second floor Fix canopy (J1) on corner rafter (H1), middle rafter 1 (H2) and middle rafter 2 (H3), and then fix the middle and four corners of the hanging edge with a adhesive.
- Page 10 ASSEMBL Y INSTRUCTIONS 12 . . First load hanging hook (I) into netting (K), and then buckle the loaded hanging hook (I) into short cloth pipe (E1) and long cloth pipe (E2). Finally, lift foot plate cover (B) and fix stake (EE) to the ground.
-
Page 11: Care And Maintenance
CARE AND MAINTENANCE Be careful to never allow water to build up in frames as this will cause corrosion and freeze damage in cold climates. Wash all frames with a solution of mild soap and water, Rinse with clean water and dry with a soft absorbent cloth towel. Frames can be treated with a liquid wax for maximum protection against UV rays and/or salty, damp air. - Page 12 WARRANTY OR IMPLIED INCLUDING THOSE OF RETAILING DEALERS.THIS EXCLUSIVE REMEDY IS LIMITED TO RECEIPT OF A CREDIT IN CONNECTION WITH THE REPAIR OR REPLACEMENT OF ANY PRODUCT OR COMPONENT DEEMED TO BE DEFECTIVE UNDER THE TERMS AND CONDITIONS AS STATED IN THIS WARRANTY. NEITHER THE PRODUCT MANUFACTURER NOR ITS AGENTS SHALL BE LIABLE IN ANY CASE FOR INCIDENTAL, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF THIS WARRANTY OR NEGLIGENCE EVEN IF IT HAS BEEN ADVISED...
