Summary of Contents for BSS Audio Soundweb 9008

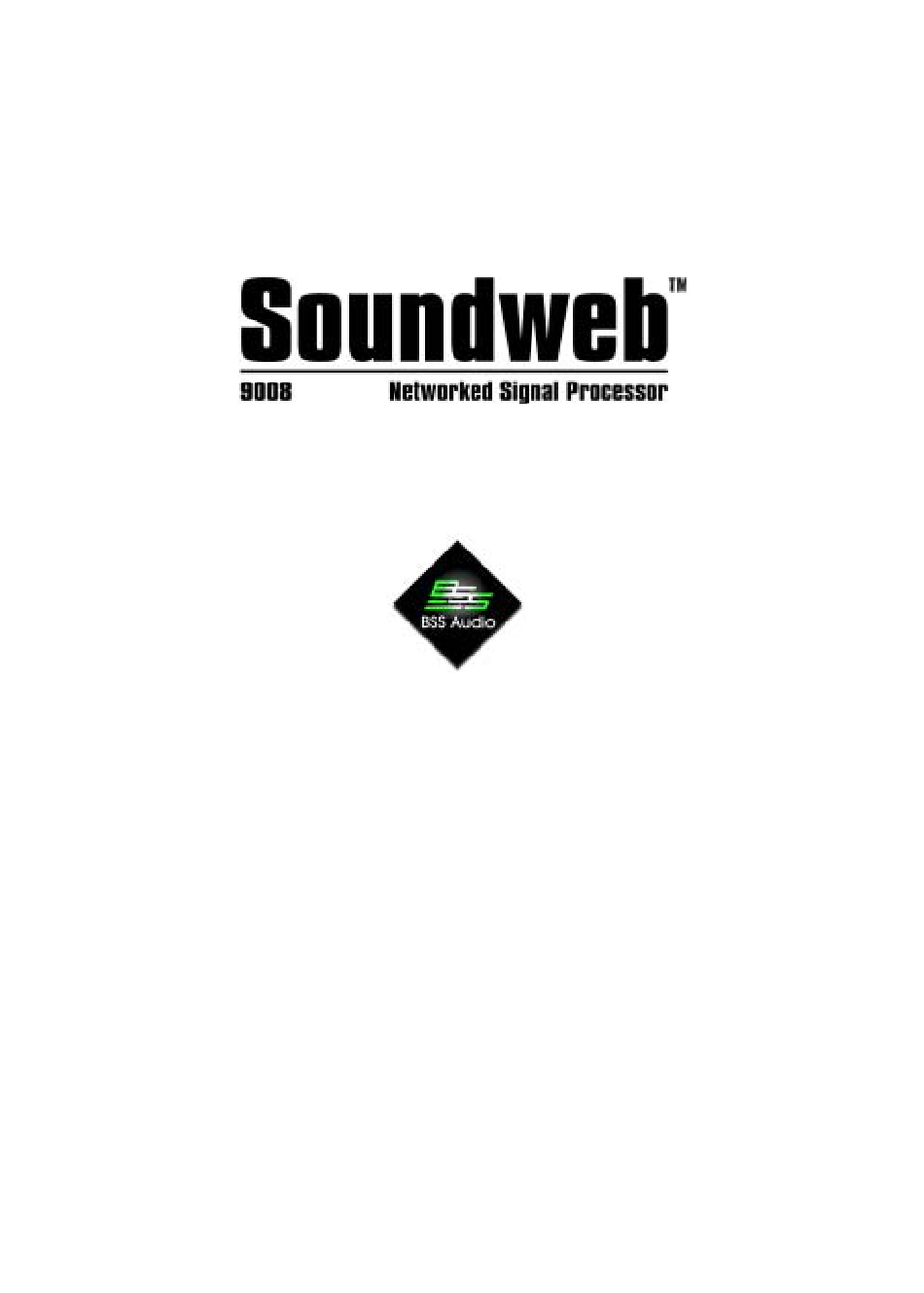

- Page 1 Installation Guide...
- Page 2 It should not be necessary to remove any protective earth or signal cable shield connections to prevent ground loops. Any such disconnections are outside the recommended practice of BSS Audio and will render the EMC or safety certification void. Mechanical Installation...
- Page 3 9008 Installation Guide .ront Panel LED .unctions DSP Clip Illuminated Network Flashing = the network is initialising. If the led continues to flash for more than a few seconds, there is a cabling fault - either a double ring error or a problem with one of the cable connectors. Steady = this unit has become the clockmaster for the network.
- Page 4 9008 Installation Guide Rear Panel Details Mains inlet Mains fuse holder Audio & Control connectors Audio Output wiring convention input output Balanced Balanced connection 9008 connection...
- Page 5 9008 Installation Guide Network In/Out back There must be no physical cable connection between the two end devices. Aux. RS232...
- Page 6 9008 Installation Guide CONTROL INPUTS 2-wire mode 3-wire mode linear potential divider LOGIC OUTPUTS OPTO Output...
- Page 7 9008 Installation Guide Control Inputs and Logic Outputs connection diagram 47kOhm 10K-100kOhm linear potentiometer potentiometer unconnected ladder ladder switch switch 2 wire mode 3 wire mode +supply voltage relay relay ground...
- Page 8 9008 Installation Guide 9008 Technical Specifications General Control Ports...
