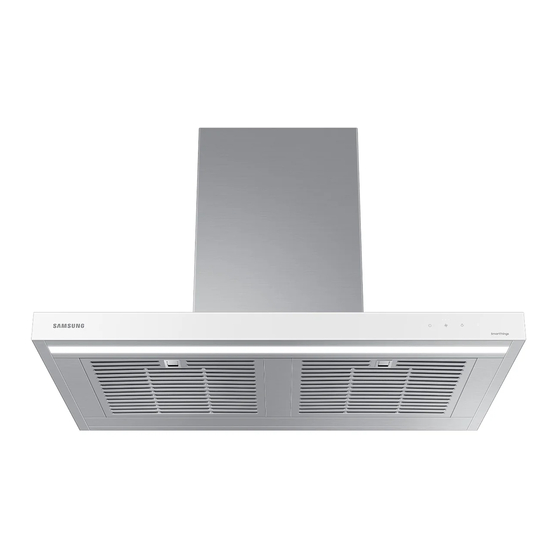

- Page 1 Range Hood Installation & User Manual NK36CB665W**...
-
Page 2: Table Of Contents
Contents Bixby Important Safety Instructions Amazon Alexa & Google Assistant Installation Guide Installation Cleaning and Maintenance Installation Requirements Cleaning the range hood General Specifications Cleaning the Filters Mounting Height Replacing the LED Lamp Venting Methods Parts List SmartThings app Sub-Parts List Additional Purchase Accessories Open Source Announcement Needed Parts list (Not Supplied) -
Page 3: Important Safety Instructions
Important Safety Instructions Symbols used in this manual • It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure WARNING it is together with the product. Hazards or unsafe practices that may result in severe personal •... - Page 4 Important Safety Instructions • The hood must be regularly cleaned on both the inside and CAUTION outside (AT LEAST ONCE A MONTH). • This appliance is not intended for use by persons (including • This must be completed in accordance with the maintenance children) with reduced physical, sensory or mental instructions provided.
- Page 5 WARNING WARNING Do not use with a programmer, timer, separate remote control Range hoods and other cooking fume extractors may adversely system or any other device that switches on automatically. affect the safe operation of appliances burning gas or other fuels (including those in other rooms) due to back flow of WARNING combustion gases.
-
Page 6: Installation
• For information on Samsung's environmental commitments household waste. Instead it should be taken to the appropriate and product specific regulatory obligations e.g. REACH, collection point for the recycling of electrical and electronic WEEE, Batteries, visit : samsung.com/uk/aboutsamsung/... - Page 7 Electrical connection For the most efficient and quietest operation: • Use no more than three 90° elbows. CAUTION • Make sure there is a minimum of 60 cm of straight vent The mains power supply must correspond to the rating between the elbows if more than one elbow is used. indicated on the plate situated inside the hood.
-
Page 8: Installation Requirements
Installation Requirements General Specifications Mounting Height CAUTION 28.5 cm 34.8 cm • Be sure to check the mounting height before installing the product. • The mounting height is measured from the top of the range to the upper cabinets. The mounting height for an electric cooking surface is measured from its glass cooktop as shown in the image on the left. -
Page 9: Venting Methods
Venting Methods Parts List Roof Venting Roof Venting Wall Venting Wall Venting (Recirculating) (Recirculating) User & Installation Template for Hood Mounting manual (1) Installation (1) Bracket (1) Duct Cover Mounting Damper (1) Damper Adapter (1) Bracket (1) Upper Duct Cover (1) Lower Duct Cover (1) 5 mm Magnet (2) Filter Support Cable * (2) -
Page 10: Sub-Parts List
Installation Requirements Sub-Parts List Installation Clearances Upper furniture Dimension Min : 90.0 cm Min : 29.0 cm 6 × 130 mm 6 × 30 mm 4 × 10 mm Screw Anchor (2) Screw Anchor (7) Hood Fixing Screw (10) 22 mm Washer (4) NOTE Install the product by using the included accessories and materials appropriately and according to the installation environment and conditions. -
Page 11: Making A Hole In The Furniture
Making a hole in the furniture Duct hole guide_Op.2 Cabinet floor drilling work: hood exhaust outlet (damper) cutting work Duct hole guide_Op.1 Cabinet floor drilling work: hood exhaust outlet (damper) cutting work Rear (Wall) Furniture's Center Line Rear (Wall) Furniture's Center Line Max 0.5 cm Duct Cutting Area... -
Page 12: Installation
Installation Setting the Location Connecting the Vent System ≥ 60 cm 130 mm Screw Anchors (2 pcs.) or 30 mm Screw Anchors (2 pcs.) and Washers (2 pcs.) 12 English... -
Page 13: Installing The Range Hood
Installing the Range Hood Installing the Venting Type 10 mm Hood Fixing Screw (2 pcs.) Upper Duct 30 mm Screw Anchors (2 pcs.) NOTE Magnets are included in the accessory box. 15.2 cm 30 mm Screw Anchors (2 pcs.) CAUTION •... -
Page 14: Connect The Filter Support Cable
Installation Connect the filter support cable NOTE The magnet must be attached to the Upper Duct upper line of the lower duct. Lower Duct 10 mm Hood Fixing Screw (4 pcs.) 14 English... -
Page 15: Installing The Recirculation Kit
Installing the Recirculation Kit NOTE Same process until No. 10 Upper Duct • Assemble the air deflector with the duct cover Duct Cover Mounting mounting bracket with the four assembly Bracket screws provided with the Recirculation Kit. NOTE • Use of recirculation type hoods in closed spaces may cause poor ventilation performance. -
Page 16: Installation Of The Charcoal Filter Kit
Installation Installation of the charcoal filter kit NOTE The magnet must be attached to the Upper Duct upper line of the lower duct. Lower Duct 10 mm Hood Fixing Screw (4 pcs.) 16 English... - Page 17 WARNING Be sure to use an outlet with a ground terminal for safety. This can prevent the risk of electric shock, fire, or malfunction. If the outlet does not have a ground terminal, purchase a separate grounding wire and connect it to the grounding line. CAUTION Do not ground on gas pipes, water pipes, telephone lines, etc.
-
Page 18: Using The Range Hood
– Delay off mode can be activated on the SmartThings app. – Filter usage time can be checked on the SmartThings app. – The range hood can be operated through automations with registered Samsung products on the SmartThings app. 03 Light button •... -
Page 19: Max Mode
Max mode Wi-Fi On/Off Max mode is a function that allows powerful This feature turns the product's Wi-Fi on or off. exhaust for a short time. • Press the button for 5 seconds. Press the button again for 5 seconds to 1. Press the button for 3 times. -
Page 20: Entering Ap (Access Point)
Using the Range Hood Entering AP (Access Point) Delay off 1. Press the button for 5 seconds as instructed in the app. Delay off is a function that vents the remaining pollutants in the kitchen after cooking and operates after the hood is turned off. •... -
Page 21: Error Indication
Error indication Bixby • Bixby is the name of Samsung's artificial intelligence solution which makes it possible to • When a product error occurs, all LEDs on the control the product through voice. button blink. • To use the voice recognition function, you need to connect the SmartThings app and the •... -
Page 22: Cleaning And Maintenance
Cleaning and Maintenance Cleaning and Maintenance Cleaning the range hood Cleaning the Filters Wipe the front of the product with a soft cloth soaked in neutral liquid detergent. 1. Please remove the filter at the bottom of the hood. CAUTION CAUTION •... -
Page 23: Smartthings App
SmartThings app via Wi-Fi, 3G, LTE, 5G or other wireless To create a Samsung account and log in networks. If the Wi-Fi disconnects, please follow the instructions in the Samsung SmartThings app via to your account, follow the instructions 1. -
Page 24: Open Source Announcement
Select protocol. (Samsung recommends to the product. IEEE802.11n.) • If a Samsung account-related country You can add a product you want to connect • If your Internet service provider has to by selecting it manually or by selecting error occurs while connecting to permanently registered the MAC "Scan."... -
Page 25: Troubleshooting
EEPROM Read or Write plug for more than 30 seconds. General is not working. Allow the product to cool and restart it. If it is not resolved, please contact a Samsung Problem Cause Action If you need to check the C163 Electronics Service Center. -
Page 26: Technical Specifications
Noise Level (dB) (IEC 60704-2-13) NOTE Hereby, Samsung declares that this radio equipment is in compliance with Directive 2014/53/ EU and with the relevant statutory requirements in the UK. The full text of the EU declaration of conformity and the UK declaration of conformtiy is available at the following internet address: The official Declaration of conformity may be found at http://www.samsung.com. - Page 27 Memo...
- Page 28 MACAU 0800 333 1-800-10-7267864 [PLDT-Toll Free] www.samsung.com/hk_en/ PHILIPPINES www.samsung.com/ph/support 1-800-8-7267864 [Globe-Toll Free] support(English) 84222111 [Landline ] SINGAPORE 1800 7267864 | 1800-SAMSUNG (Other) www.samsung.com/sg/support JAPAN 0120-363-905 www.samsung.com/jp/support AUSTRALIA 1300 362 603 (Other) www.samsung.com/au/support 1800 5 SAMSUNG (1800 5 7267864) (Toll-Free) NEW ZEALAND 0800 726 786 (All Product) www.samsung.com/nz/support...
