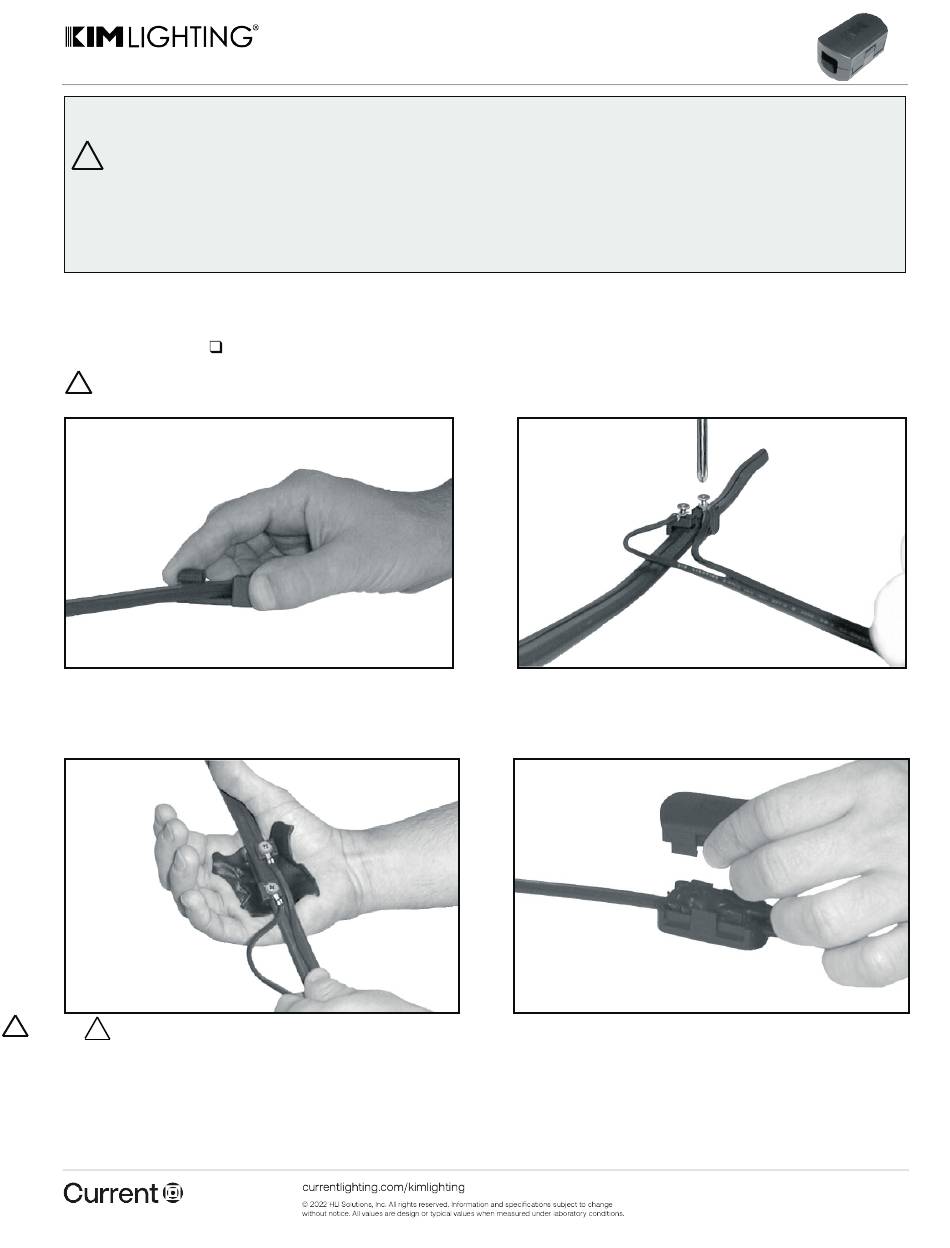

KLV410 Sealed Connector Installation Instructions
INSTRUCTIONS PERTAINING TO A RISK OF A FIRE, OR INJURY TO PERSONS
!
WARNING: Do not exceed the maximum connector capacity of 75 watts (6.25 amps) per fixture connection,
and never connect two transformers together in an attempt to exceed 250 watts (21 amps) on one run.
Doing so will overheat the connectors creating a dangerous and unsafe condition. Use KLV411 for Branch
Connections and multiple fixtures.
KEEP THIS SHEET FOR FUTURE REFERENCE.
KLV410 Sealed Connector: For connecting one low voltage fixture to a (#8-2 or #12-2) main cable. Connector
may be buried or remain above grade.
Tools Required:
Phillips Screwdriver
!
Make certain the electrical supply is OFF.
1. Select correct size connector for cable.
Centerand twist to lock in place.
3.
Turn OFF electricity.
!
mold dielectric sealing compound around
connector to prevent moisture entry.
Stretch, wrap and
2. Install self-threading screws. Place fixture cable
fork connectors under screw heads and tighten.
Test connectors before Step 3.
4. Snap cover around connection.
KLV410
Page 1 of 2
(Rev 18/08/22
