AW400BT
UHF Modem
Operator's Manual
Version 2.0
Last Revised January 31, 2014
All contents in this manual are copyrighted by ArWest Communications.
All rights reserved.The information contained herein may not be used, accessed, copied,
stored, displayed, sold, modified, published, or distributed, or otherwise reproduced without express written
consent from ArWest Communications

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JAVAD AW400BT and is the answer not in the manual?

Questions and answers

Ali
July 21, 2025

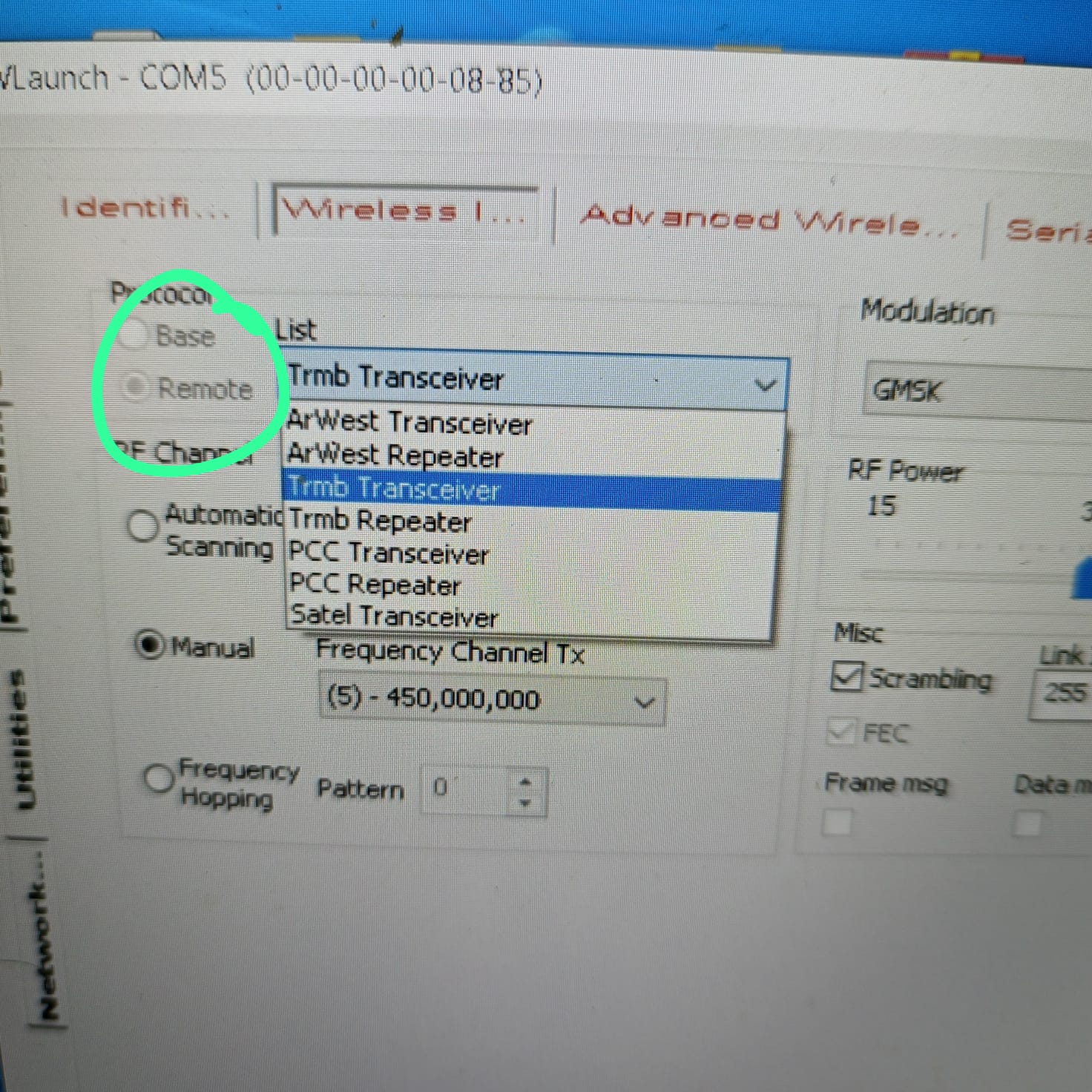

Helo Arwest experts, My Arwest modem is set to Remote and cant be changed to base,it is not allowed to change
