Driveway Alert Alarm Instruction Manual
Summary
● Strong anti-interference performance
● The full range of fine temperature compensation
● CE, FCC and ROHS compliant
Specification
● Power Supply (Receiver): DC 6 V or 1.5 V C Battery x 3
● Power Supply (PIR Transmitter): DC 4.5 V (1.5 V AAA Battery x 3 )
● Working Current (Receiver Alarming): <180mA
● Working Current (Receiver Chiming): <200mA
● Working Current (PIR Transmitter): <15mA
● Quiescent Current (Receiver): <400uA
● Quiescent Current(PIR Transmitter): <50uA
● Sensing Angle: 45°
● Sensing Distance: 5–8 m
● Ring Volume: ≥100dB ( within 0.5 m)
● Reception Sensitivity: ≥- 85dBm
Accessories List
● 2 x PIR Transmitters
● 4 x Wall Plugs

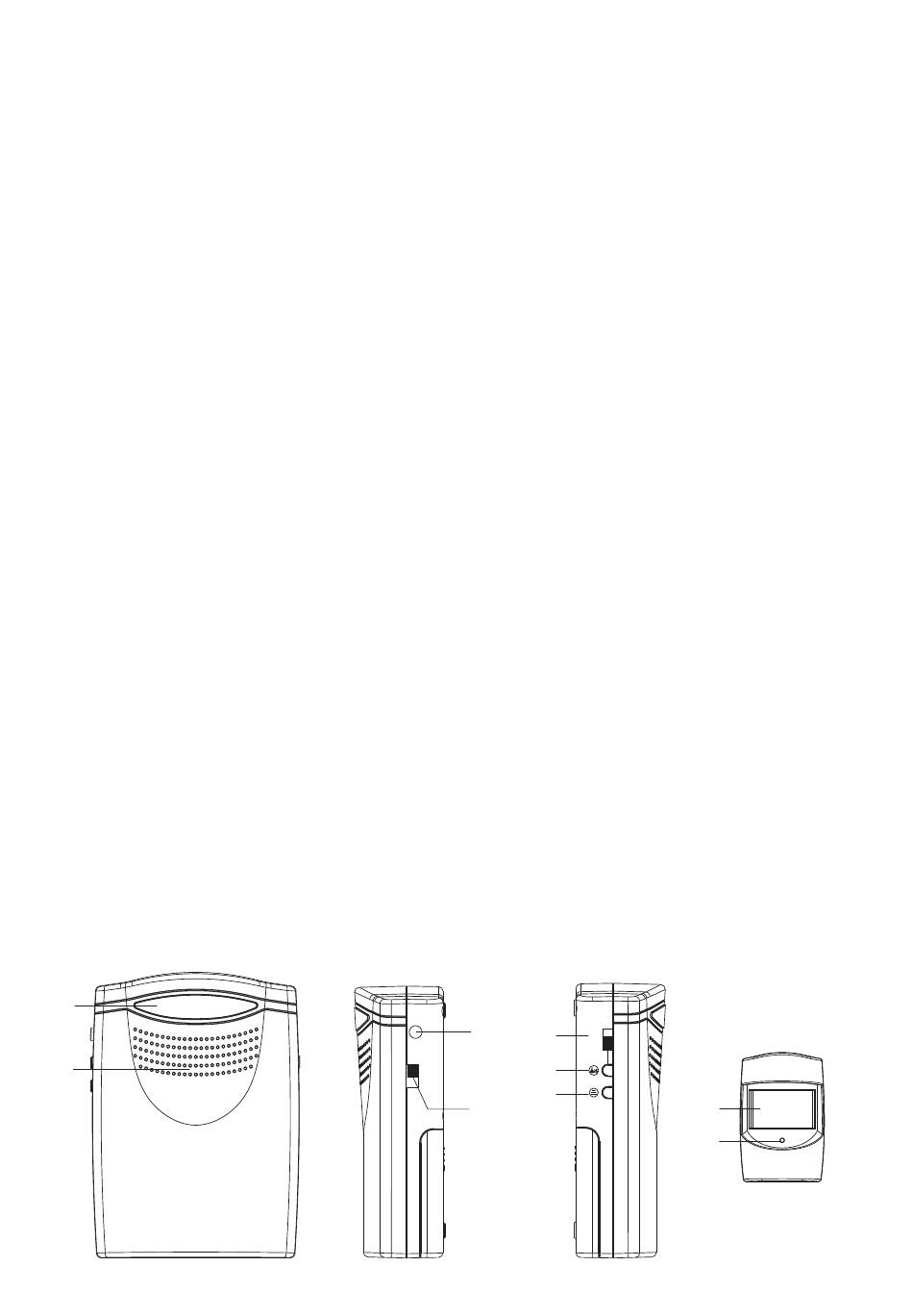

Names for Parts
(1) LED Indicator
(4) Switch for Chime, Low, Alarm
(7) Auto-learning Code Button
(1)
(2)
Model No.: QH-9821A-2T
● 1 x Receiver
● 4 x Screws
(2) Speaker
(5) On/Off Switch
(8) PIR
(3)
CHIME
LOW
ALARM
(4)
1
● 1 x Instruction Manual
(3) DC 6V Input Jack
(6) Sound-and-Flash Switch Button
(9) LED Indicator
(5)
ON
OFF
(6)
(7)
(8)
(9)
