Eleiko Prestera 3085879 Manual

Container rig 4, 5 & 2 section
Hide thumbs Also See for Prestera 3085879:

Advertisement

Quick Links

Prestera Container Rig
4, 5 & 2 section

Advertisement

loading
Need help?

Need help?

Do you have a question about the Prestera 3085879 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eleiko Prestera 3085879

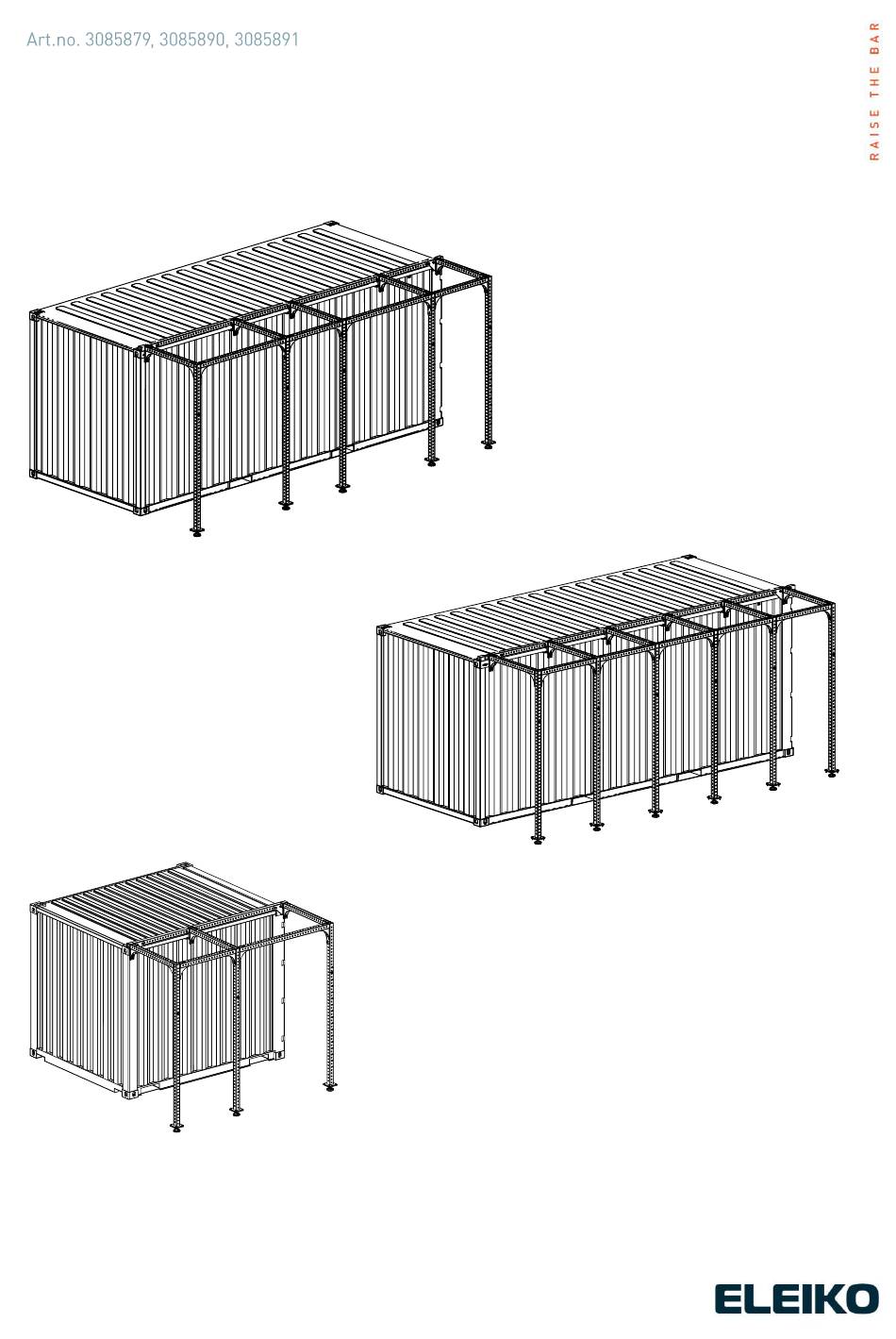

  • Page 1 Prestera Container Rig 4, 5 & 2 section...
  • Page 3 Content...
  • Page 4 Read before installation and use...
  • Page 5 Preventive Maintenance & Inspections...
  • Page 6: Product Info

    Product Info...
  • Page 7 User Guide Wrench Size 24 mm Wrench Size 13 mm Socket Wrench Size 24 mm Hex Key size 6 Measuring Tape Spirit Level...
  • Page 8 2 st 3 mm 1 st 6 mm 2 st 10 mm...
  • Page 9 Bracket Inside Corner Corner Left...
  • Page 10 End Brackets are marked left/right on the surface that is facing the container. Tightening torque 80 Nm / 59 ftlb. Insert screws before bracket is mounted to side member.
  • Page 11 Measure the container and choose the right amount of spacers for your installation. 0 – 30 mm The table below is for reference only. If necessary, adjust the height to get the square tubes parallel to the container.
  • Page 12 Insert screws before bracket is mounted to side member. Make sure there is no gap between the tube and the T Connection.
  • Page 13 The L-Plate will tighten connection and container together. Choose a suitable hole pattern to get the plate in correct position. M6S M16x120 Tightening torque 80 Nm / 59 ftlb Repeat step 4 and 5 for all T-Connection´s and then proceed to page 22.
  • Page 14 End Brackets are marked left/right on the surface that is facing the container. Tightening torque 80 Nm / 59 ftlb Insert screws before bracket is mounted to side member.
  • Page 15 Measure the container and choose the right amount of spacers for your installation. 0 – 30 mm The table below is for reference only. If necessary, adjust the height to get the square tubes parallel to the container.
  • Page 16 Insert screws before bracket is mounted to side member. Make sure there is no gap between the tube and the T Connection.
  • Page 17 The L-Plate will tighten connection and container together. Choose a suitable hole pattern to get the plate in correct position. M6S M16x120 Tightening torque 80 Nm / 59 ftlb Repeat step 4 and 5 for all T-Connection´s and then proceed to page 22.
  • Page 18 End Brackets are marked left/right on the surface that is facing the container. Tightening torque 80 Nm / 59 ftlb Insert screws before bracket is mounted to side member.
  • Page 19 Measure the container and choose the right amount of spacers for your installation. 0 – 30 mm The table below is for reference only. If necessary, adjust the height to get the square tubes parallel to the container.
  • Page 20 Squaretube 70x70x3, L = 1695 Insert screws before bracket is mounted to side member. Make sure there is no gap between the tube and the T Connection.
  • Page 21 The L-Plate will tighten connection and container together. Choose a suitable hole pattern to get the plate in correct position. M6S M16x120 Tightening torque 80 Nm / 59 ftlb Repeat step 4 and 5 for all T-Connection´s...
  • Page 22 Last steps is the same for all variants. Nut M16 Washer BRB 17x30x3 Slide in Corner Bracket the same distance as opposite side. M6S M16x110 Insert screws before bracket is mounted to side member. M6S M16x120 Torque for M6s M16x110 is set to 80 Nm / 59 ftlb, the rest follows table on page 7.
  • Page 23 Components to mount rig on one corner Jointed foot must be screwed in first. Halfway may be adequate. The height of all jointed feet need to be adjusted according to ground level.
  • Page 24 Components to mount rig on one middle part Jointed foot must be screwed in first. Halfway may be adequate. The height of all jointed feet need to be adjusted according to ground level.

This manual is also suitable for:

Prestera 3085890Prestera 3085891
