- Page 1 Industrial Cellular VPN Router Industrial Cellular VPN Router NR600-P5G User Manual NR500 Pro User Manual Guangzhou Navigateworx Technologies Co, Ltd www.navigateworx.com...
- Page 2 Information provided in this manual is intended to be accurate and reliable. However, Navigateworx Technologies assumes no responsibility for its use, or for any infringements on the rights of third parties that may result from its use.
- Page 3 Operation in the presence of other electronic equipment may cause interference if equipment is • incorrectly protected. Follow recommendations for installation from equipment manufacturers. Declaration of Conformity NR600 Series products are in conformity with the essential requirements and other relevant provisions of the CE and RoHS. Page 2 / 90...
-
Page 4: Table Of Contents
Industrial Cellular VPN Router NR600 Series User Manual Table of Contents Chapter 1. Product Overview ............................. 5 1.1 Overview ................................5 1.2 Features and Benefits ........................... 5 1.3 General Specifications ..........................6 1.4 Mechanical Specifications ......................... 8 1.5 Package Checklist ............................9 1.6 Order Information ............................ - Page 5 Industrial Cellular VPN Router NR600 Series User Manual 4.6.3 Schedule Reboot ............................66 4.7 VPN .................................. 67 4.7.1 OpenVPN ..............................67 4.7.2 IPSec ................................73 4.7.3 GRE ................................76 4.8 Maintenance ..............................78 4.8.1 Upgrade ..............................78 4.8.2 Software ..............................78 4.8.3 System ................................79 4.8.4 Configuration .............................83...
-
Page 6: Chapter 1. Product Overview
This router enables wireless data connectivity over public and private 5G cellular networks at 5G speeds. NR600 series router has dual SIM backup,1 WAN and 3 LAN Ethernet ports, Ethernet WAN connection for fixed internet fail over to cellular. Supports dual band 2.4GHz and 5.8GHz Wi-Fi access. -
Page 7: General Specifications
Industrial Cellular VPN Router NR600 Series User Manual • Support Central Management Platform General Specifications Cellular Interface • Standards: 5G NR/FDD-LTE/TDD-LTE, WCDMA/UMTS/HSPA/HSPA+ • 4× SMA female antenna connector • 2 x SIM (3.0V & 1.8V) Ethernet Interface • Standard: IEEE 802.3, IEEE 802.3u •... - Page 8 Industrial Cellular VPN Router NR600 Series User Manual GNSS/GPS • Feature: Gen9C Lite of Qualcomm (GPS, GLONASS, BeiDou, Galileo) • 1 x SMA female with 50 ohms impedance Other Interfaces • 1× RST button • LED instruction: 1 x SYS, 1 x NET, 1 x USR, 3 x RSSI Software •...
-
Page 9: Mechanical Specifications
Industrial Cellular VPN Router NR600 Series User Manual Mechanical Specifications Dimension: 145mm *122mm * 54mm (excluding antenna) Page 8 / 90... -
Page 10: Package Checklist
Industrial Cellular VPN Router NR600 Series User Manual Package Checklist NR600 series Router includes the parts shown in below, please verify your components. NOTE: if any of the below items is missing or damaged, please contact your sales representative. Included equipment •... - Page 11 Industrial Cellular VPN Router NR600 Series User Manual • 1 x Quick Start Guide Optional Accessories (sold separately) • 3G/4G/5G cellular antenna Stubby antenna Magnet antenna • RP-SMA Wi-Fi antenna Stubby antenna Magnet antenna • 35mm Din-rail mounting kit 3 Meters GPS magnetic antenna...
-
Page 12: Order Information
Industrial Cellular VPN Router NR600 Series User Manual • AC/DC power adapter (12VDC, 1.5A; EU/US/UK/AU plug optional) Order Information Model Part Number Description 5G, Dual SIMs, 4 x Gigabit Port, Dual band 2.4GHz and NR600-P5G A634833 5.8GHz Wi-Fi, 1 x RS232 (3 PIN), 1 x RS485, 2 x DI, 2 x DO, 9 -... -
Page 13: Chapter 2. Installation

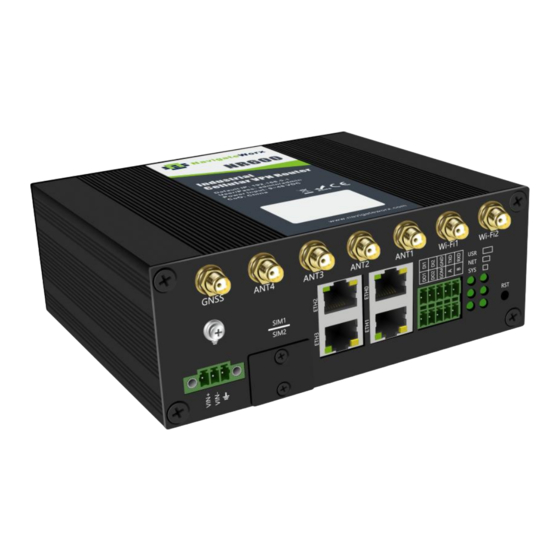

Industrial Cellular VPN Router NR600 Series User Manual Chapter 2. Installation Product Overview Cellular, Wi-Fi, GPS Antenna Power supply SIM slot Ethernet port Digital Input, Digital Output, RS232, RS485 LED indicator Reset button Ground Page 12 / 90... -
Page 14: Led Indicators
Industrial Cellular VPN Router NR600 Series User Manual LED Indicators Name Color Status Description Solid Operating normally Green Power is off Register to Highest priority network service (depend on Radio, e.g. Radio support 5G as Highest priority network). Fast Blinking (500ms duration) Register to Non-Highest priority network service (depend on Radio, e.g. -
Page 15: Ethernet Port Indicator
Industrial Cellular VPN Router NR600 Series User Manual Ethernet Port Indicator Name Status Description Connection is established Blinking Data is being transmitted Link indicator Connection is not established NOTE：There are two LED indicators for each Ethernet port. Due to the chipset design NR600-P5G router would only light up the green one (Link indicator) on left side, the right LED is Off without meaning. -
Page 16: Reset Button
Industrial Cellular VPN Router NR600 Series User Manual Power Input • Description V+ (Red line) Positive V- (Yellow line) Negative PGND Reset Button Function Action Press the RST button within 3s under operation status Reboot Press the RST button between 3s to 10s, all LEDs blink few times then Factory Reset reboot the router manually. -
Page 17: Install Antenna
Industrial Cellular VPN Router NR600 Series User Manual Install Antenna Connect the cellular antenna to the MAIN and AUX connector on the unit. • Connect the Wi-Fi antenna to the Wi-Fi connector on the unit. • Page 16 / 90... -
Page 18: Din-Rail Mounting
Industrial Cellular VPN Router NR600 Series User Manual DIN-rail Mounting Use 4 pcs of M3x6 flat head phillips screws to fix the DIN-rail to the router. Insert the upper lip of the DIN-rail into the DIN-rail mounting kit. Press the router towards the DIN-rail until it snaps into place. -
Page 19: Power Supply Installation
Industrial Cellular VPN Router NR600 Series User Manual Power Supply Installation Remove the pluggable connector from the unit, then loosen the screws for the locking flanges as needed. Connect the wires of the power supply to the terminals. 2.10 Power on The Router Connect one end of the Ethernet cable to the LAN port on the unit and the other end to a LAN port on a PC. -
Page 20: Chapter 3. Access To Web Page
Industrial Cellular VPN Router NR600 Series User Manual Chapter 3. Access to Web page PC Configuration NR600-P5G router contains a DHCP server which will automatically assign an IP address to your PC, however in some cases the user may need to change the network settings on their PC to accept the IP address from the NR600-P5G. -
Page 21: Factory Default Settings
Industrial Cellular VPN Router NR600 Series User Manual Set to a static IP address • click "Use the following IP address" to assign a static IP manually within the same subnet of the router. NOTE：Default gateway and DNS server is not necessary if PC not routing all traffic go through NR600-P5G router. -
Page 22: Login To Web Page
Industrial Cellular VPN Router NR600 Series User Manual Login to Web Page 1. Start a Web browser on your PC (Chrome and IE are recommended), enter 192.168.5.1 into the address bar of the web browser. 2. Then use the default username and password(admin/admin), to log in to the router. -
Page 23: Chapter 4. Web Configuration
Industrial Cellular VPN Router NR600 Series User Manual Chapter 4. Web Configuration Web Interface The NR600-P5G router Web interface is divided into two sections. In the left pane is the main navigation menu. On the right is the content area for each page. - Page 24 Industrial Cellular VPN Router NR600 Series User Manual Reboot: reset the router within power disconnect. • Logout: logout to web authorization page. • Save: save the configuration on current page. • Apply: apply the changes on current page immediately. •...
-
Page 25: Overview
Industrial Cellular VPN Router NR600 Series User Manual Overview 4.2.1 Status You can view the system information of the router on this page. System Information Device Model • Displays the model name of router System Uptime • Displays the duration the system has been up in hours, minutes and seconds. - Page 26 Industrial Cellular VPN Router NR600 Series User Manual Active Link Information Link Type • Current interface for internet access. IP Address • Displays the IP address assigned to this interface. Netmask • Displays the subnet mask of this interface. Gateway •...
-
Page 27: Syslog
Industrial Cellular VPN Router NR600 Series User Manual 4.2.2 Syslog Syslog Information Download Diagnosis • Download the Diagnosis file for analysis. Download Syslog • Download the complete syslog for analysis. Clear • Clear the current page syslog printing. Refresh •... -
Page 28: Link Management
Industrial Cellular VPN Router NR600 Series User Manual Link Management This section shows you the setup of link management. 4.3.1 Connection Manager Connection Manager->Status Type • Displays the connection interface. Status • Displays the connection status of this interface. IP Address •... - Page 29 Industrial Cellular VPN Router NR600 Series User Manual Connection Manager->Connection Priority • Displays the priority list of default routing selection. Enable • Displays the connection enable status. Connection Type • Displays the name of this interface. Description • Displays the description of this connection.
- Page 30 Industrial Cellular VPN Router NR600 Series User Manual ICMP Detection Settings->Enable • Check this box to detect link connection status based on pings to a specified IP address. Primary Server • Enter the primary IP address that pings will be sent to, to detect the link state. Recommend entering the IP address of known external reachable server or network (e.g.
-
Page 31: Cellular
Industrial Cellular VPN Router NR600 Series User Manual 4.3.2 Cellular NR600-P5G Router main function is connecting to Internet by cellular modem. Cellular->Status Modem • Displays the module of the modem used by this WWAN interface. Registration • Displays the registration status of SIM card. - Page 32 Industrial Cellular VPN Router NR600 Series User Manual Local Area Code • Displays the location area code of the SIM card. Cell ID • Displays the Cell ID of the SIM card location. IMSI • International Mobile Subscriber Identity, as read from the SIM. This is the user’s network subscription.
- Page 33 Industrial Cellular VPN Router NR600 Series User Manual SIM Card Settings SIM Card • Displays the current SIM card settings. Auto APN • Check this box enable auto checking the Access Point Name provided by the carrier. Dial Number •...
- Page 34 Industrial Cellular VPN Router NR600 Series User Manual Override Secondary DNS • Enter the secondary DNS server will override the automatically obtained DNS. Expert Options • Enter the custom AT command. 5G Mode • Select 5G Mode type. Selections are SA&NSA, SA, NSA.
-
Page 35: Ethernet
Industrial Cellular VPN Router NR600 Series User Manual 4.3.3 Ethernet The same instructions apply to settings for all Ethernet interfaces. Ethernet->Status Ethernet Port Information • Displays the port physical connected states. Interface Information • Displays the name and MAC address of Ethernet interface. - Page 36 Industrial Cellular VPN Router NR600 Series User Manual Ethernet->Port Assignment Interface • Displays the Lan interface of this unit. VLAN ID • Displays the VLAN ID of current Lan interface. ETH0 • Display the port properties of ETH0 from “off”, “Tagged”, “Untagged”.
- Page 37 Industrial Cellular VPN Router NR600 Series User Manual Ethernet->WAN Connection Type • If you select DHCP Client, external DHCP server will assign an IP address to this unit. • Maximum Transmission Unit, maximum packet size allowed to be transmitted. Should be left as default value of 1500 in most cases.
- Page 38 Industrial Cellular VPN Router NR600 Series User Manual Ethernet->WAN->SStatic IP or PPPoE IP Address • Static address for this interface. It must be on the same subnet as the gateway. Netmask • Will be assigned by the gateway. Gateway •...
- Page 39 Industrial Cellular VPN Router NR600 Series User Manual Ethernet->LAN Interface • Displays current name of LAN subnet. IP Address • Displays LAN IP address of this subnet. Netmask • Displays subnet mask for this subnet. Page 38 / 90...
- Page 40 Industrial Cellular VPN Router NR600 Series User Manual Ethernet->LAN Interface • Select the configurate LAN port of this subnet. IP Address • Enter LAN IP address for this interface. Netmask • Enter subnet mask for this subnet. • Maximum Transmission Unit, maximum packet size allowed to be transmitted. Should be left as default value of 1500 in most cases.
- Page 41 Industrial Cellular VPN Router NR600 Series User Manual Ethernet->LAN->MAC Binding IP Settings Enable • Check this box to enable MAC binding IP feature. Description • Enter the description for MAC binding IP feature. Host MAC Address • Enter the host MAC address.
-
Page 42: Wi-Fi
Industrial Cellular VPN Router NR600 Series User Manual 4.3.4 Wi-Fi NR600-P5G router support dual band Wi-Fi 2.4G and Wi-Fi 5.8G simultaneously, You could review the Wi-Fi connection status as below. Select Wi-Fi/WiFi 5G from the main navigation menu to WiFi/WiFi 5G page, then review General Settings and WiFi Instance Settings as below: Wi-Fi->WiFi/WiFi 5G>General Settings... - Page 43 Industrial Cellular VPN Router NR600 Series User Manual Click to add a new WiFi Instance. Click to edit current WiFi Instance. Click to delete current WiFi Instance. Wi-Fi->WiFi/WiFi 5G>WiFi Instance Settings Index • instance Display the index of current WiFi Enable •...
- Page 44 Industrial Cellular VPN Router NR600 Series User Manual NR600-P5G router could only be set to function as either a Wi-Fi Client or a Wi-Fi Access Point, but not both simultaneously. Below window displays these settings when you select Mode to AP.
- Page 45 Industrial Cellular VPN Router NR600 Series User Manual WPA Type • Select WPA Type from “Auto”,“WPA” and “WPA2”. Encryption Type • Select the encryption method. Options are “Auto”, “TKIP”, or “CCMP”. Because these options depend on the authentication method selected, some options will not be available.
- Page 46 Industrial Cellular VPN Router NR600 Series User Manual Wi-Fi->WiFi/WiFi 5G>WiFi Instance Settings>Wi-Fi Client Enable • Check this box will enable the Wireless interface. Mode • Select Mode to Client. Connect to Hidden SSID • Check this box will enable connect to hidden SSID.
-
Page 47: Industrial Interface
Industrial Cellular VPN Router NR600 Series User Manual Industrial Interface The Industrial page contains tabs for making configuration settings for Serial RS232 and RS485, Digital input and output. Select Serial & Digital IO from the main navigation menu to navigate to this page. - Page 48 Industrial Cellular VPN Router NR600 Series User Manual Remote port • Displays the Remote port number of the current COM1/2 connection. Connection status • Dispalys the status of current COM1/2 connection. Serial->Connection Enable • Displays status of current serial function.
- Page 49 Industrial Cellular VPN Router NR600 Series User Manual Serial->Connection Settings Baud Rate • Select the serial port baud rate. Supported values are 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, or 115200. Data Bits • Select the values from 7 or 8.
- Page 50 Industrial Cellular VPN Router NR600 Series User Manual Serial->Connection Settings Remote Address • Enter the IP address of the remote server. Remote Port • Enter the port number of the remote server. When you select TCP Server on Protocol, the window displays the settings as below.
- Page 51 Industrial Cellular VPN Router NR600 Series User Manual When you select UDP on Protocol, the window displays the settings as below. Serial->Connection Settings Local IP Address • Enter the IP Address of the local endpoint. Local Port • The port number assigned to the serial IP port on which communications will take place.
-
Page 52: Digital Io
Industrial Cellular VPN Router NR600 Series User Manual 4.4.2 Digital IO This section allows you to set the Digital IO parameters. The Digital input could be used for triggering alarm, and Digital output could be used for controlling the slave device by digital signal. - Page 53 Industrial Cellular VPN Router NR600 Series User Manual Alarm ON Mode • Select the electrical level to trigger alarm. Option are “Low” and “High”. Alarm ON Content • Specify the alarm on content to be sent out via SMS message.
- Page 54 Industrial Cellular VPN Router NR600 Series User Manual Counter Ctrl • Select serial connection Index, 1 or 2. Count • Set the number of digital input port counters by manually. Page 53 / 90...
-
Page 55: Network
Industrial Cellular VPN Router NR600 Series User Manual Network 4.5.1 Firewall Firewall rules are security rule-sets to implement control over users, applications or network objects in an organization. Using the firewall rule, you can create blanket or specialized traffic transit rules based on the requirement. - Page 56 Industrial Cellular VPN Router NR600 Series User Manual Protocol • All: Any protocol number. TCP: The TCP protocol. UDP: The UDP protocol. TCP & UDP: both TCP and UDP protocol ICMP: The ICMP protocol. Source Address • A specific host IP address can also be specified, or a range of IP addresses via a bitmask (the box following the /).
- Page 57 Industrial Cellular VPN Router NR600 Series User Manual Sets the LAN port number range used when forwarding to the destination IP address. Firewall->DMZ Enable • Check this box to enable DMZ function. Remote Address • Optionally restricts DMZ access to only the specified WAN IP address.
-
Page 58: Route
Industrial Cellular VPN Router NR600 Series User Manual Firewall->URL Filter • Enter the URL to block the data traffic to go to the website. For example, www.google.com 4.5.2 Route Static Routing refers to a manual method of setting up routing between networks. Select the Static Routing tab to add static routes to the Static Route Table. - Page 59 Industrial Cellular VPN Router NR600 Series User Manual Route->Static Route Settings Description • Enter the description of current static route rule. IP Address • Enter the IP address of the destination network. Netmask • Enter the subnet mask of the destination network.
-
Page 60: Vrrp
Industrial Cellular VPN Router NR600 Series User Manual 4.5.3 VRRP The Virtual Router Redundancy Protocol (VRRP) is a computer networking protocol that provides automatic assignment of available Internet Protocol (IP) routers for participating hosts. The VRRP router who has the highest number will become the virtual master router. The VRRP router number ranges from 1 to 255 and usually we use 255 for the highest priority and 100 for backup. -
Page 61: Ip Passthrough
Industrial Cellular VPN Router NR600 Series User Manual 4.5.4 IP Passthrough IP Passthrough mode disables NAT and routing and passes the WAN IP address from the WAN interface to the device connected on the local Interface. It is used instead of Network Address Translation (NAT) in order to make the router "transparent"... -
Page 62: Applications
Industrial Cellular VPN Router NR600 Series User Manual Applications 4.6.1 DDNS DDNS is a system that allows the domain name data of a computer with a varying (dynamic) IP addresses held in a name server to be updated in real time in order to make it possible to establish connections to that machine without the need to track the actual IP addresses at all times. - Page 63 Industrial Cellular VPN Router NR600 Series User Manual Log Level • Select the log output level from “none”, “Error”, “Notice”, ”Info” and “Debug”. Enable • Check this box to enable the DDNS service. Provider • Select the DDNS provider from the list, options from “DynDNS”, “no-ip”,”3322” and custom.
-
Page 64: Sms
Industrial Cellular VPN Router NR600 Series User Manual 4.6.2 SMS SMS allows user to send the SMS to control the router or get the running status of the router. Application->SMS Enable • Check this box to enable SMS feature. Enable SMS Control •... - Page 65 Industrial Cellular VPN Router NR600 Series User Manual SMS Gateway allow to send SMS messages by using a valid syntax from admin device. Application->SMS>Gateway Enable • Check the box will enable SMS gateway. Authentication Type • Specify the authentication mode for SMS, optional for “None” and “Password”.
- Page 66 Industrial Cellular VPN Router NR600 Series User Manual Application->SMS>Gateway Enable • Check the box will enable SMS gateway. Authentication Type • Specify the authentication mode for SMS, optional for “None” and “Password”. SMS Source • Specify SMS source to receive valid syntax, optional for “HTTP(S) GET/POST”.
-
Page 67: Schedule Reboot
Industrial Cellular VPN Router NR600 Series User Manual Timestamp • Check this box to enable timestamp on the SMS notify. Startup • Send SMS notification to the pre-setting phone number when system startup. Reboot • Send SMS notification to the pre-setting phone number when system reboot. -
Page 68: Vpn
Industrial Cellular VPN Router NR600 Series User Manual 4.7.1 OpenVPN OpenVPN is an open source virtual private network (VPN) product that offers a simplified security framework, modular network design, and cross-platform portability. You could review all OpenVPN connection as below. - Page 69 Industrial Cellular VPN Router NR600 Series User Manual VPN->OpenVPN Enable • Check this box to enable OpenVPN tunnel. Description • Enter a description for this OpenVPN tunnel. Mode • Select from “P2P”, “Client” or “Server”. Protocol • Select from “UDP”, “TCP Client” or “TCP Server”...
- Page 70 Industrial Cellular VPN Router NR600 Series User Manual Max Client • Allow max OpenVPN client connect to OpenVPN server. Authentication Method • Select from "X.509", "Pre-shared", "Password", and "X.509 And Password". Encryption Type • Select from "BF-CBC", "DES-CBC", "DES-EDE-CBC", "DES-EDE3-CBC", "AES-128-CBC", "AES-192-CBC" and "AES-256-CBC".
- Page 71 Industrial Cellular VPN Router NR600 Series User Manual VPN->OpenVPN->Advanced Settings Enable NAT • Check this box to enable NAT, the source IP of host behind router will be disguised before accessing the remote end. Enable Default Gateway • Check this box to enable default gateway, all the data traffic will go through the VPN tunnel.
- Page 72 Industrial Cellular VPN Router NR600 Series User Manual VPN->OpenVPN->X.509 Certificate OpenVPN Mode • Select OpenVPN working mode between Server and Client. Connection Index • Displays the current connection index for OpenVPN channel. CA Certificate • Import CA certificate file. Local Certificate File •...
- Page 73 Industrial Cellular VPN Router NR600 Series User Manual VPN->OpenVPN->Configuration Files Connection Index • Select OpenVPN connection index. Configuration Files • Import the OpenVPN client file. Configuration Files Download • Download the OpenVPN client configuration. Configuration Files List • Display the imported OpenVPN client file.
-
Page 74: Ipsec
Industrial Cellular VPN Router NR600 Series User Manual 4.7.2 IPSec IPSec facilitates configuration of secured communication tunnels. The various tunnel configurations will be displayed in the Tunnel Table at the bottom of the page. All tunnels are create using the ESP (Encapsulating Security Payload) protocol. - Page 75 Industrial Cellular VPN Router NR600 Series User Manual VPN->IPSec Enable • Select Enable will launch the IPSec process. Description • Enter a description for this IPSec VPN tunnel. Remote Gateway • Enter the IP address of the remote endpoint of the tunnel.
- Page 76 Industrial Cellular VPN Router NR600 Series User Manual VPN->IPSec Encryption Algorithm (IKE) • Select 3DES AES-128, AES-192, or AES-256 encryption. Hash Algorithm (IKE) • Select from MD5, SHA1, SHA2 256, SHA2 384 or SHA2 512 hashing. Diffie-Hellman Group (IKE) •...
-
Page 77: Gre
Industrial Cellular VPN Router NR600 Series User Manual 4.7.3 GRE Generic Routing Encapsulation (GRE) is a protocol that encapsulates packets in order to route other protocols over IP networks. It’s a tunneling technology that provides a channel through which encapsulated data message could be transmitted and encapsulation and decapsulation could be realized at both ends. - Page 78 Industrial Cellular VPN Router NR600 Series User Manual VPN->GRE Enable • Check this box to enable GRE. Description • Enter the description of current VPN channel. Mode • Specify the running mode of GRE, optional are “Layer 2” and “Layer 3”.
-
Page 79: Maintenance
Industrial Cellular VPN Router NR600 Series User Manual Maintenance 4.8.1 Upgrade When newer versions of NR600-P5G firmware become available, the user can manually update the unit by uploading a package to the unit. NOTE: The unit need manually reboots once the upload completes, thus taking the NR600-P5G router out of service during approximately 1 minute. -
Page 80: System
Industrial Cellular VPN Router NR600 Series User Manual 4.8.3 System This section allows you to review the device system settings. System->General Hostname • User-defined router name, which might be use for IPSec local ID identify. Enable Performance mode • Check the box to make the router enable Performance mode. - Page 81 Industrial Cellular VPN Router NR600 Series User Manual System->Account Administrator • Displays the name of current administrator, default as “admin”. Old Password • Enter the old password of administrator. New Password • Enter the new password of administrator. Confirm Password •...
- Page 82 Industrial Cellular VPN Router NR600 Series User Manual Syslog displays system logs that are stored in the log buffers. System->Syslog Log Location • Select the log store location from “RAM” or “Flash”. Log Level • Select the log output level from “Debug”, “Notice”, “Info”, “Warning” or “Error”.
- Page 83 Industrial Cellular VPN Router NR600 Series User Manual System->Telnet Telnet Port • Enter the port for telnet access. A well-known port for HTTP is port 23. System->SSH SSH Port • Enter the port for SSH access. A well-known port for HTTP is port 22.
-
Page 84: Configuration
Industrial Cellular VPN Router NR600 Series User Manual Remote HTTPS Access • Check this box to allow remote HTTPS access. Remote Telnet Access • Check this box to allow remote Telnet access. Remote SSH Access • Check this box to allow remote SSH access. -
Page 85: Debug Tools
Industrial Cellular VPN Router NR600 Series User Manual 4.8.5 Debug Tools Debug Tools->Ping Host Address • Enter a host IP address or domain name for ping. Ping Count • Enter the ping times. Local IP Address • Enter the ping source IP address or leave it blank. - Page 86 Industrial Cellular VPN Router NR600 Series User Manual Debug Tools->Sniffer>Sniffer Settings Source Host • Enter the source IP address. Source Port • Enter the source port. Destination Host • Enter the destination IP address. Destination Port • Enter the destination port.
-
Page 87: Appendix A -Glossary
Industrial Cellular VPN Router NR600 Series User Manual Appendix A -Glossary APN: Access Point Name GPRS: General Packet Radio Service HSPA: High Speed Packet Access HSDPA: High-Speed Downlink Packet Access HSUPA: High-Speed Uplink Packet Access LTE: 3GPP Long Term Evolution... -
Page 88: Cannot Detect Sim Card
Industrial Cellular VPN Router NR600 Series User Manual Check the cellular page confirm modem is detected correctly or not. • Cannot detect SIM card Phenomenon NR600-P5G Router cannot detect SIM card, cellular is not failed to connect to base station. -
Page 89: Forget Router Password
Industrial Cellular VPN Router NR600 Series User Manual Forget Router Password Phenomenon Forget router login password. Possible Reason User has changed the password. Solution After router power on, press RESET button between 3 to 10 seconds then release, router need manually reboot and reset to factory default settings (Username/Password is admin/admin). - Page 90 Industrial Cellular VPN Router NR600 Series User Manual "instance_2g":[ "id":"1", "mode":"WiFi AP", "ssid":"2.4G_1", "channel":"2.412 GHz", "mac":"20:2F:5C:EB:01:A0 ", "status":"Ready", "speed":"192 Mb\/s", "tx_power":"20 dBm ", "signal":"-106 dBm" "instance_5g":[ "id":"1", "mode":"WiFi AP", "ssid":"damo-5G_1", "channel":"5.805 GHz", "mac":"20:2F:5C:EB:01:A1 ", "status":"Ready", "speed":"866.7 Mb\/s", "tx_power":"20 dBm ", "signal":"-107...
- Page 91 Industrial Cellular VPN Router NR600 Series User Manual has been resolved, will display a detailed reference. AUTO-COMPLETION The following keys both perform auto-completion for the current command line. If the command prefix is not unique then the bell will ring and a subsequent repeat of the key will display possible completions.
