Related Manuals for Habitat Lohko 3882328
Summary of Contents for Habitat Lohko 3882328

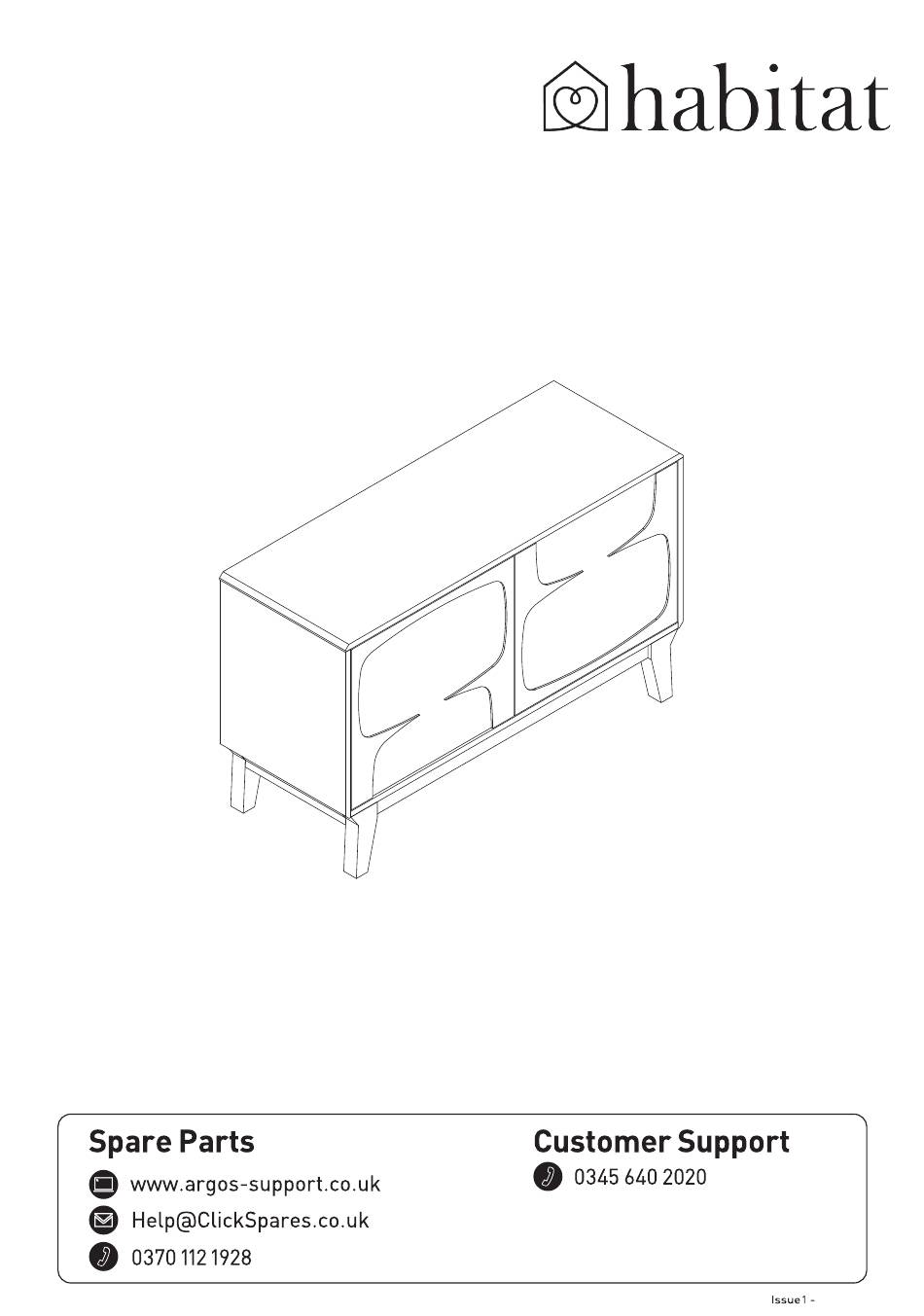

- Page 1 Lohko Nov 2023...
- Page 2 Scion Lohko Sideboard / 3882328 Maximum loading weight 50kg. EN14749, BS4875-7 Habitat, Argos Limited and Sainsbury's Supermarkets Ltd, London EC1N 2HT, UK. Argos (N.I.) Ltd and Sainsbury’s (NI) Ltd. Forestside Shopping Centre, Upper Galwally, Belfast, BT8 6FX, UK...
- Page 3 Fittings (Shown to scale) Bag 1 30mm Wooden Dowel x 20 32mm Metal Dowel x18 Locking Nut x18 45mm Screw x14 16mm Screw x40 16mm Screw x 2 Magney Catch x2 Magney Catch Base x2 L Shap Bracket x 2 Plastic Cleat x6 Ø30mm Felt Pad x 6 Door Hinge x4...
-
Page 4: Tools Required
Tools required Phillips screwdriver Ruler/tape measure (small & medium) Phillips screwdriver Power Drill (small & medium) Large hammer Drill Heads Pencil... - Page 5 Panels Top Panel x 1 (1208 x 450mm) Left Side Panel x 1 Right Side Panel x 1 (521 x 450mm) (521 x 450mm) Bottom Panel x 1 (1170 x 450mm) Middle Panel x 1 (502 x 409mm) Shelf Panel x 2 Leg Frame x 1 (1169 x 449mm) (577 x 398mm)
- Page 6 30mm Wooden Dowel x 20 32mm Metal Dowel x18 Locking Nut x18 16mm Screw x 8 32mm Metal Dowel x18 45mm Screw x14 16mm Screw x40 16mm Screw x 2 16mm Screw x2 30mm Wooden Dowel x 20 Magney Catch Base x2 Magney Catch x2 L Shap Bracket x 2 Magney Catch Base x2...
- Page 7 Locking Nut x 3 Locking Nut x 6...
- Page 8 45mm Screw x14 Ø30mm Felt Pad x 4 Peel off the back...
- Page 9 Locking Nut x 9 16mm Screw x8 Door Hinge x4...
- Page 10 16mm Screw x8 Note: The end of the magnetic catch can be screwed in or out to adjust it's position and help it connect with the metal strike plate.
- Page 11 Please Note! With the unit in its final position, the door can be adjusted to fit by moving the hinges 16mm Screw x8 up and down on the unit side, and adjusting the screw in the centre of each hinge to alter the angle and fit of the door in its frame.
- Page 12 16mm Screw x8 Plastic Cleat x6 Rotate Product...
- Page 13 WARNING! In order to prevent overturning this product must be used with the wall attachment device provided. Serious or fatal crushing injuries can occur from furniture tipping over. To help prevent topple over :- -Use the wall attachment devices provided -Never allow children to climb or hang on drawers -Do not overload the drawer beyond maximum recommended loading.
- Page 14 Shelf Pin x8 Assembly is complete.
-
Page 15: A Guide To - Wall Mounting & Fixings
1: General rule: Always use a larger screw and wall plug if you are not sure. different wall types, Habitat cannot provide you with the 2: Ensure you use the recommended drill bit to match the wall exact fixings you will need to plug and hole size.
