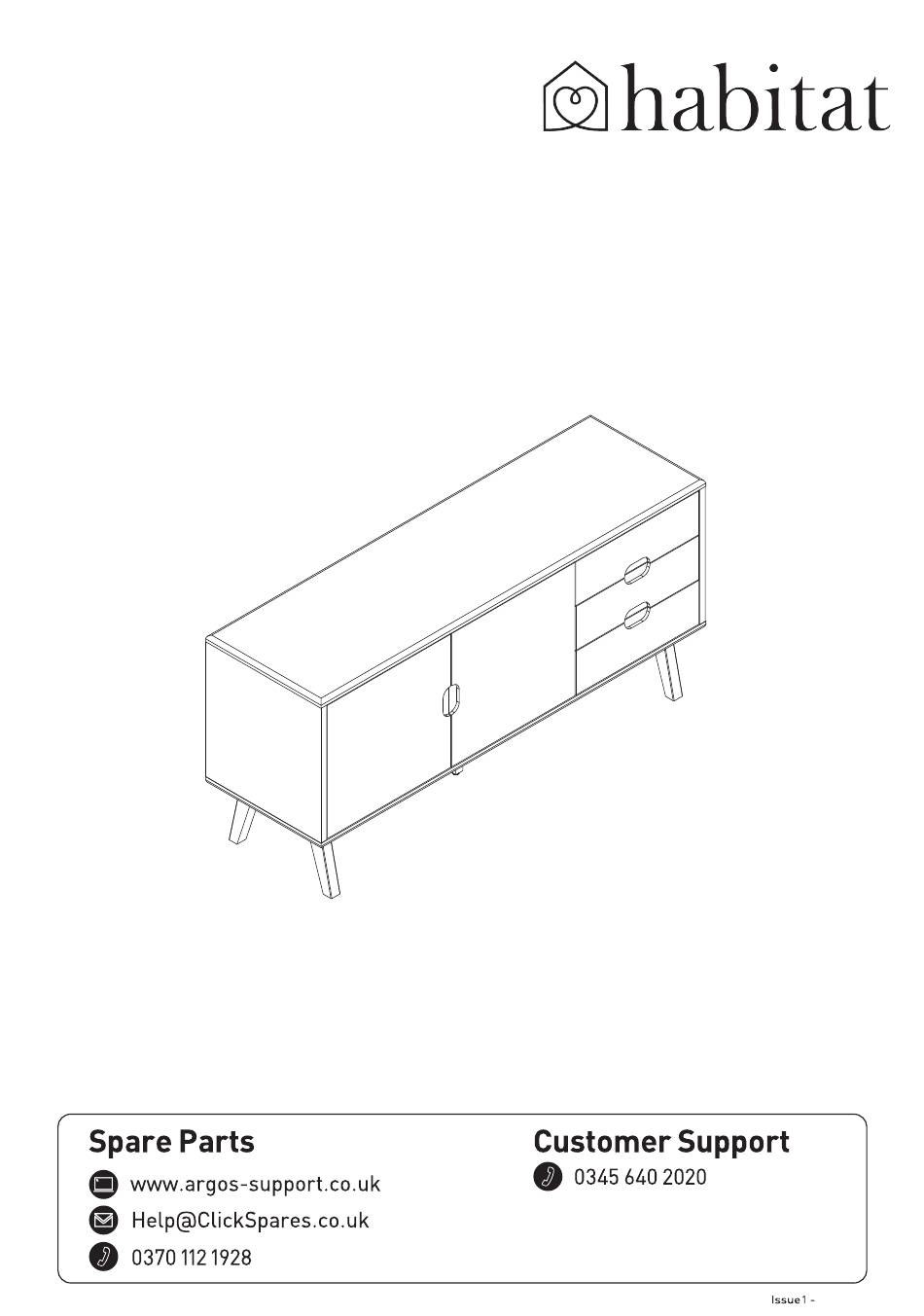

- Page 1 Esala Nov 2023...

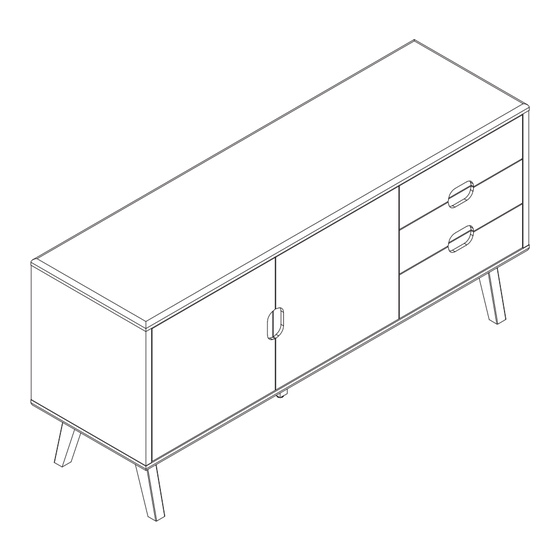

- Page 2 Scion Esala Sideboard / 4077699 Maximum loading weight 50kg. EN14749，BS4875-7 Habitat, Argos Limited and Sainsbury's Supermarkets Ltd, London EC1N 2HT, UK. Argos (N.I.) Ltd and Sainsbury’s (NI) Ltd. Forestside Shopping Centre, Upper Galwally, Belfast, BT8 6FX, UK...
- Page 3 Fittings (Shown to scale) Bag 1 30mm Wooden Dowel x 20 32mm Metal Dowel x40 Locking Nut x40 35mm Screw x12 16mm Screw x34 16mm Screw x 2 Drawer Stopper x3 14mm Nut x4 L Shap Bracket x 2 Plastic Cleat x6 Ø26mm Felt Pad x 6 Door Hinge x4 Shelf Pin x8...
-
Page 4: Tools Required
Tools required Phillips screwdriver Ruler/tape (small & medium) measure Phillips screwdriver Power Drill (small & medium) Large hammer Drill Heads Pencil... - Page 5 Panels Top Panel x 1 (1500 x 450mm) Right Side Panel x 1 Left Side Panel x 1 Middle Right Panel x1 Middle Left Panel x 1 (456 x 449mm) (456 x 449mm) (456 x 409mm) (456 x 409mm) Leg Frame x 2 (400 x 210mm) Rail x 2 Bottom Panel x 1...
- Page 6 Panels Upper Right Side Drawer x1 Left Side Drawer x3 Upper Drawer Front x1 (400 x 126mm) (400 x 126mm) (481 x 148mm) Right Side Drawer x2 Middle Drawer Front x1 (400 x 126mm) (481 x 148mm) Bottom Drawer Front x1 (481 x 148mm) Drawer Back Panel x3 (422 x 126mm)
- Page 7 30mm Wooden Dowel x 20 32mm Metal Dowel x40 Locking Nut x40 M6x60mm Bolt x4 35mm Screw x12 16mm Screw x34 16mm Screw x 2 Drawer Stopper x3 Spring Washer x4 14mm Nut x4 L Shap Bracket x 2 Plastic Cleat x6 Ø26mm Felt Pad x 6 Door Hinge x4 Flat Washer x4...
- Page 8 M6x80mm Bolt x4 Spring Washer x4 Flat Washer x4 14mm Nut x4 Peel off the back Ø26mm Felt Pad x 4 100% Warning! Please do fully tighten all the bolts in this step.
- Page 9 32mm Metal Dowel x40 16mm Screw x2 L Shap Bracket x 2 30mm Wooden Dowel x 20 8 x2...
- Page 10 Locking Nut x 4 Locking Nut x 6 Turn Product...
- Page 11 Locking Nut x 6...
- Page 12 Locking Nut x 12 Repeat Locking Nut x 12 17 18 Upper Drawer Front x1 Middle Drawer Front x1 14 15 Bottom Drawer Front x1...
- Page 13 Repeat Repeat 35mm Screw x12...
- Page 14 16mm Screw x8 Door Hinge x4 16mm Screw x8...
- Page 15 Please Note! With the unit in its final position, the door can be adjusted to fit by moving the hinges 16mm Screw x8 up and down on the unit side, and adjusting the screw in the centre of each hinge to alter the angle and fit of the door in its frame.
- Page 16 16mm Screw x10 Plastic Cleat x6 Rotate Product...
- Page 17 WARNING! In order to prevent overturning this product must be used with the wall attachment device provided. Serious or fatal crushing injuries can occur from furniture tipping over. To help prevent topple over :- -Use the wall attachment devices provided -Never allow children to climb or hang on drawers -Do not overload the drawer beyond maximum recommended loading.
- Page 18 Drawer Stopper x3 xSCION...
- Page 19 Shelf Pin x8 Silicone Pad x4 Peel off the back...
- Page 20 Warning! Adjust the glides so that the bottom of the product is supported flat on the floor! Assembly is complete.
-
Page 21: A Guide To - Wall Mounting & Fixings
1: General rule: Always use a larger screw and wall plug if you are not sure. different wall types, Habitat cannot provide you with the 2: Ensure you use the recommended drill bit to match the wall exact fixings you will need to plug and hole size.
