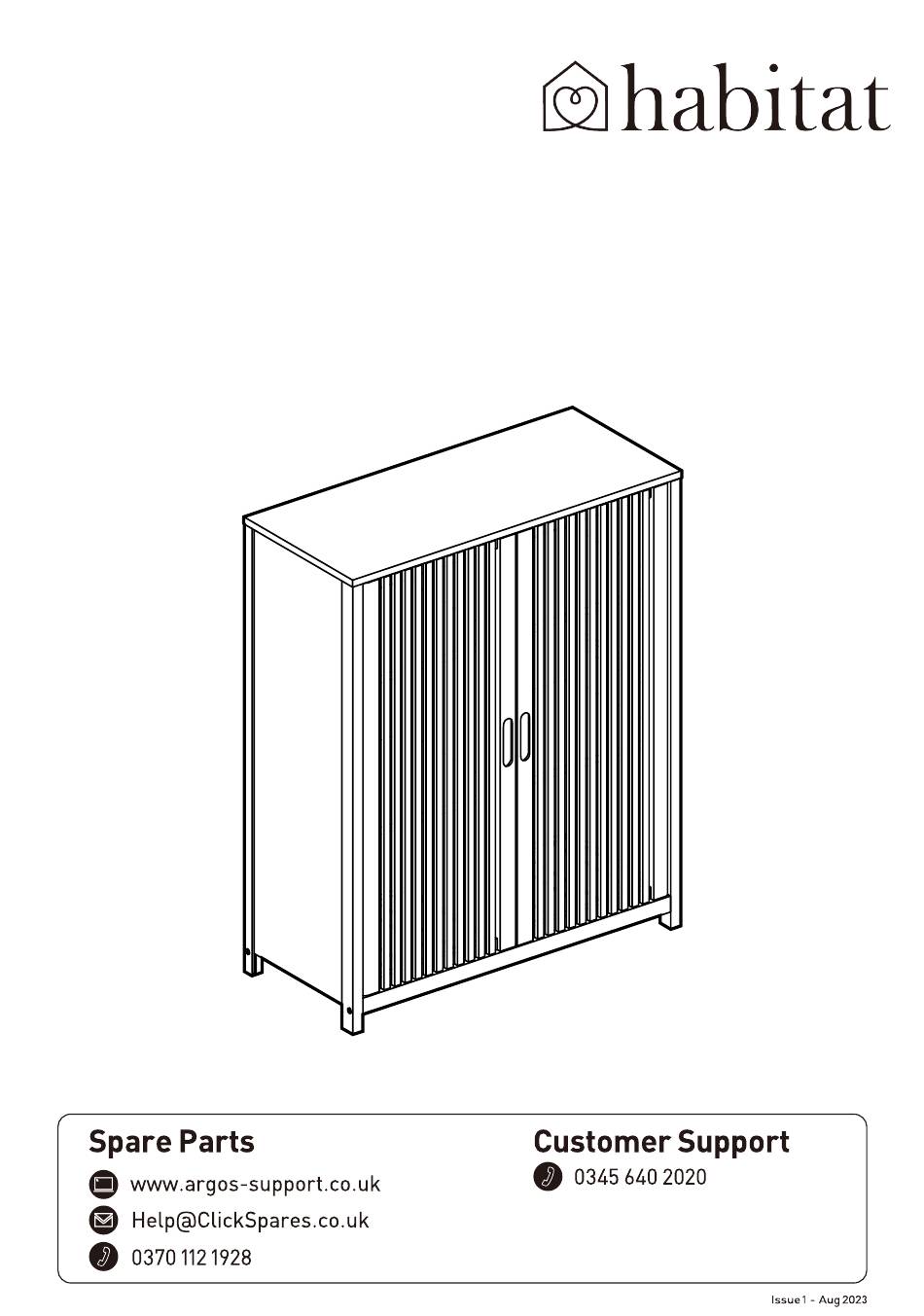

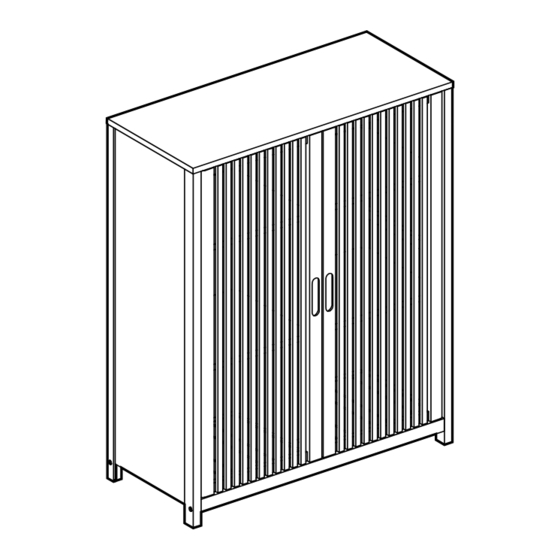

- Page 1 Eave Storage Cabinet Bamboo...
- Page 2 Any additional or replacement parts are obtained from the manufacturer. Shelf maximum loading weight 5 kgs. This product is compliant EN14749；BS4875-7. Habitat, Argos Limited and Sainsbury's Supermarkets Ltd, London EC1N 2HT, UK. Argos (N.I.) Ltd and Sainsbury’s (NI) Ltd. Forestside Shopping Centre, Upper Galwally, Belfast, BT8 6FX, UK...
-
Page 3: Tools Required
Fittings Cam Bolt x2 Cam Lock x2 M5x40mm Screw x2 M3x14mm Screw x8 M3.5x18mm Screw x15 M6x30mm Dowel x2 M6x50mm Bolt x4 M6x30mm Bolt x4 M6x10x12mm Nuts x4 M5x10x9mm Nuts x2 Magnet Door Stop x2 Magnet Plate x2 Pin x4 Shelf Support x16 M4x50mm Screw x2 M4x12mm Screw x2... - Page 4 Part Left Frame Under Back Panel (945 x 341 x 24mm) (753 x 291 x 5 mm) Right Frame Divider (945 x 341 x 24mm) (876 x 300 x 18mm) Top Panel Door (782 x 343 x 15mm) (871 x 359 x 24mm) Bottom Panel Adjustable Shelf (732 x 339 x 34mm)
- Page 5 Cam Bolt x2 Cam Lock x2 M5x40mm Screw x2 Cam Bolt x2 M4x12mm Screw x2 M3x14mm Screw x8 M3.5x18mm Screw x15 M6x30mm Dowel x2 M6x50mm Bolt x4 M6x30mm Bolt x4 M6x10x12mm Nuts x4 M3x14mm Screw x4 Metal'L Bracket x2 M5x10x9mm Nuts x2 Magnet Door Stop x2 Magnet Plate x2 Magnet Door Stop x2...
- Page 6 M5x40mm Screw x2 M6x30mm Dowel x1 M5x10x9mm Nuts x2 M6x50mm Bolt x4 M6x10x12mm Nuts x4...
- Page 7 M6x30mm Bolt x4 M3.5x18mm Screw x15 Felt Pads x4...
- Page 8 Shelf Support x16 Turn Product M3x14mm Screw x4 Magnet Plate x2 Pin x4 Repeat...
- Page 10 M4x50 Screw x 2 Washer x2 Anchor x2 20kg Please Note! If necessary this unit can be levelled up on uneven floors using the felt feet pads provided. 10kg · WARNING: To prevent possible overbalancing this unit must be secured to a wall using the overbalance protector kit supplied.
-
Page 11: A Guide To - Wall Mounting & Fixings
A Guide to - Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
