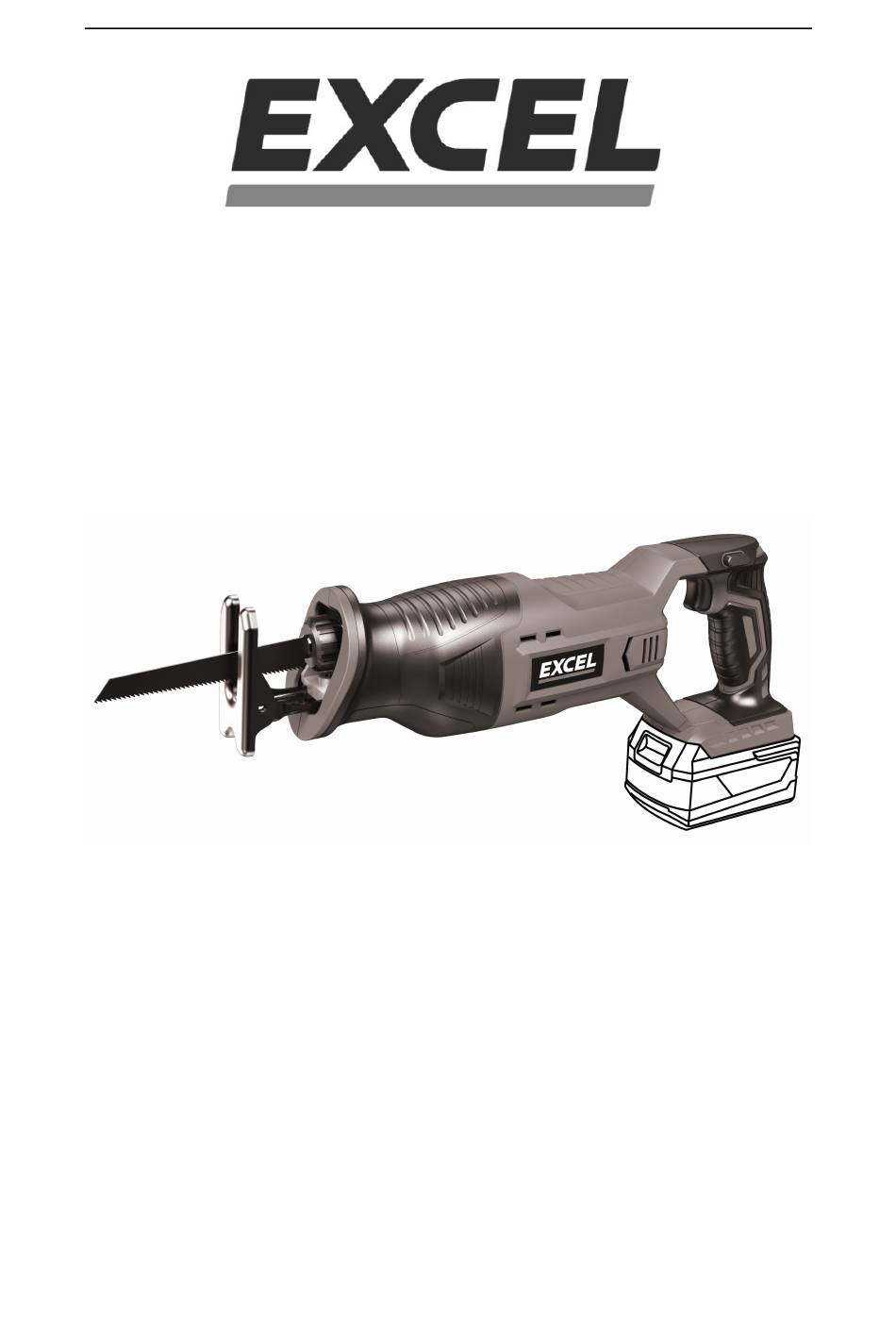

- Page 1 Original Instructions CORDLESS SABRE SAW 18V 11758 INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS Read instructions carefully before any use Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. -
Page 3: General Power Tool Safety Warnings
Original Instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instruction, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. The term "power tool"... - Page 4 Original Instructions are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
- Page 5 Original Instructions binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
- Page 6 Original Instructions only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Special warning for reciprocating saw Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring.
- Page 7 Original Instructions can irritate the respiratory system. Use the battery only in conjunction with your ELITECH power tool. This measure alone protects the battery against dangerous overload. The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally.
- Page 8 Original Instructions contact them and cause a short circuit. The best storage place is one that is cool and dry away from direct sunlight and excess heat or cold. If the battery pack has been stored for a long time, you should activate the battery pack first before using it.
-
Page 9: Intended Use
Original Instructions Make sure that the charger lead is positioned where it will not be stepped on, tripped over or otherwise subjected to damage or stress. Do not use an extension cord unless it is absolutely necessary. The use of an improper extension cord could cause the risk of fire, electric shock or electrocution. -
Page 10: List Of Main Parts
Original Instructions LIST OF MAIN PARTS Saw blade Pivoting blade foot Tool-free chuck Lock-off button On/off switch Allen wrench Battery pack（excluded） TECHNICAL SPECIFICATIONS Product Description 18V Li-ion Sabre Saw Rated voltage of battery Rated speed 0-2800rpm Stroke length 25.4mm... -
Page 11: Noise/Vibration Information
Original Instructions max cutting capacity: 100mm in wood 8mm in metal Sound pressure level LpA 77.1 dB(A) (KpA=3dB(A)) Sound power level L =3dB(A)) 88.1 dB(A) Level of vibration a (K=1.5m/s 6.143 m/s Battery and Charger Recommended battery BA-1850B Li-ion 18V d.c. 5.0Ah 1. - Page 12 Original Instructions Vibration risk limitation suggestions: 1) wear glove during operation 2) limit operating time and shorten trigger time. Battery charger (Fig.1) The lithium-ion battery can be charged at any time and will not develop a “memory” when charged after only a partial discharge. It is not necessary to run down the battery pack charge before recharging.
- Page 13 Original Instructions CH-1802B/CH-1802D: See the manual of CH-1802B/CH-1802D NOTE: Batteries may become warm while charging. This is normal. If the battery is hot after continuous use in the tool, allow it to cool down to room temperature before charging. This will extend the life of your batteries.
- Page 14 Original Instructions pin inside the clamp. Release the blade clamp ring and ensure the blade is locked securely in place. Check the tight seating of the saw blade. A loose saw blade can fall out and lead to injuries. For certain work, the saw blade can also be turned through 180°...
- Page 15 Original Instructions Switching on and off Depress the On/Off switch to start and release it to stop your tool. Depress the on/off switch then the lock on button. Your tool is now locked on for continuous use. To switch off your tool just depress and release the on/off switch. Controlling the stroke rate For sawing appropriately to the material a suitable stroke rate can be set with the regulating wheel and controlled with the ON-OFF switch.
- Page 16 Original Instructions Flush cutting Pay attention that the saw blade always extends beyond the diameter of the material being worked. There is danger of kickback. It is possible to make cuts extremely close to floors, walls and other difficult areas. Insert the blade shank into the blade clamp with the blade teeth facing up (opposite to normal working position).
- Page 17 Original Instructions WORKING HINTS FOR YOUR RECIPROCATING SAW 1. If your power tool becomes too hot, set the speed to maximum and run no load for 2-3 minutes to cool the motor. 2. Always ensure the work-piece is firmly held or clamped to prevent movement.
- Page 18 Original Instructions Disposal Electronic devices are recyclable waste and must not be disposed of in the household waste. At the end of its service life, dispose of the product according to the relevant statutory regulations. Remove any rechargeable battery, if necessary, and dispose of it separately from the product.
- Page 19 Original Instructions Exceltools.co.uk Sales@exceltools.co.uk...
