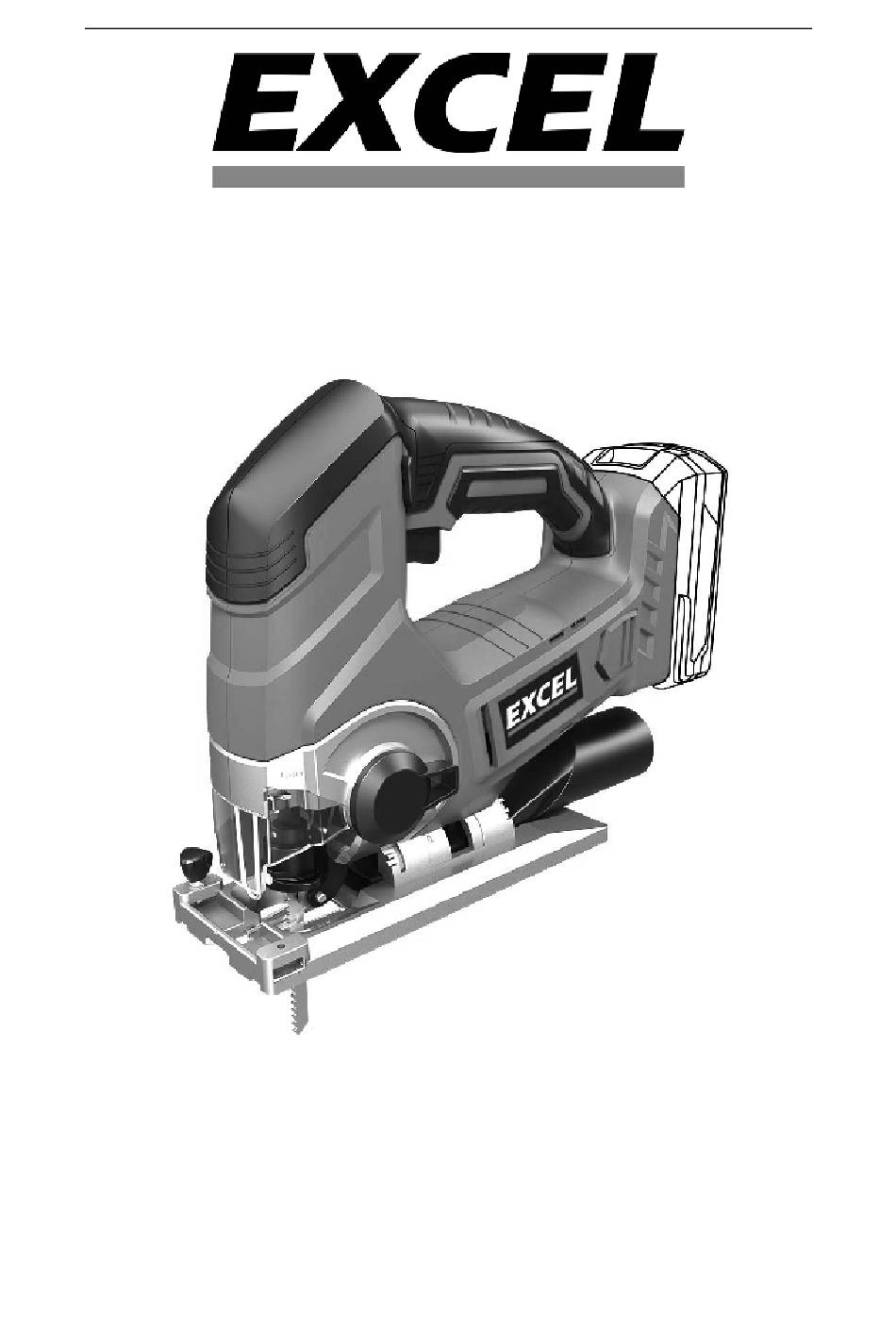

- Page 1 Original Instructions CORDLESS JIG SAW 18V 11752/JS-L0118 INSTRUCTION MANUAL...
-
Page 2: Description Of The Symbols
Original Instructions DESCRIPTION OF THE SYMBOLS Read instructions carefully before any use Complies with relevant European regulations The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. -
Page 3: General Power Tool Safety Warnings
Original Instructions GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings, instruction, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. The term "power tool"... - Page 4 Original Instructions are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
- Page 5 Original Instructions binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
- Page 6 Original Instructions using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers. Special safety instructions Important! Use of any accessories or attachments other than those supplied or recommended in these operating instructions can mean the risk of injury.
- Page 7 Original Instructions where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock. EXTRA SAFETY REGULATIONS CONCERNING BATTERY To ensure the longest battery life and best battery performance, always charge the battery when the temperature is between 18-24°C.
- Page 8 Original Instructions and excess heat or cold. If the battery pack has been stored for a long time, you should activate the battery pack first before using it. The battery is to be disposed of safely. EXTRA SAFETY REGULATIONS CONCERNING BATTERY CHARGER This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of...
-
Page 9: Intended Use
Original Instructions improper extension cord could cause the risk of fire, electric shock or electrocution. Do not use the charger if it has been subjected to a heavy knock, dropped or otherwise damaged in any way. Take the charger to an authorized service centre for a check or repair. -
Page 10: List Of Main Parts
Original Instructions LIST OF MAIN PARTS Soft grip lock-off button ON/OFF switch trigger LED work light Pendulum switch Guide roller Quick-release blade clamp Saw blade Adjustable base Lock lever for base Battery pack (excluded) -
Page 11: Technical Specifications
Original Instructions TECHNICAL SPECIFICATIONS Product Description 18V Li-ion JIG SAW Rated voltage of battery Rated speed: 0-2300 min LED worklight Pendular positions Stroke height 25.4mm Cutting depth steel Cutting depth wood 65mm Quick change blades Acoustic pressure level LpA 76 dB(A) Acoustic power level LwA 87 dB(A) Level of vibration ah (K=1.5m/s2) - Page 12 Original Instructions battery pack’s charge before starting a big job or long period of use. Due to lithium-ion’s fade-free properties, the only time it is necessary to charge the lithium-ion battery pack is when the pack has reached the end of its charge. To signal the end of charge, power to the tool will drop quickly.
-
Page 13: Switch On And Off
Original Instructions Pull the battery pack out and remove it from the tool. Fig.2 OPERATION REPLACING SAW BLADES Disconnect the battery pack from the cordless jig saw. • Pull the lever of quick-change blade clamping holder. • Slide the saw blade into the locating groove with teeth pointing forward. Make sure that the back edge of the blade fits into the blade clamping holder and then release the lever of quick-change blade clamping holder. -
Page 14: Operation
Original Instructions Position 0 is the straight cutting. Positions I, II and III are orbital cutting. The aggressiveness of the cut increase as the knob is moved from one to three, with three being the most aggressive cut. LED WORK LIGHT The LED work light can light if you turn the tool on, which keep the work area to be lighted for checking clearly at first, and it lights also during your operation. - Page 15 Original Instructions Always remove the battery from the tool before performing any adjustment or maintenance operation. Take care not to expose this tool to the rain. Keep the ventilation openings clear and clean the product regularly. Repair of the tool must only be carried out by a qualified repair technician.
