Remote Head PELÉ
User Manual PELÉ

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PELE and is the answer not in the manual?

Questions and answers

Related Manuals for ABC-Products PELE

Summary of Contents for ABC-Products PELE

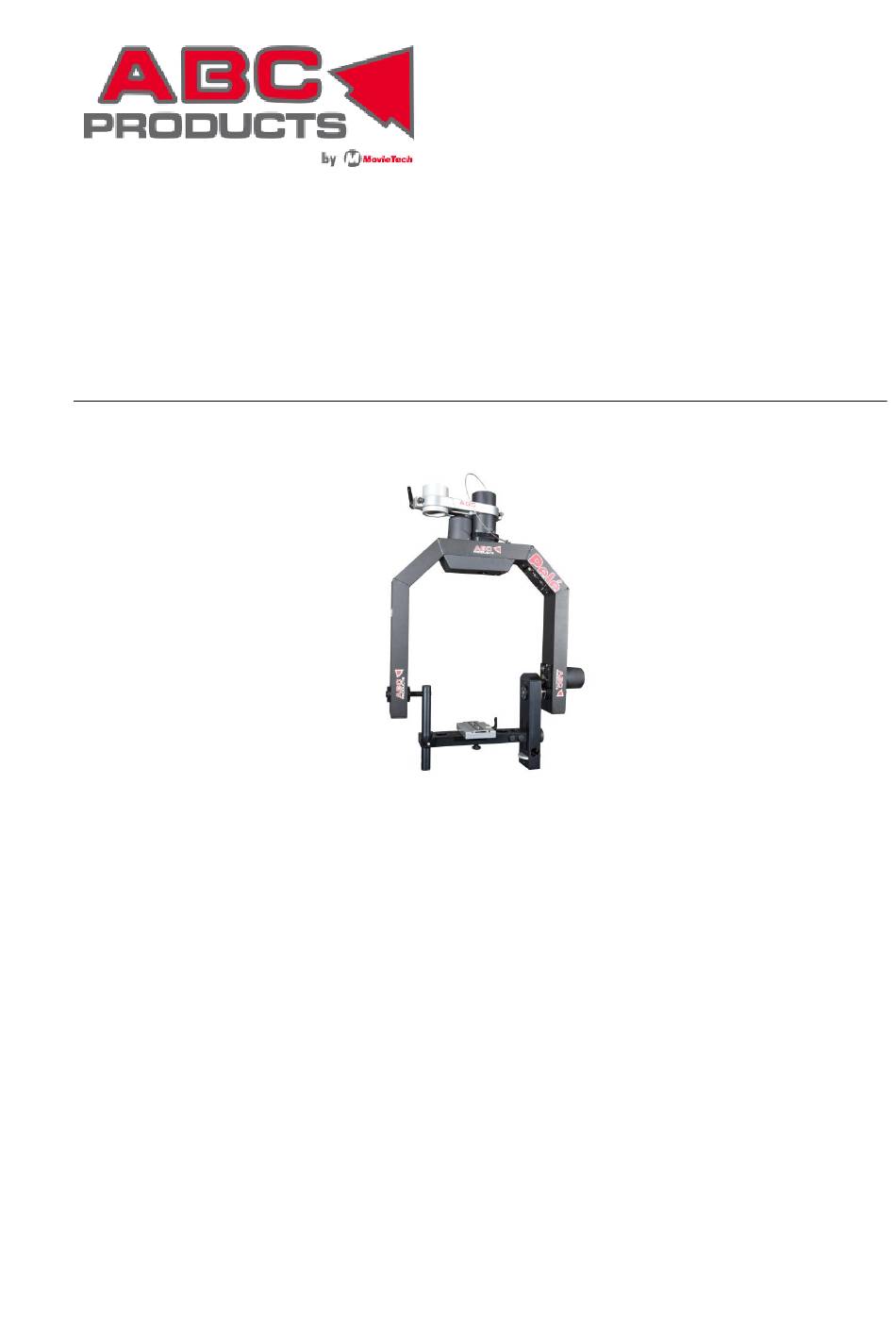

  • Page 1 Remote Head PELÉ User Manual PELÉ...
  • Page 2 Remote Head PELÉ Date of issue : 2018 /06 PELÉ Original user manual...

  • Page 3: Table Of Contents

    Trimming the camera on the tilt axis in the vertical direction 5.3.3 Trimming the camera on the tilt axis in the horizontal direction 5.3.4 Mounting Pelé with Euro Mount 5.3.5 Mounting Pele camera plate Mounting Zoom / Focus for broadcast lens 5.3.6 5.3.7 Mounting the camera The Pelé control panel...

  • Page 4: Information About The Device

    1. Information about the device 1.1 Scope of delivery 2-axis device 1 x Control panel with joystick, focus, zoom, direction, speed 1 x Base frame incl. Pan/ Tilt axis 1 x Camera base plate with 2x 3/8” bolts Euromount 80mm outside diameter Optional: 841220-0 1 x Cable set Zoom/Focus Fujinon Optional: 841210-0...

  • Page 5: Responsibilities Of The Manufacturer / Ec Declaration Of Conformity

    1.2 Responsibilities of the manufacturer / EC declaration of conformity EC declaration of conformity for machinery directive 2006/42/EC Annex II 1.A The manufacturer / distributor MovieTech AG Martin-Kollar-Str. 9 D-81829 Munich hereby explains, that the following product Product name: PELÉ Manufacturer: MovieTech Serial number:...

  • Page 6: Responsibilities Of The Operator

    1.3 Responsibilities of the operator Repair requirements Repair of the PELÉ is only permitted by the MovieTech AG or authorized contract partners. Disposal PELÉ should not be disposed of in domestic waste. It must be disposed of at a collection site (please check with your municipality) or through your dealer/manufacturer.

  • Page 7: External Interfaces

    1.5 External interfaces PELÉ may be mounted hanging or standing (upside down) at a sufficiently stable carrier unit suitable for the load (crane or dolly). PELÉ is equipped with a mitchell adapter (or optional on request with an 80mm outer diameter Euro adapter) for attachment to film devices such as dollies or camera cranes.

  • Page 8: User Manual

    Thank you for choosing PELÉ, we are thankful for your confidence. The PELÉ Remote Head allows gliding camera movements in horizontal and vertical directions. We wish you much joy and success with your new ABC products PELÉ! Your PELÉ has the following main features: - precise propulsion system - access to the programming - 360°...

  • Page 9: Marking In This User Manual

    2.1.2 Markings in this user manual Marking Meaning Draws your attention on the handling and effect of safety information. Makes you aware of a dangerous situation that can cause you significant injury or death, if not avoided. WARNING Makes you aware of a dangerous situation that can cause you mild to moderate injury, if not avoided.

  • Page 10: Service Address

    2.2 Service address MovieTech AG Martin-Kollar-Str. 9 D-81829 Munich E-mail: info@movietech.de www.movietech.de Tel.: +49 (0) 89 43 68 91 3 3. Safety instructions 3.1 General safety instructions - manufacturer  Before commissioning, ensure that you have read and understood the user manual. ...

  • Page 11: General Safety Instructions Usage

    3.2 General safety instructions - usage  Follow the instructions on the use of maximum 35 kg  Do not leave the assembled PELÉ unattended. Secure against unauthorized use.  Because of the danger of a lightning strike, adjust the operation when a storm approaches. ...

  • Page 12: Requirements For The Staff

    3.5 Requirements for the staff The operator of PELÉ should be able to control both the camera picture and the PELÉ radius of action. The operation of PELÉ must be always assessed in terms of the safety-related aspects. The responsibility for safe operation lies with the user. Distances between the camera and objects must always be assessed properly in terms of safety to avoid accidents and damages.

  • Page 13: Residual Hazards And Protective Measures

    3.8 Residual hazards and protective measures Transport / Storage:  When transporting the PELÉ, make sure that no point loads rest on single parts.  The remote head should be stored in a dry area.  The remote head may not be stored in direct sunlight. ...

  • Page 14: Installation And Operation

    5. Installation and operation 5.1 Main components RemoteHead Rahmen 2-axis Base brackets 2-axis with mounting plates, 1x 3/8“ + 1x ¼” bolts Operating panel with focus, zoom, speed, ramp, direction Control cable with ramp cable PELÉ Originalbetriebsanleitung...

  • Page 15: Optional Accessories

    Double V-mount Adapter (batteries are not included in the scope of delivery) Case for Pelé 5.2 Optionale accessories Option: Art. Nr. 8412-500 Power supply Option: Art.Nr. 8414-0 One - man operaion 5.3 Mounting Please open the transport case with caution. Use no sharp tools such as cutters, scissors etc that may cause damage to the frame parts or the cable.

  • Page 16: Trimming The Camera On The Base Plate In The Vertical Direction

    The releasing of the Remote Head with mounted counterweights on the crane has a sudden shooting up of the crane as a consequence! There is a risk of the camera crane tipping over! Always observe absolutely the correct order when assembling/ disassembling the crane and the remote head! In the remote base the wedge plate is performed with oblique grooves.

  • Page 17: Trimming The Camera On The Tilt Axis In The Vertical Direction

    5.3.2 Trimming the camera on the tilt axis in the vertical direction It is necessary to adjust the height of the camera with respect to the pivot around the tilt axis. For best results, trim the camera's center of gravity at the tilt axis. Open the height adjuster and the trim tube lock.
  • Page 18 Example A (O.K.) Camera focus in the amount of the bending axis. With optimal trimming the camera remains stationary in any tilted position. Example B ( Not O.K.) Camera focus above the tilt axis. If the trim is not correct, the camera tilts forward or backward.

  • Page 19: Trimming The Camera On The Tilt Axis In The Horizontal Direction

    5.3.3 Trimming the camera on the tilt axis in the horizontal direction Example A (O.K.) Put the camera exactly centered below the centerline. So you will achieve a uniform pivoting movement. Example B (not O.K.) The camera sits close to the tilt motor. That means, it supports the asymmetry and causes distortions.

  • Page 20: Mounting Pelé With Euro Mount

    5.3.4 Mounting PELÉ with Euro Mount CAUTION • The mount of the remote head has an outer diameter of 80mm. • Ensure that the euro mount connection of PELÉ is vertically inserted into the receptacle provided 80mm clamping and that this is closed safely! •...

  • Page 21: Mounting Zoom/Focus For Broadcast Lens

    5.3.6 Mounting Zoom/Focus for Broadcast lens Caution, for use of the control function zoom and focus and a broadcast lens with integrated motors is a set of cables from Canon Digital, Canon, Fujinon, Angénieux required! These following cables are available: Art.

  • Page 22: Mounting The Camera

    5.3.7 Mounting the camera To mount the camera 1 3/8“ +1/4” screws are included! Mounted accessories such as cameras must be secured in addition by professional security systems such as suitable steel cables or tensioning belts to avoid falling off! Caution! The remote head must be turned off for the electric leveling process! The axes of the remote head must never be moved under electric voltage, the transmission or engine can...
  • Page 23 Back control unit (1) Power on/off (2) LED-display voltage (3) Pan Speed (15) (4) Tilt Speed (17) (11) (5) Record (12) (6) Direction Focus switch (7) Focus wheel (16) (8) Zoom (13) (9) Direction for Zoom (14) (10) (10) Speed for Zoom (11) Ramp for Pan (12) Direction for Pan (13) 0-Point control Pan...

  • Page 24: Care Of The Remote Head

    6. Care of the remote head To clean the remote head frame and drive, we recommend a moderately strong air shower to remove dirt. Clean with a microfibre cloth moistened with dishwashing liquid. NOTE When packing the remote head into the transport box please ensure that the remote head is in a dry condition.
  • Page 25 Axis configuration for remote head Pelé / Alex Digital Page 1 of 15 Axis configuration for remote head Pelé / Alex Digital 1- Faulhaber software download „Motion Manager 4.x“ download at: http://www.faulhaber.com/n41656/i425657.html or from the provided CD Connect control panel to remote head (main control cable) MovieTech AG Germany Tel.: +49 (0) 89 / 43 68 91 3 Fax: +49 (0) 89 / 43 68 91 55...
  • Page 26 Axis configuration for remote head Pelé / Alex Digital Page 2 of 15 2- Cable connections Remove cover Pull out the 9-poled plugs (PAN/TILT) and connect the TILT-connection to the RS232 cable (not included in delivery) Connect the other end of the RS232 cable to the USB-Adapter and connect with the PC Switch on control pannel MovieTech AG Germany Tel.: +49 (0) 89 / 43 68 91 3...
  • Page 27 Axis configuration for remote head Pelé / Alex Digital Page 3 of 15 Start Faulhaber software (Motion Manager). The software has to find the link (Motor). If not: re-start program or control panel! Open sequence programe MovieTech AG Germany Tel.: +49 (0) 89 / 43 68 91 3 Fax: +49 (0) 89 / 43 68 91 55 http://www.movietech.de e-mail: info@movietech.de...
  • Page 28 Axis configuration for remote head Pelé / Alex Digital Page 4 of 15 Open TILT document (.MCL – File is on the provided CD) MovieTech AG Germany Tel.: +49 (0) 89 / 43 68 91 3 Fax: +49 (0) 89 / 43 68 91 55 http://www.movietech.de e-mail: info@movietech.de Erfüllungsort und Sitz: München...
  • Page 29 Axis configuration for remote head Pelé / Alex Digital Page 5 of 15 Sequence program (parameter) is shown 3- Programming the sequence program for the TILT- Axis: To change the parameters overtype the red marked parameters. REFIN sor1 ; Geschwindigkeit - Speed - Vitesse (min: 1, max: 30000) sp4500 mav1000 ;...
  • Page 30 Axis configuration for remote head Pelé / Alex Digital Page 6 of 15 ;------------------------------------------------------------------------ ;----------------------------- jpt10 ac30 ; Ramp position 2: Beschleunigungsrampe, Acceleration ramp, Rampe d'accélération (min: 1, max 30000) dec30 ; Ramp position 2: Abbremsrampe, Bracking ramp, Rampe de Ralentissement (min: 1, max 30000) jpf7 jmp1 ;------------------------------------------------------------------------...
  • Page 31 Axis configuration for remote head Pelé / Alex Digital Page 7 of 15 4- Transmission of the Sequence program of the TILT- Axis: Click on “Transfer file” Choose “Program Sequence” and confirm with OK MovieTech AG Germany Tel.: +49 (0) 89 / 43 68 91 3 Fax: +49 (0) 89 / 43 68 91 55 http://www.movietech.de e-mail: info@movietech.de...
  • Page 32 Axis configuration for remote head Pelé / Alex Digital Page 8 of 15 Transmission of “Faulhaber program TILT” to the motion control confirm with “Ja” (yes). MovieTech AG Germany Tel.: +49 (0) 89 / 43 68 91 3 Fax: +49 (0) 89 / 43 68 91 55 http://www.movietech.de e-mail: info@movietech.de Erfüllungsort und Sitz: München...
  • Page 33 Axis configuration for remote head Pelé / Alex Digital Page 9 of 15 Sequence program Enter command „en“ and click on „Send“ Enter „enprog“ and click on „Send“ Enter „eepsav“ and click on „Send“ Confirm with „OK“ MovieTech AG Germany Tel.: +49 (0) 89 / 43 68 91 3 Fax: +49 (0) 89 / 43 68 91 55 http://www.movietech.de...
  • Page 34 Axis configuration for remote head Pelé / Alex Digital Page 10 of 15 5- Programming of the sequence program for the PAN-Axis: Pull out the 9-poled plugs (PAN/TILT) and connect the PAN-connection to the computer Open Faulhaber software (Motion Manager). The software has to find the link (Motor).
  • Page 35 Axis configuration for remote head Pelé / Alex Digital Page 11 of 15 Open sequence programme open Open PAN document (.MCL – File is on the provided CD) MovieTech AG Germany Tel.: +49 (0) 89 / 43 68 91 3 Fax: +49 (0) 89 / 43 68 91 55 http://www.movietech.de e-mail: info@movietech.de...
  • Page 36 Axis configuration for remote head Pelé / Alex Digital Page 12 of 15 Sequential program is displayed. To change the parameters overtype the redmarked parameters. REFIN sor1 sp8000 ; Geschwindigkeit - Speed - Vitesse (min: 1, max: 30000) 1000 ; Joystick Ansprechempfindlichkeit - Joystick sensitivity - Sensibilité du Joystick (min: 10000, max: 1) ;-------------------------------------------------------------------- JPF3 ;Fault E2...
  • Page 37 Axis configuration for remote head Pelé / Alex Digital Page 13 of 15 ac30 ; Ramp position 2: Beschleunigungsrampe, Acceleration ramp, Rampe d'accélération (min: 1, max 30000) dec30 ; Ramp position 2: Abbremsrampe, Bracking ramp, Rampe de Ralentissement (min: 1, max 30000) jpf7 jmp1 ;------------------------------------------------------------------------...
  • Page 38 Axis configuration for remote head Pelé / Alex Digital Page 14 of 15 Choose “Program Sequence” and confirm with “OK”. Transmission of “Faulhaber program PAN” to the motion control confirm with “Ja” (yes). MovieTech AG Germany Tel.: +49 (0) 89 / 43 68 91 3 Fax: +49 (0) 89 / 43 68 91 55 http://www.movietech.de e-mail: info@movietech.de...
  • Page 39 Axis configuration for remote head Pelé / Alex Digital Page 15 of 15 Sequence Program Enter command „en“ and click on „Send“ Enter „enprog“ and click on „Send“ Enter „eepsav“ and click on „Send“ Confirm with „OK“ MovieTech AG Germany Tel.: +49 (0) 89 / 43 68 91 3 Fax: +49 (0) 89 / 43 68 91 55 http://www.movietech.de...
  • Page 40 Original user manual...
