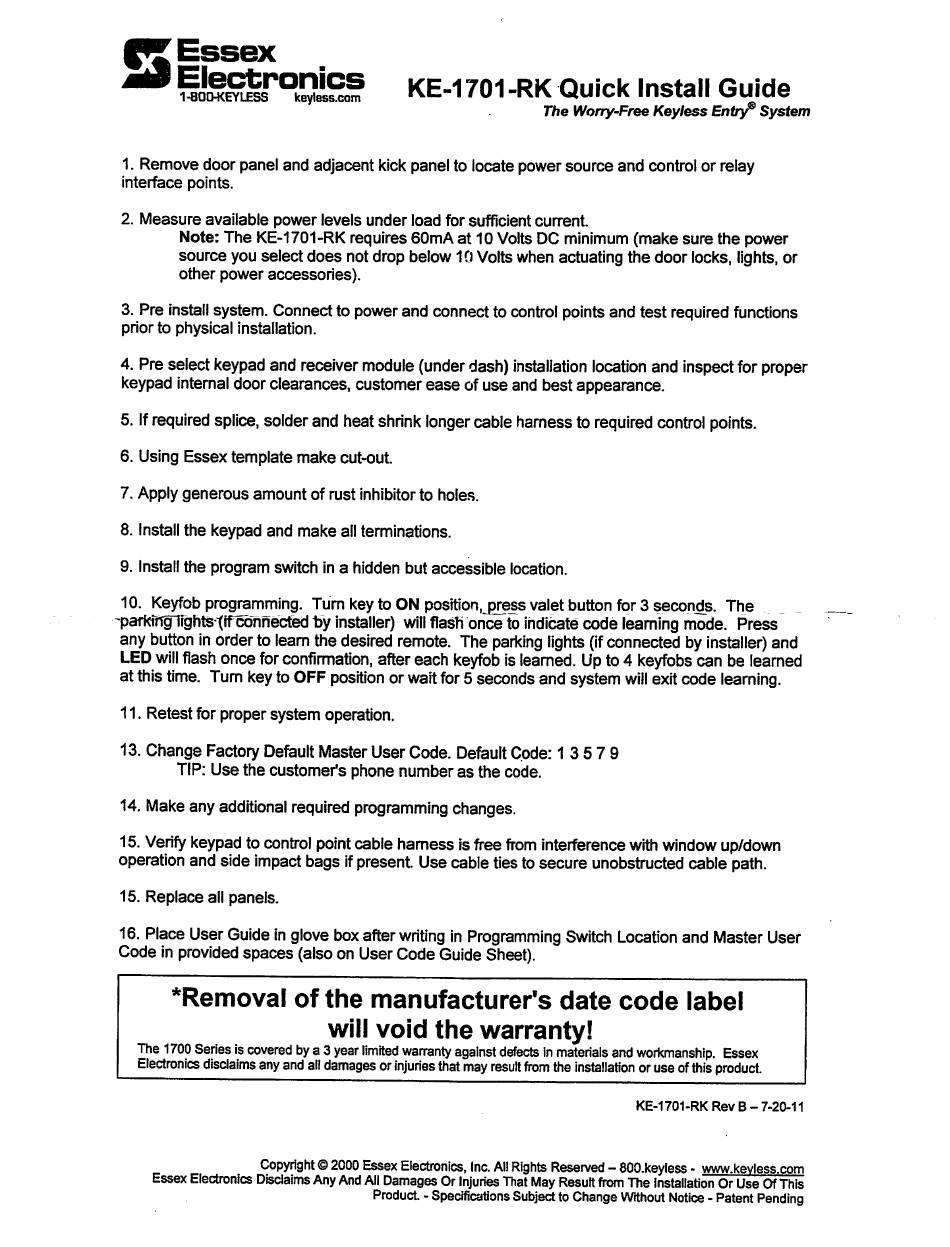

Essex Electronics KE-1701-RK Quick Install Manual

Essex
mm Electronics
1-80D-KEYLESS keyl8ss.com KE-1701-RK QUICk InStdll GU^jdC
The Wony-Free Keyless Enirjr System
1. Remove door panel and adjacent kick panel to locate power source and control or relay
Interface points.
2. Measure available power levels under load for sufficient current.
Note: The KE-1701-RK requires 60mA at 10 Volts DC minimum (make sure the power
source you select does not drop below 10 Volts when actuating the door locks, lights, or
other power accessories).
3. Pre install system. Connect to power and connect to control points and test required functions
prior to physical installation.
4. Pre select keypad and receiver module (under dash) installation location and inspect for proper
keypad intemal door clearances, customer ease of use and best appearance.
5. If required splice, solder and heat shrink longer cable harness to required control points.
6. Using Essex template make cut-out.
7. Apply generous amount of rust inhibitor to holes.
8. Install the keypad and make all terminations.
9. Install the program switch in a hidden but accessible location.
10. Keyfob programming. Tum key to ON position, press valet button for 3 seconds. The
^pafkin|rtightsXifK)nnected try installer) will flash once to indicate code learning mode. Press
any button in order to leam the desired remote. The parking lights (if connected by installer) and
LED will flash once for confirmation, after each keyfob is teamed. Up to 4 keyfobs can be teamed
at this time. Tum key to OFF position or wait for 5 seconds and system will exit code leaming.
11. Retest for proper system operation.
13. Change Factory Default Master User Code. Default Code: 1 3 5 7 9
TIP: Use the customer's phone number as the code.
14. Make any additional required programming changes.
15. Verify keypad to control point cable harness is free from interference with window up/down
operation and side impact bags if present. Use cable ties to secure unobstructed cable path.
15. Replace all panels.
16. Place User Guide In glove box after writing in Programming Switch Location and Master User
Code in provided spaces (also on User Code Guide Sheet).
"Removal of the manufacturer's date code label
will void the warranty!
The 1700 Series is covered by a 3 year limited warranty against defects in materials and workmanship. Essex
Electronics disclaims any and aii damages or injuries that may result from the Installation or use of this product.
KE-1701-RK Rev B - 7-20-11
Copyright © 2000 Essex Electronics, Inc. All Rights Reserved — SOO.keyiess - www.kevless.com
Essex Electronics Disclaims Any And All Damages Or Injuries That May Result from The Installation Or Use Of This
Product - Specifications Subject to Change Without Notice - Patent Pending
