Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
·
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time without notice.
·
These instructions contain important care, cleaning, and
warranty information -
please leave instructions for the
consumer
.
ORDERING INFORMATION
SPACITY SKIRTED 1PC Toilet
305mm ..................................................................K-28020T-S
SPACITY SKIRTED 1PC Toilet
400mm ..................................................................K-28021T-S
SPACITY 1PC Toilet HC
305mm ...............................................................K-28020T-HC
SPACITY 1PC Toilet HC
400mm ...............................................................K-28021T-HC
Elongated Quiet-Close Toilet Seat ............................K-20970T
C3 Toilet Seat With Bidet Functionality (Not Provided)
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA
NO.1 KOHLER STREET, ECONOMIC DEVELOPMENT ZONE OF FAKU COUNTY, SHENYANG LIAONING PROVINCE, PRC
1535881-T2-A
S-TRAP 305mm K-28020T-S/K-28020T-HC
S-TRAP 400mm K-28021T-S/K-28021T-HC
·
·
·
·
360
305mm(
)..............................................K-28020T-S
360
400mm(
)..............................................K-28021T-S
360
305mm(
C3
360
400mm(
C3
90
C3
2
528137
8
256410
1
110400
©
Copyright Kohler China Investment Co., Ltd. 2022
-1-
©
SPACITY
INSTALLATION INSTRUCTIONS
FLOOR STANDING TOILET
) ........................K-28020T-HC
) ........................K-28021T-HC
..........................................K-20970T
(
)
POST CODE:
256410
POST CODE:
-
:
110400
2022
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kohler SPACITY K-28020T-S
Summary of Contents for Kohler SPACITY K-28020T-S

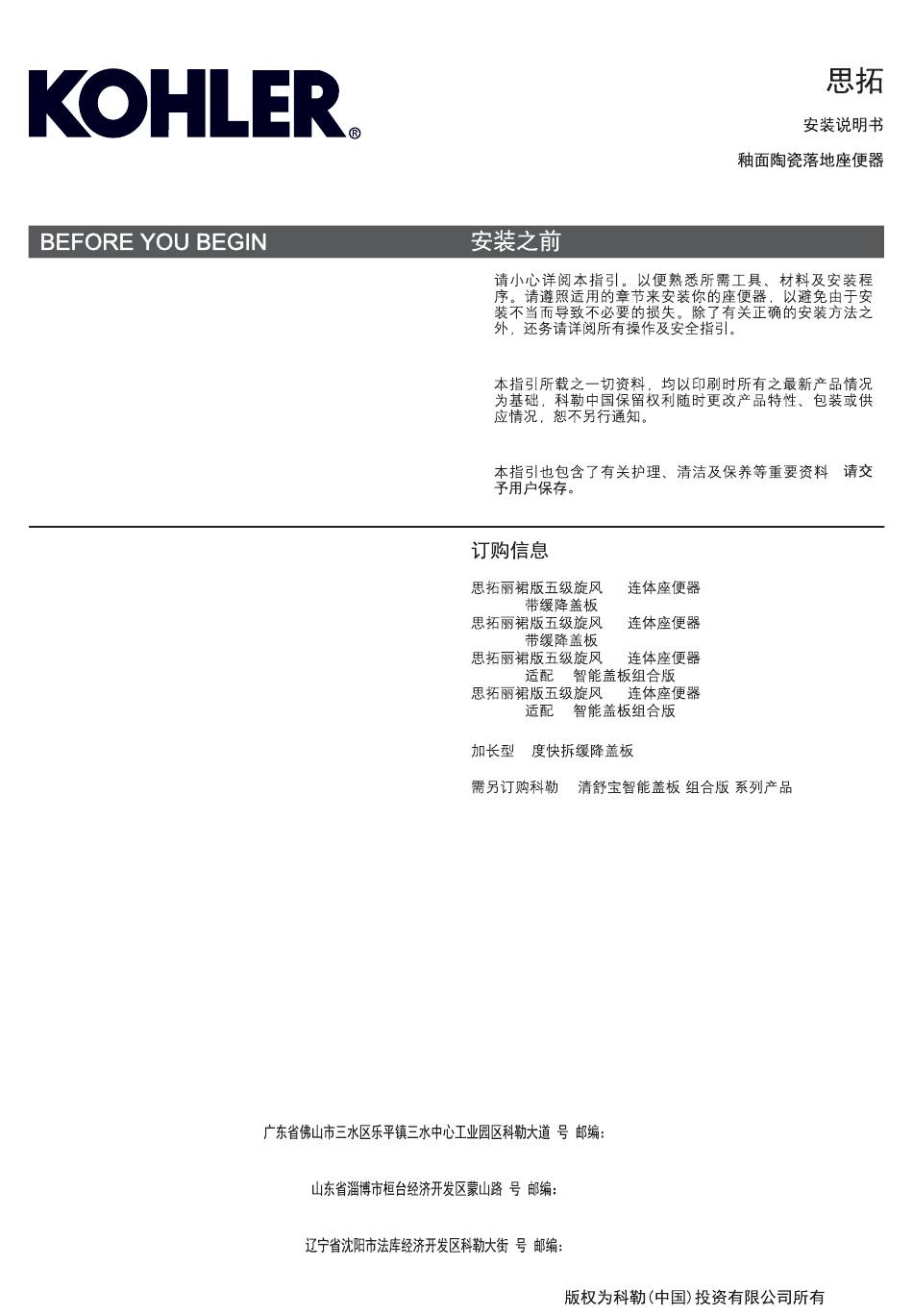

- Page 1 Elongated Quiet-Close Toilet Seat ......K-20970T ..........K-20970T C3 Toilet Seat With Bidet Functionality (Not Provided) No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137 528137 8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA...
-
