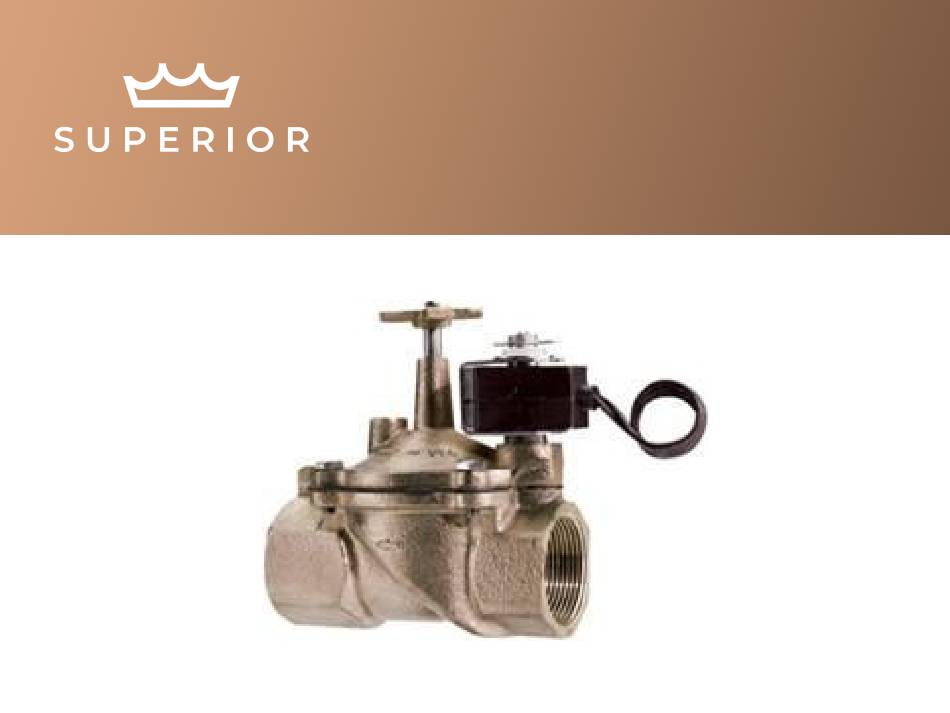

- Page 1 Buckner Model VBDW Disassembly Instructions and Troubleshooting...
- Page 2 Index Disassembly Instructions Solenoid (2-4) Valve (5, 6) Repair Kits (11) Troubleshooting Valve will not close (7) Valve will not open electrically (9, 10) Water weeps past valve (7, 8)
- Page 3 Solenoid Disassembly Instructions 1. Remove the metal clip at the 2. Lift coil and U-frame off of the top, then remove the plastic solenoid post. spacer and metal washer that sits on top of the metal U-frame.
- Page 4 Solenoid Disassembly Instructions 3. Using a 5/8” wrench, unscrew Photo below shows solenoid cavity solenoid post from valve bonnet. and solenoid post assembly. The wrench can be applied to the flats in the threaded base.
- Page 5 Solenoid Disassembly Instructions Photo below shows filter material Photo below shows from interior of lower section of components of the 3-way post assembly. The filter prevents solenoid post. particulates from entering upper diaphragm chamber.
- Page 6 Valve Disassembly Instructions 1. Remove top bolts, then lift 2. Remove spring and bonnet assembly off of valve diaphragm assembly from valve body. body...
- Page 7 Valve Disassembly Instructions Photo below shows top side of Photo below shows bottom diaphragm assembly. side of diaphragm assembly which includes cone shaped seat which descends down into brass seat of valve body when valve is in closed position...
-
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM: PROBLEM: Valve will not close, or closes but weeps. Valve will not close. CAUSE #1: CAUSE #2: Debris in valve body or embedded in Clogged filter in solenoid is not allowing rubber seat. water to pass into diaphragm chamber. SOLUTION: SOLUTION: Disassemble valve and check for debris... - Page 9 Troubleshooting PROBLEM: Water weeps past valve and out of top of solenoid post. CAUSE: Malfunctioning solenoid. The solenoid plunger is not completely sealing exhaust port located at top of post. SOLUTION: Disassemble solenoid post and plunger assembly and look for debris that could prevent plunger from sealing exhaust port.
- Page 10 Troubleshooting PROBLEM: Valve will not open electrically or manually. CAUSE: Torn diaphragm. This can be confirmed by attempting to open the valve electrically or manually (by turning screw at top of solenoid post clockwise as many turns as possible). If water exhausts continuously out of solenoid exhaust port located at top of solenoid post but valve does not open,...
- Page 11 Troubleshooting PROBLEM: Valve will not open electrically. CAUSE: Solenoid is not energizing. This could be due to: 1) no station output from the controller 2) broken or disconnected wire 3) bad solenoid coil. SOLUTION: Using a volt meter, check the station power output from the controller.
- Page 12 Repair Kits Solenoid 24 VAC Coil Kit (includes coil, U-frame, and retainer clip): HDCKIT Solenoid Post and Plunger Assembly: P510530KIT 24 VAC Solenoid Assembly (includes coil, U-frame, retainer clip, post and plunger): VDWASKIT Bonnet Repair Kit (includes bonnet and flow-control stem): ¾” & 1”- VPRDW0710BKIT, 1 ¼”-VPRDW12BKIT 1 ½”-VPRDW15BKIT, 2”-VPRDW20BKIT Diaphragm Repair Kit (includes diaphragm assembly and spring): ¾”...
