LG LG9600 Quick Reference Manual

LG9600 Quick Reference Guide
Some of content in this user guide may be different from your phone depending on
the software of the phone or your service provider. Features and specifications
might be subject to change without prior notice.
Bluetooth QD ID B015808
Visit www.telusmobility.com/userguides for the User
Guide fully illustrated on how to use your phone.
Or go to LG website at
http://ca.lgservice.com/index_b2c.jsp to browse it.
P/N: MSAB0034401 (1.0) (Assy P/N: AMBA0157201)
H
Receiving Calls
1 1 . . When the phone rings or vibrates, simply press
to answer.
Note
›
If you press or (the side keys), while the phone is ringing, the ringing or vibration is
muted for that call.
2 2 . . Press to end the call.
Bluetooth
®
The LG9600 is compatible with devices that support the Bluetooth Headset, Handsfree, Dial
®
Up Networking, Stereo, Contact Access, Basic Printing, Object Push, File Transfer, Basic
Imaging and Human Interface profiles.* You may create and store 20 pairings within the
LG9600 and connect to one device at a time. The approximate communication range for
Bluetooth wireless technology is up to 30 feet (10 meters).
®
Notes
›
Read user guide of each Bluetooth ® accessory that you are trying to pair with your phone
›
because the instructions may be different.
The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of
such marks by LG Electronics is under license. Other trademarks and trade names are those
›
of their respective owners.
Your phone is based on the Bluetooth ® specification, but it is not guaranteed to work with
all devices enabled with Bluetooth ® wireless technology. Phone does not support ALL
Bluetooth ® OBEX Profiles.
Send
Message
(Text, Multimedia) Each message has a destination address and text
dependent upon the type of message you want to send.
Name Card Allows you to view all of your own Contact information including name,
phone numbers, and email address.
My Pictures Allows you to send messages with Text and Image.
My Videos Allows you to send messages with Text, Video, and Audio.
My Sounds Allows you to send messages with Text and Sound.
Calendar Allows you to send events saved in phone to the paired device.
Drawing Allows you to send drawings with Text, Image/ Video, and Audio.
Getting Started With Your Phone
ENGLISH
Installing the Battery Removing the Battery
1 1 . . Insert the battery into the opening on the 1 1 . . Turn off the phone, then push down on
back of the phone, then push the battery the battery cover button (located on the
down until the latch clicks. bottom of your phone).
2 2 . . While holding up the battery cover
bottom, lift and up the battery cover.
3 3 . . Lift the bottom of the battery out using
the fingertip bottom, then remove it.
Charging the Battery
Warning!
›
Warning! Use only the charger provided with the
phone. Using any charger other than the one included
with the LG9600 may damage your phone or battery
1 1 . . Plug the end of the adapter into the phone's
Notice
charger port and the other end into an electrical
outlet.
Please make sure that the LG logo faces up
2 2 . . The charge time varies depending upon the
before inserting a charger, data cable, etc
battery level.
into the charger port of your phone.
TELUS mobile music
TELUS mobile music lets you browse, preview and download music directly to your phone so you
can listen to your favourite tunes while on the go. Select the TELUS mobile music shortcut key
from the home screen to access mobile music. For more information on TELUS mobile music,
please visit: www.telusmobility.com/mobilemusic.
Launches the TELUS mobile music player. M M u u s s i i c c P P l l a a y y e e r r
1 1 . . Touch
[MENU].
2 2 . . Touch Play.
3 3 . . Touch mobile music.
4 4 . . Select language.
5 5 . . Use the keys to adjust volume when a song is playing.
6 6 . . Select Options, then select:
- S S h h u u f f f f l l e e (1) to randomize your playlist
- R R e e p p e e a a t t (2) to replay the active song.
7 7 . . Shop, select the shopping cart from the main Music Player menu to access
download able music.
Create
Contact
Allows you to add a new number to your Contact List.
Message Allows you to send text message and multimedia message.
Alarm Allows you to set up to ten alarms. At the alarm time, an Alarm notification
will be displayed on the LCD screen and the alarm will sound.
My Pictures Take pictures straight from your phone.
My Videos Lets you record a video message with sound.
My Sounds Allows you to select a desired sound or record a new sound.
Calendar Allows you to keep your agenda convenient and easy to access. Simply
store your appointments and your phone will alert you with a reminder you
set.
Drawing This function allows you to draw freely so that you can simply save the
image, Send it in a message or set it as a Wallpaper.
Note Allows you to add, read, edit, and erase notes.

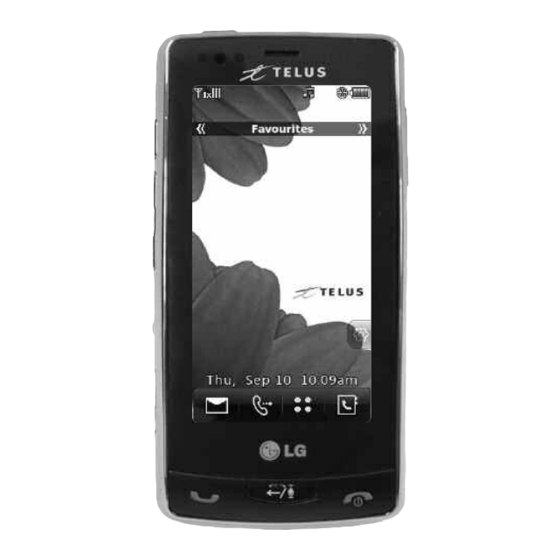

Phone Overview
Earpiece
Unlock/Lock Key
Light Sensor
Proximity Sensor
microSD Memory Card
™
Touch Screen
Displays incoming calls,
Digital Camera
messages and indicator icons
Allows you to take
as well as a wide variety of
sharp, high-resolution
content you select to view.
digital pictures.
Shortcut Menu Touch Key
Touch Soft Keys
Power/END Key
SEND Key
Clear/ Voice Command/
Voice Recorder Key
2.5mm Headset jack
Camera Key
Side Volume Keys
Cover Lock Latch
Accessory Charger Port
Connects the phone to the battery
charger, USB cable, or other
compatible accessory.
Menus Overview
Settings
My Pictures Bookmarks
My Videos Navigator
Left Menu
Games&Apps
Call My Sounds
Calendar Tools
Contact Download
Drawing
Call History
Call History
Note
Pictures
Voicemail
Keypad
Videos
New Number
Play Ringtones
Favourites Bluetooth
Games
E-mail
mobile music Apps
Send My Pictures
IM
My Videos
Message
My Sounds TV & Radio
Name Card
My Ringtones
Quick Menu
Contact list Voicemail
My Pictures
Games
My Videos
mobile TV
Message List
My Sounds
mobile radio
Calendar
Alarm
Drawing
Camera
Connect
mobile music
Create
Wireless Web
Bluetooth
My Media
Contact
My Email 2.0
Message Wireless Web
Messenger 2.0
Alarm
Go to Site
Menu Access
Touch the MENU Touch Key to have access to phone menus. To access the MENU, unlock
on the right side of your phone or touch
first by pressing down the unlock key
at the bottom center of your phone.
back to standby mode, touch or press
Play
mobile music
TELUS mobile music lets you browse, preview and download music directly
to your phone so you can listen to your favourite tunes while on the go.
Select the TELUS mobile music shortcut key from the home screen to
access mobile music. For more information on TELUS mobile music, please
visit: www.telusmobility.com/mobilemusic.
My Pictures Allows you to view and manage photos stored in the device.
My Videos
Allows you to view and manage videos stored in the phone.
My Sounds
Allows you to play my sounds stored in the device.
My Ringtones
Allows you to select a desired ringtone, download a new ringtone.
Games Allows you to download games and applications from the Media Center
server. Choose the software you want from the list displayed on the screen.
mobile TV TELUS mobile TV allows access to a wide range of commercial program. For
more information, visit www.telusmobility.com/tv.
mobile radio
TELUS mobile radio allows access to a wide range of commercial free music
on your phone. For more information on TELUS mobile radio, please visit:
www.telusmobility.com/mobileradio.
Turning the Phone On and Off
Turning the Phone On
1 1 . . Install a charged battery or connect the phone to an external power source.
2 2 . . Press for about 3 seconds until the LCD screen lights up.
Turning the Phone Off
1 1 . . Press and hold until the display turns off.
Making Calls
1 1 . . Make sure the phone is turned on. If not, press for about 3 seconds.
2 2 . . Touch
and touch the phone number (include the area code if needed).
3 3 . . Press or touch
.
Notes
›
›
lf the phone is locked, press the Unlock Key on the right side of your phone.
If the phone is restricted, you can only dial phone numbers saved in the Emergency
Numbers or your Contact List. To turn off this function:
Security -> Enter lock code -> Restrictions -> Enter lock code -> Calls -> Outgoing Calls ->
Allow All.
4 4 . . Press to end the call.
How to Use Menus
This section provides a quick glance of features on your phone.
Call
Contact
Allows you to view your Contact List.
Call History Allows you to view the list of all calls; up to 270 entries.
Voicemail
Allows you to view the number of new voice messages recorded in the
Voicemail box. Once you exceed the storage limit, old messages are
overwritten. When you have a new voice message, your phone will alert
you.
New Number Allows you to make a new call number.
Favourites Allows you to create your Favourites contact list.
. To go
Connect
Wireless Web
The Wireless Web feature allows you to view Internet content, especially
designed for your mobile phone. For specific information on Wireless Web
access, visit www.telusmobility.com
Bluetooth The LG9600 is compatible with devices that support the Bluetooth
Headset, Handsfree, Dial Up Networking, Stereo, Phonebook Access, Basic
Printing, Object Push, File Transfer, Basic Imaging and Human Interface
profiles.*
My Email 2.0
Mobile Email is an application downloadable from the Messaging Menu.
Don't miss an important email. Thanks to Mobile Email, you can get your
emails on your phone, while you're on the go. Mobile Email works with
many providers, including Yahoo!, and Telus. Get alerts from your LG9600
when new email has arrived.
Messenger 2.0 Allows you to send and receive an Instant Message at any time.
Go to Site Allows you to connect to a web site and view internet content.
Bookmarks
Set bookmarks to directly access your favorite sites.
Navigator Get real-time, voice-prompted and visual turn-by-turn directions, find
points of interest along your route, and view detailed coloured maps with
TELUS Navigator. For more information, please visit:
www.telusmobility.com/navigator. Additional fees apply.
-> Settings -> Phone Settings ->
®
