GLM-77 Blood Glucose Meter
User Manual
INTRODUCTION
Thank you for choosing the GLM-77 blood glucose meter. The meter associated with the
GLS-77 blood glucose test strip is designed to quantitatively measure the concentration of
glucose in capillary whole blood by persons with diabetes or by healthcare professionals for
monitoring glucose in the home or in healthcare facilities.
Please read this manual carefully before using your GLM-77 blood glucose meter. If you have
any questions or requirements, please contact us or your local distributor.
1
Advertisement
Table of Contents
Related Manuals for YASEE GLM-77
Summary of Contents for YASEE GLM-77
- Page 1 Please read this manual carefully before using your GLM-77 blood glucose meter. If you have any questions or requirements, please contact us or your local distributor.
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1.ABOUT THE METER ……………………………………………………………………………………………………………3 2.GLM-77 BLOOD GLUCOSE METER AND LCD WINDOW………………………………………………………5 3.GLS-77 BLOOD GLUCOSE TEST STRIP………………………………………………………………………………….6 4.SETTING METER PARAMETERS…………………………………………………………………………………………...7 5.PREPARING FOR BLOOD SAMPLING…………………………………………………………………………………..7 6.CHECKING THE CODE………………………………………………………………………………………………………...8 7.PERFORMING A TEST WITH GLS-77 BLOOD GLUCOSE TEST STRIP…………………………………..9 8.UNDERSTANDING YOUR TEST RESULT……………………………………………………………………………...11 9.MEMORY RECALL……………………………………………………………………………………………………………12... -
Page 3: About The Meter
Intended Use intended for in vitro diagnostic use with capillary whole blood. The meter should not The GLM-77 blood glucose meter is designed be used for diagnosis of diabetes or for to quantitatively measure the concentration of testing newborn infant (neonatal testing). - Page 4 7. Interferences: Acetaminophen, Dopamine, The Package of the GLM-77 Blood Glucose L-DOPA, Ibuprofen, Salicylate, Bilirubin, Meter contains: Creatinine, Cholesterol, Triglycerides, Uric acid, EDTA, Galactose, Gentisic acid, 1. GLM-77 Blood Glucose Meter Glutathione, Haemoglobin, Heparin, 2. Lancing Device with CE Marking Maltose, Methyl-DOPA, Tolbutamide, 3.
-
Page 5: Glm-77 Blood Glucose Meter And Lcd Window
GLM-77 BLOOD GLUCOSE 1. TEST RESULT 2. DATE: Month/Date. METER AND LCD WINDOW 3. DAY AVG: Appears when the meter Study the meter by reading the diagram. is in the memory mode while recalling 7/14/21/28 day test averages. Blood Glucose Meter 4. -
Page 6: Gls-77 Blood Glucose Test Strip
GLS-77 BLOOD GLUCOSE TEST STRIP IMPORTANT INFORMATION 1. Do not use damaged test strips or test strips changed in any way. Use test strip immediately after removing it from the vial. Recap the vial immediately and close it tightly. 2. GLS-77 Blood Glucose Test Strips are intended for in vitro diagnostic use with capillary whole blood or control solution. -
Page 7: Setting Meter Parameters
SETTING METER PARAMETERS Prepare for Blood Sampling Adjustable Setting Date, Time Lancing Device When the battery is installed the first time or Used with lancet to obtain a blood sample. Used with lancet to obtain a blood sample. every time it’s replaced, the meter will 1. -
Page 8: Checking The Code
ADJUSTABLE LANCING DEVICE If you miss seeing the code number, remove the test strip and reinsert it into the meter. If the two numbers match you may begin 1.Remove the depth 2.Insert a lancet into the 3.Twist off the protective disk 4.Replace the depth blood testing. -
Page 9: Performing A Test With Gls-77 Blood Glucose Test Strip
PERFORMING A TEST WITH GLS-77 BLOOD GLUCOSE TEST STRIP 1. Wash your hands in warm, soapy water. Rinse and dry completely. Warm your fingers to increase blood flow. Remove new test strip from vial. Be sure to tightly re-cap the via after removing test strips. Insert the test strip immediately into strip slot as illustrated. - Page 10 6. You result will show up in 8 seconds, and it is automatically recorded in the meter’s memory. You may also want to record the result in your log book. 7. If the test is being done within 2 hours after meal, press“S”button to change the setting from AC to PC (9.2).If the test is a control...
-
Page 11: Understanding Your Test Result
UNDERSTANDING YOUR TEST RESULT-NORMAL BLOOD GLUCOSE RANGE • The normal blood glucose range is 70 to 100 mg/dL (3.9 to 5.6 mmol/L) for fasting and less than 140 mg/dL (7.8 mmol/L) two hours after meals for a non-diabetic adult. Consult your healthcare professional to find out your target blood glucose value. -
Page 12: Memory Recall
MEMORY RECALL The GLM-77 Blood Glucose Meter can automatically store up to 180 results and automatically calculate your average results of 7-, 14-, 21-, 28- days on both AC and PC. When recalling the results, each single result appears from the latest to the earliest with corre- sponding time and date . -
Page 13: Control Solution (Optional)
2. Gently shake the control solution, 1. To practice the test procedure. discard the first drop and apply the 2. To make sure that the GLM-77 Blood Glucose control solution to the right or left edge of strip. Make sure that the control... -
Page 14: Meter Specifications
METER SPECIFICATIONS Assay Method Electrochemical biosensor Sample Size 0.8μL 10℃ - 40℃ (50℉~104℉) Operating Temp. Range Operating Relative Humidity 20% - 80% RH Acceptable Hematocrit Range 25~65% Measuring Range 20 - 600 mg/dL or 1.1 - 33.3 mmol/L Measuring Time 8 seconds Memory Capacity 180 test results with time and date... -
Page 15: Taking Care Of Your Meter
Electromagnetic Compatibility (e.g. unshielded intentional RF sources), as these can interfere with the proper operation It is the manufacturer's responsibility to provide equipment electromagnetic compatibility TAKING CARE OF YOUR METER information to the customer or user. When the meter is dirty, please clean it by It is the user's responsibility to ensure that a wiping gently with a cotton swab or cloth. - Page 16 REPLACING THE BATTERY NOTE: ・EVERY TIME WHEN YOU REPLACE THE The GLM-77 blood glucose meter's battery BATTERY, THE METER WILL TURN ON life will vary depending on usage, so always AUTOMATICALLY ENTERING THE TIME/ DATE keep a spare available. SETTING.
- Page 17 TO REPLACE THE BATTERY 1. Make sure the meter is turned off. Let the front of the meter rest in the palm of your hand. Slide battery compartment door open. 2. Remove the old battery and insert the new 3V Lithium battery into the battery compartment, with the "+"...
- Page 18 CLEANING METER Caring for your GLM-77 Blood Glucose Meter is easy - just keep it free of dust. If you need to clean it, please follow the guidelines below carefully to help you get the best performance : • Make sure the meter is turned off •...
-
Page 19: Disposing Your Meter
DISPOSING YOUR METER During blood glucose measurement the meter itself may come into contact with blood. Used meters may carry a risk of infection. Please dispose your used meter properly after removing the battery according to the regulations applicable in your country. For information about correct disposal please contact your local council and authority. -
Page 20: Displaying Messages And Troubleshooting
DISPLAYING MESSAGES AND TROUBLESHOOTING As listed below are problems that may appear with your GLM-77 Blood Glucose Meter, when performing a test. These messages may help you to identify certain problems. If you have any concerns or see any other error display, please contact us or the local distributor for help. - Page 21 SYMBOLS CONVEY For in vitro diagnostic B application Lot number Please consult instructions for use Caution,consult accompanying CE Certification 0197 document Temperature Manufacturer limitation/Store at Discarded glucose meters and batteries must be discarded in Authorized containers labelled with WEEE. representative Please comply with local regulations and take appropriate protective measures to dispose of all wastes.
- Page 22 0197 CE Certification YASEE BioMedical Inc. NO.9 Xiuyuan Road, High-tech Industrial Development Zone, Qingdao City, Shandong, 266000, China. Tel: 0086-532-68012808 Email: sales@yasee.org Web: www.yasee-med.com Prolinx GmbH Brehmstr. 56, 40239 Duesseldorf Germany...
- Page 24 Blood Glucose Meter MODEL：GLM-77 AUTO CODE year warranty Bi-directional 5 years warranty less blood sample 8 seconds test blood sampling...
Need help?
Do you have a question about the GLM-77 and is the answer not in the manual?
Questions and answers
Switch on/off
To switch the YASEE GLM-77 on, insert a test strip into the meter. The meter will turn on automatically. To switch it off, remove the test strip, and the meter will shut down automatically.
This answer is automatically generated

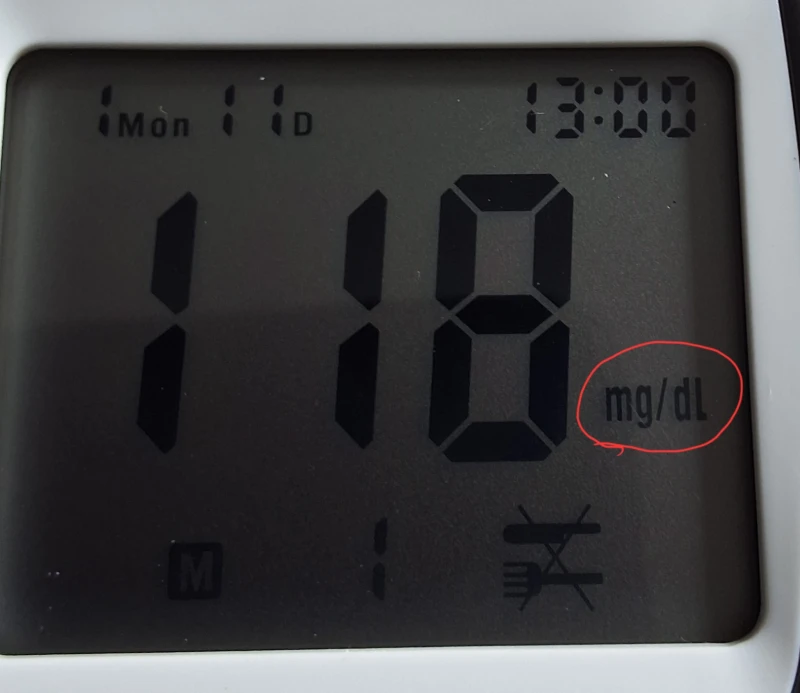

How to change from mmol to gm
How do I change the glucose display from mg to mmol. Thanks if you can help.
