Chiller Installation Instruction
READ ALL INSTRUCTIONS BEFORE UNPACKING THE PRODUCT
INSTRUCTIONS THAT, IF IGNORED, COULD RESULT IN DEATH OR SERIOUS INJURY CAUSED BY INCORRECT HANDLING
OR INSTALLATION OF THE PRODUCT. THESE INSTRUCTIONS MUST BE OBSERVED FOR SAFE INSTALLATION.
This product must be installed by a fully insured and licensed HVAC installer.
The chiller uses R410A refrigerant. WOODBRIDGE does not offer nor is responsible for refilling the refrigerant. Please hire a
fully insured and licensed HVAC installer for maintenance, refrigerant refill, troubleshoo�ng, and repair of the chiller.
We are not responsible for local codes compliance for this product. Building and plumbing codes may vary from state-to-
state in accordance to your loca�on. We are not responsible for providing any compliance cer�fica�ons. Under no
circumstances we shall not be liable for any incidental damage sustained in connec�on with this product. Neither
manufacturer, nor distributor, nor retailer is responsible for water damage or flood caused by the usage of this product.
Under no circumstances we shall not be liable for any and all fees, cost of installa�on/reinstalla�on/removal, subsequent
damage or transporta�on costs in case of the product defect.
The connection instructions in this manual are for general reference. The actual connections may varyby the type of cold
plunge tubs you purchase.

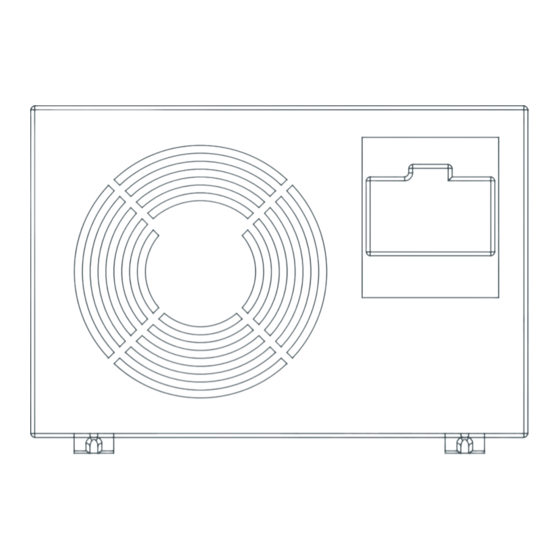

BCH1000
WCH2000
2 PEOPLE ARE REQUIRED TO LIFT AND DURING
TWO PEOPLE
LIFT REQUIRED
ENTIRE INSTALLATION OF THIS PRODUCT
www.woodbridgebath.com
1
Advertisement
Related Manuals for Woodbridge BCH1000
Summary of Contents for Woodbridge BCH1000
- Page 1 This product must be installed by a fully insured and licensed HVAC installer. The chiller uses R410A refrigerant. WOODBRIDGE does not offer nor is responsible for refilling the refrigerant. Please hire a fully insured and licensed HVAC installer for maintenance, refrigerant refill, troubleshoo�ng, and repair of the chiller.
- Page 3 2.Installa�on Instruc�on Chiller installa�on ① Install the chiller in a stable place to avoid the impact of water level backflow. The ice tub’s inlet hole should be set to a higher level than the inlet of the chiller. ② Install the chiller in a clean place. Avoid too much debris gets into the tub to block the chiller system. ③...
- Page 6 KEY DESCRIPTION ICON Working Logic Display interface And how to do www.woodbridgebath.com...
- Page 7 7 7 7 7 7 7 6 6 6 6...
-
Page 9: Wiring Diagram
Don’t run the Ozone system when people are in the chiller during cooling or hea�ng because too high zone concentra�on may affect respiratory tract. The ozone life spam is ten thousand hours a�er it reaches those hours, you need to change to a new ozone generator. The filter mainly filters hair, dandruff, etc. -
Page 10: Circuit Wiring Diagram
5. Circuit Wiring Diagram Fault code www.woodbridgebath.com... - Page 11 www.woodbridgebath.com...
- Page 12 Parameter list code Menu content Range Ex-factory Company Temperature return difference 0.3-10 ℃ Temperature correction -5-5 ℃ Inlet water temperature correction -5-5 minute Start delay minute 0~9999 8888 Menu password 1-45 minute Defrosting time 10-240 Defrosting cycle minute Fahrenheit and Celsius display switching Upper temperature limit 2-43 ℃...
- Page 13 Parameter annota�on When the water temperature is equal to or higher than the target temperature, start cooling; when the water temperature is equal to or less than the target temperature , start heating When the displayed temperature deviates from the actual temperature, this function can be used for calibration. When there is a deviation between the inlet water temperature and the displayed water temperature, you can use this function to correct it.
-
Page 15: Useful Tips
Useful Tips 1. lt is normal to have condensa�ons on the hoses, chiller housing cover, or around the tub. The condensa�ons happen when these tub/chiller parts are colder than the air around. 2. The fan in the chiller starts running 3 minutes a�er the machine opera�on is normal. 3. - Page 16 DO NOT USE: Abrasive sponges or cloth. Never use steel, wool, or wired brushes that will permanently scratch Retain these installation instructions for future reference! Thank you for using WOODBRIDGE products! WOODBRIDGE California (Norwalk)Distribu�on Center 15600 Blackburn Ave,Norwalk,CA 90650 New Jersey (Somerset)Distribu�on Center...
