Paleophonies - FM-DW converter and AM Saver modules for vintage ...
1 of 5

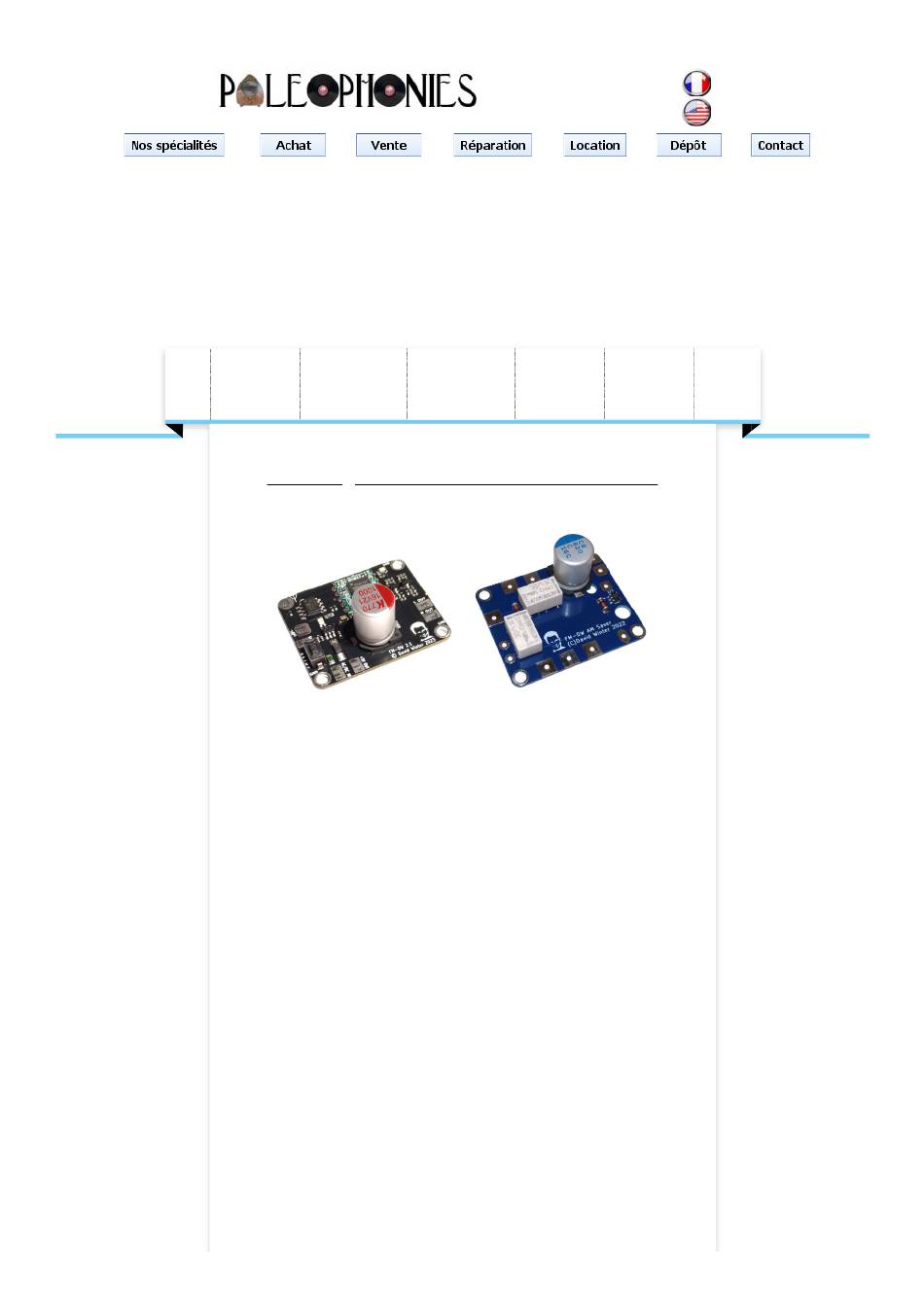

Antiquités sonores - David WINTER
FM-DW converter and AM Saver modules
for your vintage radios
Tune with the dial, listen with the radio's original amplifier !
INTRO
INSTALL: FM ONLY
Installing FM-DW 2.0 / 2.1 with AM-Saver
Refer to the previous tab if AM bands are not required.
The FM-DW and AM-Saver modules use electrostatic sensitive devices:
the installation and setup must be performed by a person with sufficient
electronics background (especially restoring vintage tube and transistor
radios) to avoid damages, otherwise you are installing and using the FM-
DW module (and eventually the AM Saver module) at your own risks.
Ensure that your radio is accordingly restored and that its amplifier works
correctly.
Keep the radio unpluged from the mains during the whole installation
procedure.
The mains switch of your radio must be clean and not produce excessive
arcing.
If required, a suppressor capacitor may be added in parallel to it.
Before all, the FM-FW module works under a temperature of maximum
50°C and must be placed far from heat sources such as rectifying and output
tubes. It is recommended to place it under the chassis. Any heat excess will
make the FM circuit drift, ranging from a reduction of the FM band to
https://www.paleophonies.com/FM-DW/FM-DW.htm
Du lundi au vendredi de 13h à 18h
16 rue de Vaugirard, 75006 Paris
Tel: 01 46 33 20 17 - 06 0318 0518
INSTALL: FM + AM
FM-DW SETUP
PURCHASE
12/03/2024, 17:43
Advertisement
Related Manuals for PALEOPHONIES FM-DW 2.0
Summary of Contents for PALEOPHONIES FM-DW 2.0
- Page 1 Paleophonies - FM-DW converter and AM Saver modules for vintage ... https://www.paleophonies.com/FM-DW/FM-DW.htm Du lundi au vendredi de 13h à 18h 16 rue de Vaugirard, 75006 Paris Tel: 01 46 33 20 17 - 06 0318 0518 Antiquités sonores - David WINTER...
- Page 2 Paleophonies - FM-DW converter and AM Saver modules for vintage ... https://www.paleophonies.com/FM-DW/FM-DW.htm impossible tuning until temperature cools down. Ground the FM-DW module to the chassis (very important with AC/DC sets). Its three grounded holes as well as its fully grounded bottom side allow a solid attachment.
- Page 3 Paleophonies - FM-DW converter and AM Saver modules for vintage ... https://www.paleophonies.com/FM-DW/FM-DW.htm Fig. 1: powering the FM- Fig. 2: powering the FM- Fig. 3: powering the FM- module using module using module using grounded heater winding grounded heater winding grounded center-tapped of 4Vac to 10Vac.
- Page 4 Paleophonies - FM-DW converter and AM Saver modules for vintage ... https://www.paleophonies.com/FM-DW/FM-DW.htm modules. The Amplifier L-R pads of the AM Saver must be connected to the LF amplifier input(s). With AC/DC radios, it is recommended to add a capacitor before the LF amplifier input(s) if not already present by design. The value is not critical (typically 10nF).
- Page 5 Paleophonies - FM-DW converter and AM Saver modules for vintage ... https://www.paleophonies.com/FM-DW/FM-DW.htm Connect the 1µF capacitor as shown on on Fig. 5. D o u b l e C h e c k y o u r w i r i n g before turning the radio on to configure the FM-DW module.
