Antiquités sonores - David WINTER
FM-DW converter and AM Saver modules
for your vintage radios
Tune with the dial, listen with the radio's original amplifier !
INTRO INSTALL: FM ONLY

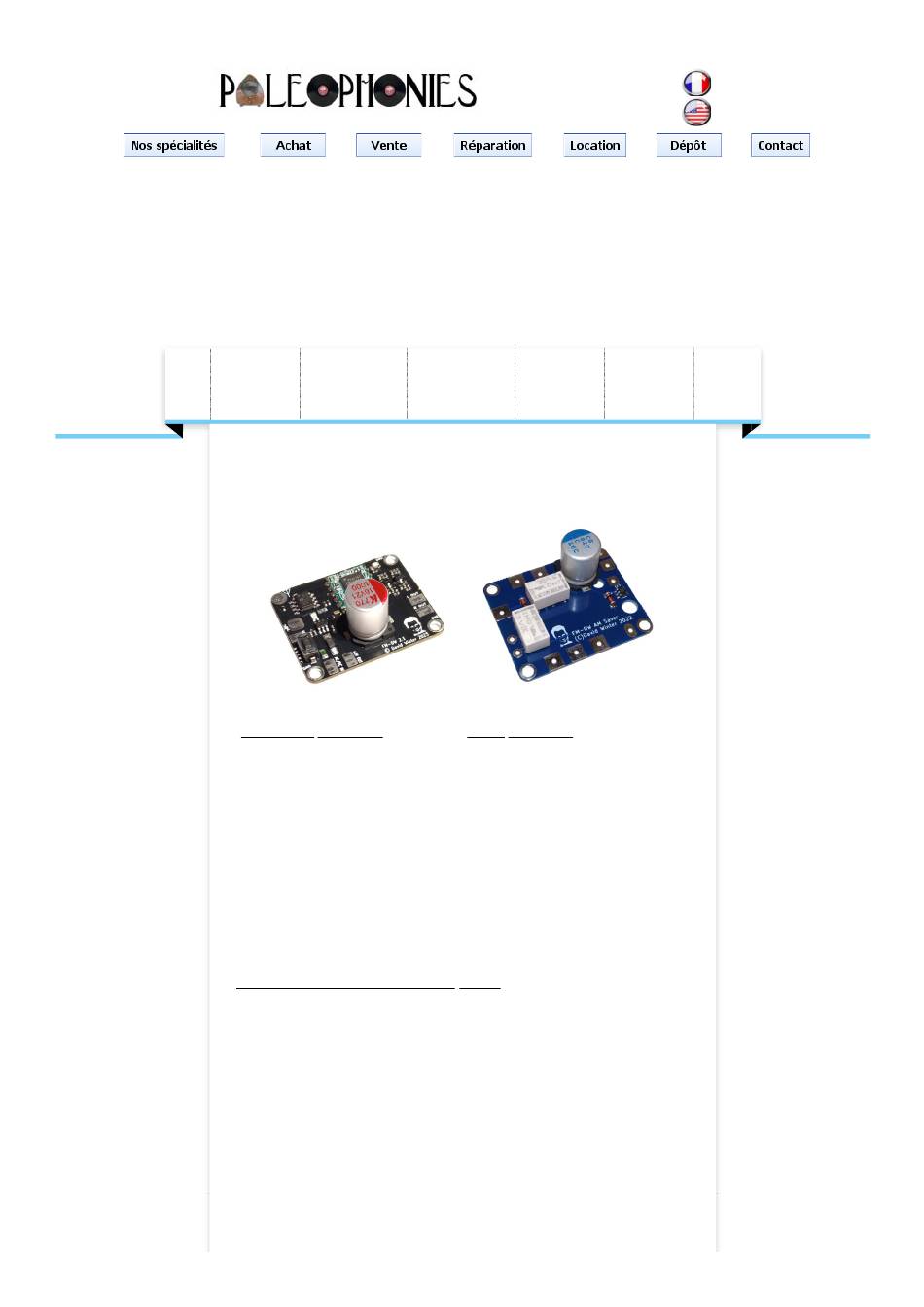

Welcome to the FM-DW 2.0 / 2.1 and AM
Saver add-on page !
Functional improvements:
- Optional AM Saver module (sold
separately).
- Dual color LED for easy setup.
- Added 50µs / 75µs de-emphasis choice
in setup.
- Added optional stereo output.
- Added optional Stereo Noise Control.
- Added live reset in addition to the cold
reset.
- Improved firmware and tuning.
FM-DW 2.0 / 2.1 main specs:
- FM 87.5 - 108 MHz using radio's dial for tuning. Choose where the FM starts
and ends on your dial.
- Can be AC powered by tube heaters circuit (parallel heaters only).
- Can be DC powered (4V to 16V - minimum 6V if using the +5V output).
- No additional controls required, no external mods !
- Compact and easy to install: 3 cm x 3.6 cm, three grounded holes, grounded
bottom layer.
- Added de-emphasis choice in setup.
- Added optional stereo output in setup.
https://www.paleophonies.com/FM-DW/FM-DW.htm
Du lundi au vendredi de 13h à 18h
16 rue de Vaugirard, 75006 Paris
Tel: 01 46 33 20 17 - 06 0318 0518
INSTALL: FM + AM FM-DW SETUP
PCB improvements:
- Added silkscreens for easy installation.
- Round corners and thiner pcb.
- Flat push-button replaced by a better
model.
- Added a pad to connect a separate
push-button.
- Enlarged Antenna and Tuning Capacitor
pads.
- Added a +5V 50mA regulated output for
small add-on.
- URL of this page on bottom layer of FM-
DW module.
