Mounting Kit Installation Guide (MBK-49)
DISCLAIMER:
The installation, maintenance, or removal of an antenna requires qualified, experienced personnel. You must refer to the appropriate local safety codes
and ensure proper electrical and electromagnetic compatibility before proceeding with the installation. All local codes shall take precedence over
information in this document. Antenna systems should be inspected once a year by qualified personnel to verify proper installation, maintenance, and
condition of equipment. Communication Components Antennas Inc. disclaims any liability or responsibility for the results of improper or unsafe
installation.
50-000227-01 Installation Guide
1
Advertisement
Related Manuals for CCi MBK-49
Summary of Contents for CCi MBK-49

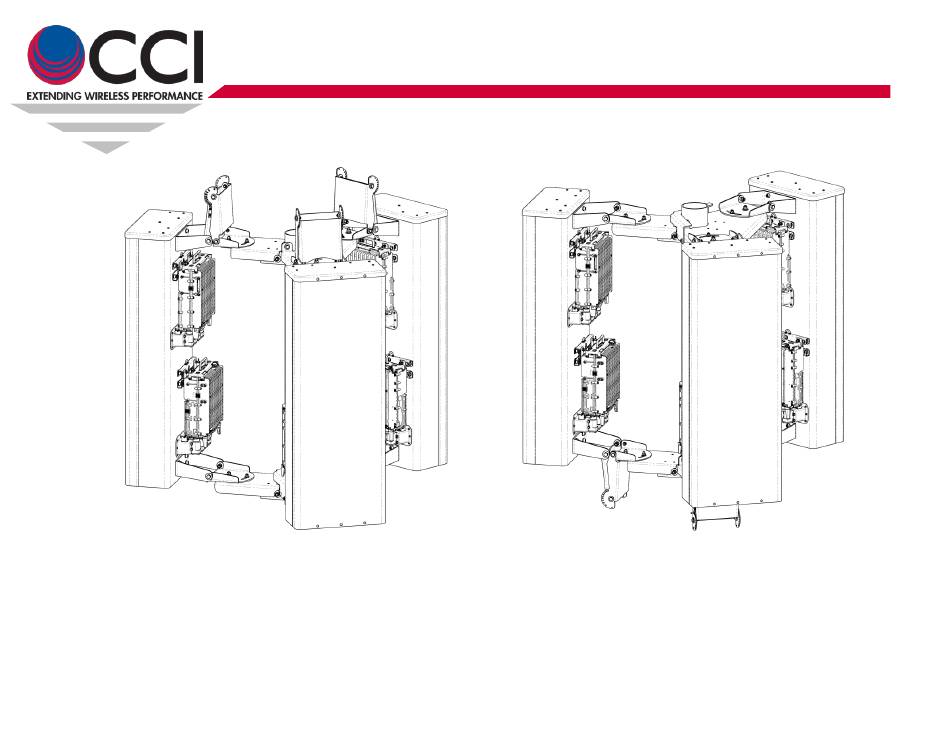

- Page 1 Mounting Kit Installation Guide (MBK-49) DISCLAIMER: The installation, maintenance, or removal of an antenna requires qualified, experienced personnel. You must refer to the appropriate local safety codes and ensure proper electrical and electromagnetic compatibility before proceeding with the installation. All local codes shall take precedence over information in this document.
- Page 2 WASHER, FL, M8, ISO 7093, A2 SS, OVERSIZE MAST CLAMP, MBK-49 THREADED ROD, M12X1.75, 300L, DIN 976, SS A2-70 SWIVEL BRACKET, FIXED, 1 SECTOR, MBK-49 NUT, HEX, M12X1.75, DIN 934, SS A4-70, 19MM HEX SWIVEL BRACKET, FIXED, 2 SECTOR, MBK-49 WASHER, FLAT, M12, 37 OD, MIN 2.3 THK, DIN 9021, SS A2-70...
- Page 3 NUT, HEX, M12X1.75, DIN 934, SS A4-70, 19MM HEX MAST CLAMP, MBK-49 WASHER, FLAT, M12, 37 OD, MIN 2.3 THK, DIN 9021, SS A2-70 SWIVEL BRACKET, TILTING, 2 SECTOR, MBK-49 WASHER, FLAT, M10, 30 OD, MIN 2.3 THK, DIN 9021, SS A2-70 SWIVEL BRACKET, TILTING, 1 SECTOR, MBK-49 WASHER, SPLIT LOCK, M12, DIN 127B, STEEL, SS A2-70 NUT, HEX, M10X1.5, DIN 934, 18-8 SS, 17MM HEX...
- Page 4 Mounting Kit Installation Guide (MBK-49) Fig. 4: Adjustable Triple Bracket Mounting on Mast Fig. 3: Fixed Triple Bracket Mounting on Mast Step Task Step Task Attach the Bottom Fixed Triple Mount Bracket by separating one Clamp Attach the Top Adjustable Triple Mount Bracket by separating one Clamp...
- Page 5 Mounting Kit Installation Guide (MBK-49) Fig. 5: Spacing Between Fixed and Adjustable Triple Mount Brackets – Downtilt Setup Fig. 6: Orientation of Fixed and Adjustable Triple Mount Brackets – Downtilt Setup 50-000227-01 Installation Guide...
- Page 6 Mounting Kit Installation Guide (MBK-49) Fig.8: Installation of 1 Antenna Assembly on Fixed and Adjustable Fig.7: Installation of 1 Antenna on Fixed and Adjustable Triple Mount Brackets – Downtilt Setup (Side View) Triple Mount Brackets -– Downtilt Setup (ISO View)
- Page 7 Mounting Kit Installation Guide (MBK-49) Fig.9: Three (3) Antenna/Radio Assemblies on Fixed and Adjustable Triple Mount Brackets – Downtilt Setup (ISO View) Step Task Install additional Antenna in an identical manner. 50-000227-01 Installation Guide...
- Page 8 Mounting Kit Installation Guide (MBK-49) Fig.10: How to Assemble Adjustable Bracket for Uptilt Orientation 50-000227-01 Installation Guide...
- Page 9 Mounting Kit Installation Guide (MBK-49) Fig. 11: Spacing Between Fixed and Adjustable Brackets – Uptilt Setup Fig. 12: Orientation of Fixed and Adjustable Brackets – Uptilt Setup 50-000227-01 Installation Guide...
- Page 10 Mounting Kit Installation Guide (MBK-49) Fig.13: Installation of Antenna on Fixed and Adjustable Brackets – Uptilt Setup (ISO Fig.14: Installation of Antenna on Fixed and Adjustable Brackets – Uptilt Setup (Side View) View) Step Task Step Task Install the antenna/radio assembly on to both the Fixed Bracket using 2 pcs.
- Page 11 Mounting Kit Installation Guide (MBK-49) Fig, 15 - Three (3) Antenna on Fixed and Adjustable Triple Mount Brackets – Uptilt Setup (ISO View) Step Task Install the 2 and 3 additional Antennas in an identical manner. The installation should appear as shown in Fig. 15.
- Page 12 Mounting Kit Installation Guide (MBK-49) Fig. 17: MDT Adjustment Details A, B, C and D Fig. 16: Begin Antenna Tilt Adjustment (Antenna removed for clarity) Fig. 18: Begin Antenna Tilt Adjustment Step Task Loosen two nuts labeled ‘B’, slide back the latch ‘C’, support the antenna (Antenna removed for clarity) and remove the downtilt bolt ‘D’...
- Page 13 Mounting Kit Installation Guide (MBK-49) Fig. 19: Begin Antenna/Radio Swivel Adjustment Fig. 20: Swivel Adjustment (Detail A and Detail B) Step Task To adjust the azimuth direction, on one antenna/radio assembly at a time, loosen the four M10 nuts labeled ‘E’ and the four M8 nuts labeled ‘F’.
