CCi MBK-21 Installation Manual

Swiveling mdt triple

Advertisement

Quick Links

Fig. 1: Swiveling Triple MDT Bottom Fixed Bracket BOM
ITEM
QTY
DESCRIPTION
1
2
MAST BRACKET, CLAMP, MBK-19
2
3
MAST BRACKET, SINGLE HINGE, FIXED, MBK-19
3
1
BRACKET, SWIVEL JOINT, MBK-19
4
1
BRACKET, DOUBLE HINGE, SWIVEL JOINT, MBK-21
5
2
THREADED ROD, M12,X1.75, 250L, DIN 975, CLASS 8.8, ROHS HOT DIP GALV
6
6
WASHER, FLAT, M12, 37 OD, MIN 2.3 THK, DIN 9021, STEEL, ROHS HOT DIP GALV
7
4
WASHER, SPLIT LOCK, M12, DIN 127B, STEEL, ROHS HOT DIP GALV
8
8
NUT, HEX, M12X1.75, DIN 934, CLASS 8, STEEL, ROHS HOT DIP GALV
9
18
WASHER, FLAT, M10, 30OD, MIN 2.3 THK, DIN 9021, STEEL, ROHS HOT DIP GALV
10
18
WASHER, SPLIT LOCK, M10, DIN 127B, STEEL, ROHS HOT DIP GALV
11
18
SCREW, HEX, CAP, M10X1.5, 25L, DIN 933, CLASS 8.8, ROHS HOT DIP GALV
Step
Task
1
The Triple Mounting Kit is intended for antennas with a pitch of 700mm
between hinge brackets. It will provide mechanical downtilt capability of
0°-20°, and azimuth swiveling of ±30°. The Bottom Fixed Bracket only
provides swiveling, while the Top Adjustable Bracket provides downtilt
and swiveling. The Brackets will arrive assembled but the hardware will
not be torqued.
The installation, maintenance, or removal of an antenna requires qualified, experienced personnel.
electromagnetic compatibility before proceeding with the installation. All local codes shall take precedence over information in this document. Antenna systems should be inspected once a year by
qualified personnel to verify proper installation, maintenance, and condition of equipment. Communication Components Antennas Inc. disclaims any liability or responsibility for the results of improper
or unsafe installation.

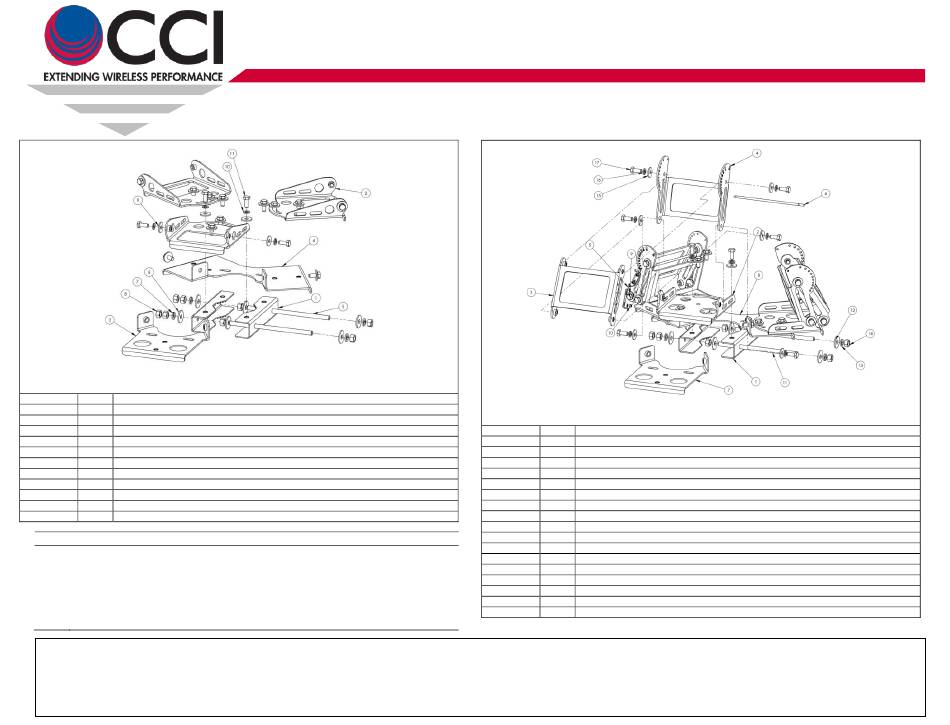

Swiveling MDT Triple Mounting Kit Installation Guide (MBK-21)
Fig. 2: Swiveling Triple MDT Top Adjustable Bracket BOM
ITEM
QTY
DESCRIPTION
1
2
MAST BRACKET, CLAMP, MBK-19
2
3
MAST BRACKET, SINGLE HINGE, ADJUSTABLE, MBK-19
3
3
MAST BRACKET, ADJUSTABLE, FRONT, MBK-19
4
3
MAST BRACKET, ADJUSTABLE, REAR, MBK-19
5
3
LATCH, DOWNTILT BRACKET, MBK-19
6
3
BOLT, DOWNTILT BRACKET, MBK-19
7
1
BRACKET, SWIVEL, JOINT, MBK-19
8
1
BRACKET, DOUBLE HINGE, SWIVEL JOINT, MBK-21
9
6
WASHER, M4, 4.3ID, 9OD,.8TH, SS
10
6
NUT, HEX, M4-0.7, NYL LK, SS
11
2
THREADED ROD, M12,X1.75, 250L, DIN 975, CLASS 8.8, ROHS HOT DIP GALV
12
6
WASHER, FLAT, M12, 37 OD, MIN 2.3 THK, DIN 9021, STEEL, ROHS HOT DIP GALV
13
4
WASHER, SPLIT LOCK, M12, DIN 127B, STEEL, ROHS HOT DIP GALV
14
8
NUT, HEX, M12X1.75, DIN 934, CLASS 8, STEEL, ROHS HOT DIP GALV
15
30
WASHER, FLAT, M10, 30OD, MIN 2.3 THK, DIN 9021, STEEL, ROHS HOT DIP GALV
16
30
WASHER, SPLIT LOCK, M10, DIN 127B, STEEL, ROHS HOT DIP GALV
17
30
SCREW, HEX, CAP, M10X1.5, 25L, DIN 933, CLASS 8.8, ROHS HOT DIP GALV
DISCLAIMER:
You must refer to the appropriate local safety codes and ensure proper electrical and
1
50-000099-01 Installation Guide
