INSTRUCTION MANUAL 2 . 1
T H A I L A N D E D I T I O N
CAN-500 DEHUMIDIFIER
IN ORDER TO QUALIFY FOR THE 5-YEAR WARRANTY,
PLEASE REGISTER YOUR PRODUCT WITHIN 30 DAYS
FROM THE PURCHASE DATE AT:
cannadri.ca/warranty-registration/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Crusader CAN-500 and is the answer not in the manual?

Questions and answers

Related Manuals for Cannadri Crusader CAN-500

Summary of Contents for Cannadri Crusader CAN-500

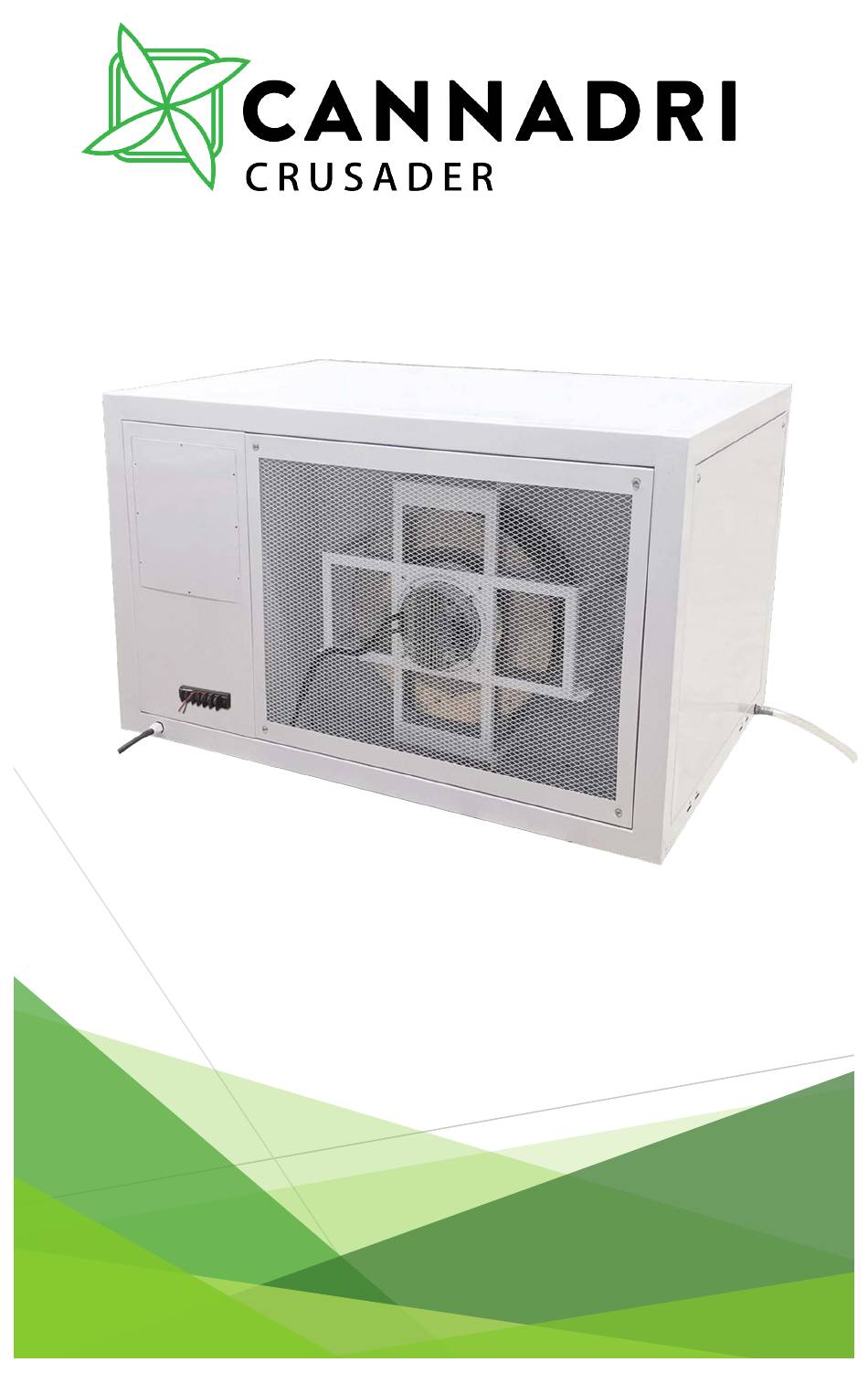

  • Page 1 INSTRUCTION MANUAL 2 . 1 T H A I L A N D E D I T I O N CAN-500 DEHUMIDIFIER IN ORDER TO QUALIFY FOR THE 5-YEAR WARRANTY, PLEASE REGISTER YOUR PRODUCT WITHIN 30 DAYS FROM THE PURCHASE DATE AT: cannadri.ca/warranty-registration/...
  • Page 3 Dropping may cause personal injury or equipment damage. Handle with care and adhere to installation instructions outlined in this manual. If, for whatever reason you are NOT clear about any of the installation instructions, please contact info@cannadri.ca for clarity and further explanation.
  • Page 4 SAFETY INSTRUCTIONS CAUTION: READ THE FOLLOWING SAFETY INSTRUCTIONS Read all instructions carefully before beginning installation, and before powering on your unit. This appliance is not intended for use by persons with diminished physical, sensory or mental capabilities, or lack of experience and knowledge, despite if they are supervised, or have been provided with instruction concerning use of the appliance by a person responsible for their safety.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS A. Manufacturer Safety Instructions ......1 B. Specifications ............. 2-3 i. Environmental............2 ii. Mechanical............2 iii. Electrical ..............2 iv. Dimensions and Weight........3 C. Unpacking the Dehumidifier........4 D. Installation Guide ............4-5 i. Before Installation: Location Considerations ..4 ii.

  • Page 6: Manufacturer Safety Instructions

    A. MANUFACTURER SAFETY INSTRUCTIONS WARNING: 208-240 volts (single phase) may cause serious injury from electric shock. 1. The working temperature of the dehumidifier is 60°F –100°F | 16°C-37°C 2. Installation and servicing should be conducted without dehumidifier power. Leave the power disconnected until installation/service is completed.

  • Page 7: Specifications

    B. SPECIFICATIONS ENVIRONMENTAL ———————————————————————————————————————————————————————————————— CAN-500: Operating Temperature Range: 60°F –100°F | 16°C-37°C Operating Humidity Range: RH40%- RH95% ii. MECHANICAL ——————————————————————————————————————————————————————————————— CAN-500: Weight: 286 lbs/130kgs (without packaging) ” Dimensions: 51.1” x 31.4” x 28.0 130.0cm x80.0cm x 71.2cm Drain Size: 3/4” 500 PPD @80°F/30°C 60%RH Capacity: 1600 CFM (free flow)

  • Page 8: Dimensions And Weight

    B. SPECIFICATIONS iv. DIMENSIONS ———————————————————————————————————————————————————————————————— CAN-500 Fig. 1.2 Air outlet 1077 1000 材 材 质 质 材 材 质 质 涂镀: 涂 标记 处数 更改文件号 标记 处数 更改文件号 签字 日期 签字 日期 每套 1 每 件 设计 设计 标准化 标准化 1277 共...

  • Page 9: Unpacking The Dehumidifier

    C. UNPACKING THE DEHUMIDIFIER Please disassemble the crate carefully ensuring there is no damage to the dehumidifier: Included in the carton: • Dehumidifier • CAN-500: 220 Volt Fig. 1.4 • Drain Tube • Filter • Instruction Manual • Power Cord D.

  • Page 10: Installation Guide

    D. INSTALLATION GUIDE ii. INSTALLATION INSTRUCTIONS ———————————————————————————————————————————————————————————————— Fig. 1.6 Use the 3/8 threaded rod with corresponding fasteners to fix the dehumidifier on the ceiling. Make sure to install the dehumidifier horizontally to avoid malfunction or leakage. Make sure your power cord is installed properly in a well-protected outlet, away from high traffic areas.

  • Page 11: Operation Guide

    E. OPERATION GUIDE STRUCTURE AND RUNNING ———————————————————————————————————————————————————————————————— Automatic defrost protection function The dehumidifier will defrost automatically when the ambient temperature is under 18℃/64.4°F - the compressor will shut down. The dehumidifier will automatically re-start when the defrosting has finished. Compressor delay start protection function The compressor will re-start 3 minutes after re-starting the machine from a power shut down.

  • Page 12: Exploded Diagram

    E. OPERATION GUIDE ii. EXPLODED DIAGRAM ———————————————————————————————————————————————————————————————— Electric box module Fig. 1.10 Liquid-distributo r 1 Air outlet High pressure pipe 2 Fan Module Low pressure pipe 3 Condenser Compressor 4 Evaporator Electric box module 5 Heat exchanger cover plate Film switch box 6 Heat exchanger cover plate 24v tran sf o r m er 7 Top cover plate module...

  • Page 13: Third Party Control Connection

    F. THIRD PARTY CONTROL CONNECTION WARNING： Low Voltage Hazard can cause equipment damage. Please remove connections before installation! THIRD PARTY CONTROL IS SIMPLIFIED ———————————————————————————————————————————————————————————————— DHUM：Dehumidifying mode. Both compressor and motor works. R：24VACoutput FAN：Only fan (motor) works C：24VAC neutral (common) External 24Vequipment can be powered by short-pass pin Rand C (Max. load 20VA). I N S T R U C T I O N M A N U A L 1 .

  • Page 14: Controller Instructions

    G. CONTROLLER INSTRUCTIONS PRIMARY FUNCTIONS ———————————————————————————————————————————————————————————————— CAN-500 Applicable Models: 208-240V/50hz~Single Phase Power Supply: Temperature 5-60°C/41°-140°F, Working Requirement: Humidity RH40%-RH≤95% Fig. 1.13 1. TO TURN ON: press *Note that the selected icon will blink in each function to set the configuration. TO SET THE HUMIDITY SETPOINT: press Use the arrows to select the desired humidity %.
  • Page 15 Cannadri for further assistance. block) 1] Please contact info@cannadri.ca for further assistance for any malfunction that cannot be confirmed and resolved — do not disassemble the machine by yourself. 2] Note that supply air temperature will be above ambient.

  • Page 16: Warrant

    H. WARRANTY Cannadri warrants that the products will be free from defects in materials and workmanship from the time of purchase to delivery. We offer a five-year limited warranty. If for whatever reason you are unsatisfied with our hardware or performance, our human customer service team will make every possible attempt to help you resolve the issue.
  • Page 17 NOTES I N S T R U C T I O N M A N U A L 1 . 0 D E H U M I D I F I E R C A N - 5 0 0...
  • Page 18 NOTES I N S T R U C T I O N M A N U A L 1 . 0 D E H U M I D I F I E R C A N - 5 0 0...
