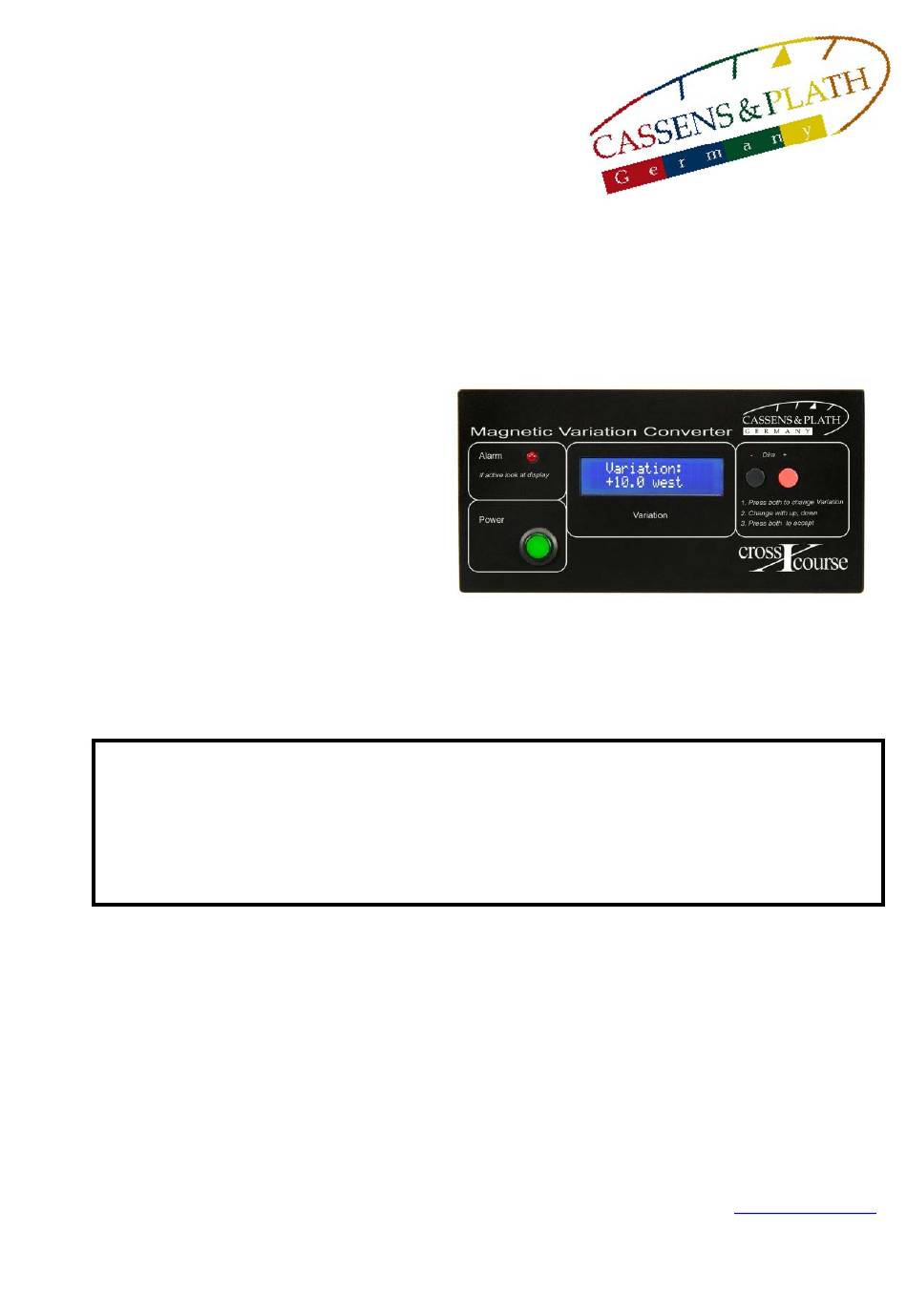

- Page 1 Installation & Operation Manual CROSScourseV Magnetic Variation Converter CASSENS & PLATH GmbH Manufacturers of Nautical Instruments Am Lunedeich 131 D-27572 Bremerhaven, Germany tel. +49 471 4839990 fax +49 471 48399910 sales@cassens-plath.de www.cassens-plath.de...
-
Page 2: Table Of Contents
CROSScourseV Page 2 Content 1) Dimensions and Mounting……………………………………………………………3 2) Wiring and Pin Connection……………………………………………………….…..4 3) Operation………………………………………………………………………………..5 4) Data Formats………………………..………………………………………………….5 5) Error Messages / Error Removing……………………………………………………5 Alterations/Errors reserved 15/Wo/332A Cassens & Plath GmbH, Am Lunedeich 131, D-27572 Bremerhaven, Germany, tel. +49 471 483 999 0, fax +49 471 483 999 10... -
Page 3: Dimensions And Mounting
CROSScourseV Page 3 1) Dimensions and Mounting (Front View of Unit) Flush mounting (cut-out: 182 mm x 85 mm) 192mm 70mm 172.5mm 95mm min. Display +/- Buttons Power Button Weight: 0.5 Kg Front: IP44, Rear IP22 Alterations/Errors reserved 15/Wo/332A Cassens & Plath GmbH, Am Lunedeich 131, D-27572 Bremerhaven, Germany, tel. +49 471 483 999 0, fax +49 471 483 999 10... -
Page 4: Wiring And Pin Connection
CROSScourseV Page 4 2) Wiring and Pin Connection (Rear View of Unit) Main Power, Emergency Power, RS-422/ Grounding 24VDC, 0.5A 24VDC, 0.5A RS-485 Cables have to been screwed to the removable terminals. Screening (grounding) has to be fixed with clamp at unit. -
Page 5: Operation
“+” and “-“ bottons simultaneously. 4) Data Formats All data formats accepted by CROSScourseV have to be RS-422/ RS-485, 4800 or 38400 Baud, 8 databits, 1 stop bit and no parity. Accepted data sentences are “$HCHDG” and “$HCHDM” (refers only to magnetic compass data sentences and no true/gyro data sentences will be accepted!) according to IEC61162-1 with checksum and without leading zeros.
