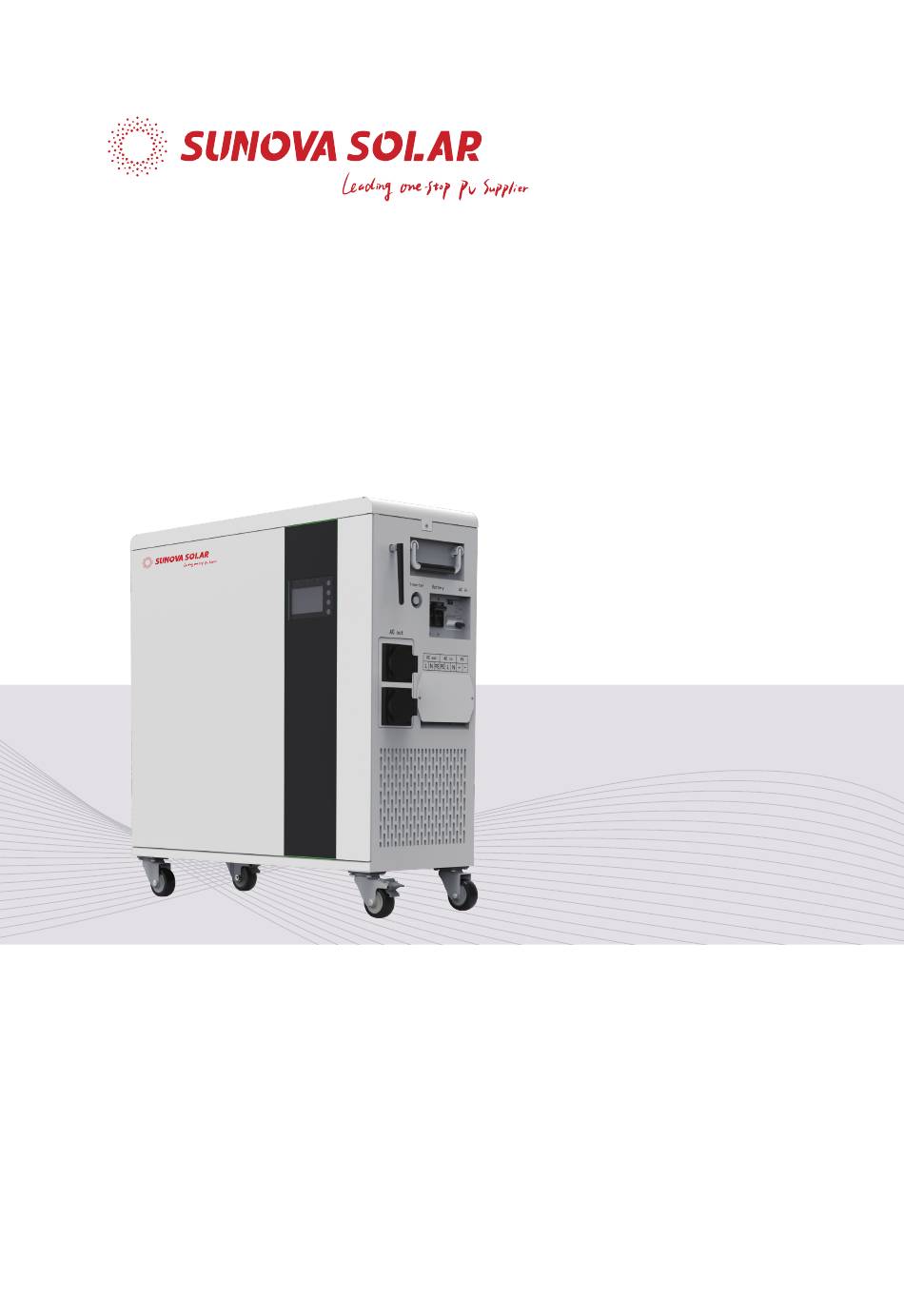

- Page 1 Sunova-eFox Off-Grid Energy Storage System Sunova-eFox-35E Sunova-eFox-50E User Manual Version：EN V2.0 www.sunova-solar.com...
- Page 2 Sunova-eFox Series Copyright This user manual’s copyright belongs to original manufacturer. Any unit or individual shall not reproduce or partially reproduce the contents of this manual without permission, and shall not convert or distribute in any form or means. Manufacturer reserves the copyright, and owns the power of interpretation.
- Page 3 Sunova-eFox Series Preface Sunova-eFox Series Energy Storage System is a multi-functional power supply device designed to comprehensively use for residential and commercial projects. With built-in lithium battery, this system can provide uninterrupted and stable power supply, and ensure the normal use of the utility when the grid is out.
-
Page 4: Table Of Contents
Sunova-eFox Series Table of Contents 1. Introduction ···························································································································04 1.1 Application·························································································································04 1.2 Components······················································································································08 1.3 Sunova-eFox Dimension······························································································09 1.4 Quality Inspection ··········································································································10 1.5 Label ·····································································································································10 1.6 Safety ····································································································································09 2. Installation ·······························································································································11 2.1 Device Overview···············································································································11 2.1.1 Device Carrying ······································································································11 2.1.2 Unboxing Guide······································································································12 2.1.3 Installation ················································································································15 2.2 Electric Installation···········································································································17 2.2.1 Wiring Procedure···································································································17 3. -
Page 5: Introduction
Sunova-eFox Series 1 Introduction 1.1 Application Sunova-eFox series can connect with solar panels, grid (or generator), load, it built-in lithium battery, hybrid inverter and energy management system. Suno- va-eFox has four working modes: SOL (Solar first), UEI (Utility first), SBU(So- lar-Battery-Utility), SUB (Solar-Utility -Battery). - Page 6 Sunova-eFox Series When PV power is greater than the consump- tion, and the battery capacity is low, the PV will supply power to the load and charge the battery at the same time. SOL (Solar first): Solar energy provides power to the loads as first priority.
- Page 7 Sunova-eFox Series When PV power is greater than the consumption, and the battery capacity is low, the PV will supply power to the load and charge the battery at the same time. When PV power is less than the consumption, and the battery capacity is high,PV and battery (Solar-Battery-Utility) : suplay power to the load at the same time.
- Page 8 Sunova-eFox Series When PV power is greater than the consumption, and the battery capacity is low,PV supplies the load and charge the battery at the same time. (Solar-Utility -Battery) : Solar energy provides power to the loads as first priority. When PV power is less than the consumption, and the battery capacity is low, grid supplies power to the load, PV charges the battery, if...
-
Page 9: Components
Sunova-eFox Series 1.2 Components After unpacking the package, please inspect the components based on the below table. Table 1 Component list Pictures Description Quantity Sunova-eFox OFF-GRID Energy 1 pcs Storage System M 6 -1 6十 字 外 六 角 螺 丝 膨... -
Page 10: Sunova-Efox Dimension
Sunova-eFox Series 1.3 Sunova-eFox Dimension The size is slightly different according to the type, below for reference. Figure 2 Sunova-eFox Dimension 1.4 Quality Inspection Before installation, please confirm that the packaging is unbroken, and after unpacking, check that all parts are consistent with the packaging list and are in good condition. -
Page 11: Label
Sunova-eFox Series 1.5 Label · Danger: Possibility of fatal voltage · Warning: Possibility of device damage or personal injury · Warning: Heat injure 1.6 Safety This user manual includes safety introduction. Please read this manual carefully before installing, maintaining and operating the equipment. If you do not operate in accordance with this manual, if there is equipment damage or personal injury or death, manufacturer will not be responsible for it. -
Page 12: Installation
Sunova-eFox Series 2 Installation 2.1 Device Overview Inverter Switch AC Output WiFi Antenna Battery Breaker AC Input Heat Dissipation Hole AC Input Breaker PV Input LCD Screen Figure 3 Device Overview 2.1.1 Device Carrying Warning！ The device weight (67.6kg) may cause personal injury. ·... -
Page 13: Unboxing Guide
Sunova-eFox Series 2.1.2 Unboxing Guide The iron buckle is sharp, please pay attention to personal safety when unbox- ing! (1) Use screwdriver to pry off the top cover clasp. Figure 4 (2) Remove the top cover after prying off all the cover buckles. Figure 5 www.sunova-solar.com... - Page 14 Sunova-eFox Series (3) After prying off the side cover iron buckle, remove the four side covers. Figure 6 (4) Take out the machine; the machine is heavy, please pay attention. Warning： Ensure the installed place be well ventilate and conform to device using condition.
- Page 15 Sunova-eFox Series Adequate ventilation of the room or location in which the device containing vented or valve-regulated batteries is located, to prevent the accumulation of hazardous gases; -Servicing of batteries should be performed or supervised by personnel knowledgeable about batteries and the required precautions.
-
Page 16: Installation
Sunova-eFox Series All electrical connections must be in accordance with local and national standards. Only with the permission of the utility grid, the storage can be connected to the utility grid. Disconnect the storage from all the external power sources before service! Do not open the enclosure when the storage is working. - Page 17 Sunova-eFox Series Figure 7 After installing against the wall, the caster buckle should be locked to prevent sliding. Figure 8 Other objects around Sunova-eFox should be more than 200mm away from the equipment to ensure good ventilation. www.sunova-solar.com...
-
Page 18: Electric Installation
Sunova-eFox Series Figure 9 2.2 Electric Installation The Sunova-eFox is ground mounted, shall put on the ground vertically. 2.2.1 Wiring Procedure （1）Cut off the circuit breaker of grid and PV . （2）Ensure Smart Unit be not carelessly turned on. （3）Detach the screws on the side case. （4）Remove the side cover case. - Page 19 Sunova-eFox Series (5) wiring refer to the Figure 11-12 (6) Install the cover. Figure 11 Figure 12 Table 3 Cable Size Function Typical Power Cable size Torque 1.4~1.6Nm 10AWG Load 3kVA/5kVA 1.4~1.6Nm Sunova-eFox 3kVA/5kVA 10AWG Grid 1.4~1.6Nm 3kVA/5kVA 10AWG www.sunova-solar.com...
-
Page 20: Operation
Sunova-eFox Series 3 Operation 3.1 LCD Display The operation and display panel, shown in below chart, is on the front panel of Sunova-eFox. It includes three indicators, four function buttons and a LCD display, indicating the operating status and input/output power information. ①... -
Page 21: Lcd Display Icons
Sunova-eFox Series Table 5 Function Button Description Function Button To exit setting mode To go to previous selection DOWN To go to next selection ENTER To confirm the selection in setting mode or enter setting mode 3.2 LCD Display Icons Figure 14 Display Icons Table 6 Function Button Description... - Page 22 Sunova-eFox Series Icon Description PV Input Information PV input icon Indicate PV input power, voltage, current, etc. Output Information Inverter Icon Indicate output voltage, current, frequency, Inverter tempera- ture. Load Information Load Icon Indicates power of load, power percentage of load. Indicates overload happened.
- Page 23 Sunova-eFox Series Icon Description Other Information Indicates output source priority: Solar first, Utility first, SBU mode or SUB mode. Indicates warning code or fault code. Indicates a warning or a fault is happening. Indicates it is during setting values. Indicates the alarm is disabled. Table 7 Battery information In AC mode, battery icon will present battery capacity SOC＜25%...
-
Page 24: Lcd Setting
Sunova-eFox Series 3.3 LCD Setting After pressing and holding ENTER button for 3 seconds, unit enter setting mode. Press “UP” or “DOWN” button to select setting programs. Then, press “ENTER” button to confirm the selection or ESC button to exit. Communication Settings protocol... - Page 25 Sunova-eFox Series Table 8 Setting Program Program Description Setting option Solar First Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time. Utility grid provides power to the loads only when any below one condition happens: -Solar energy is not available...
- Page 26 Sunova-eFox Series Program Description Setting option SUB Priority Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, solar and utility gird will supply power to the loads at the same time. Battery provides power to the loads only when solar energy is not sufficient and there is no utility.
- Page 27 Sunova-eFox Series Program Description Setting option Flooded Lithium (Default) Only suitable when communicated with BMS User-defined If “User-Defined” is selected, battery charge voltage and low DC cut-off voltage can be set up in program 19, 20 and 21. Battery type User-defined 2 Suitable when lithium battery without BMS communication...
- Page 28 Sunova-eFox Series Program Description Setting option NOTE 1: When set the battery type as “LI” in program 05, the setting option 12,13,21 will change to display percent. At the “LI” type battery, the maximum charge current can’t be modify by the user.
- Page 29 Sunova-eFox Series Program Description Setting option 220V 230V(Default) 240V 208V Output voltage *This setting is only available when the inverter is in standby mode (Switch off). 60Hz 50Hz(Default) Output frequency *This setting is only available when the inverter is in standby mode (Switch off). Maximum utility 3.5K :Default 30A, 0A~60A Settable charging current.
- Page 30 Sunova-eFox Series Program Description Setting option If this off grid solar inverter is working in Battery mode or Power saving mode, only solar energy can charge battery. Solar energy will charge battery if it’s available and sufficient. Alarm off Alarm on (default) Alarm Control Backlight off Backlight on(default)
- Page 31 Sunova-eFox Series Program Description Setting option Battery equalization Battery equalization enable disable (default) Battery equalization If “flooded” or “user-Defined” is selected in program 05, this program cannot be set up. Default 58.4V, Battery equalization voltage 48.0V-58.4V Settable Default 60Min, Battery equalized 5min-90min Settable time Default 120Min,...
- Page 32 Sunova-eFox Series Program Description Setting option The time allows utility grid to charge the battery. Use 4 digits to represent the time period, the upper two digits represent the time 0000 (Default) when utility grid start to charge the battery, setting range is from 00 to 23, and the lower end to charge Utility grid...
-
Page 33: Display Information
Sunova-eFox Series 3.4 Display Information The LCD display information will be switched in turns by pressing “UP” or “DOWN” key. The selection information is switched as below order: voltage, frequency, current, power, firmware version. Figure 15 Display Information ① AC input voltage ① AC input Frequency ② Output Voltage ② Output Frequency... -
Page 34: Operating Mode
Sunova-eFox Series 3.5 Operating Mode Table 9 Display Information Setting Information LCD display ① AC input voltage ② Output Voltage ③ Load Percentage ④ PV input voltage ⑤ Battery voltage ⑥ Warning or Fault code (Default display on screen) ① AC input Frequency ② Output Frequency ③ Load power in VA ④ PV energy sum in KWH ⑤ Battery percentage ⑥ Warning or Fault code... - Page 35 Sunova-eFox Series Setting Information LCD display Firmware Version CUP1:040-00-b21; CUP2: 041-00-b21 Time ( 15:20:10, December 15, 2018 ) www.sunova-solar.com...
- Page 36 Sunova-eFox Series Table 10 Operating mode description Description Operation mode LCD display Standby Mode / Power Saving Charging by utility Charge by utility and Mode PV energy Note: *Standby mode: The inverter is not turned on yet but No output is at this time, the supplied by the inverter can...
-
Page 37: Monitoring
Sunova-eFox Series Description Operation mode LCD display Charging by PV energy The unit will provide output Charging by utility grid power from the mains. It can Utility grid Mode also charge the battery at line mode. No battery connected Power from battery and PV power The unit will provide output Battery Mode... -
Page 38: Maintenance
Sunova-eFox Series 4 Maintenance 4.1 Fault Code Fault Code Fault Event Icon on Fan is locked Over temperature Battery voltage is too high Battery voltage is too low Output short circuited Output voltage is too high Overload time out Bus voltage is too high Bus soft start failed Main relay failed Over current or surge... -
Page 39: Warning Indicator
Sunova-eFox Series 4.2 Warning Indicator Warning Icon Warning Event Audible Alarm Code flashing Fan locked when inverter Beep 3 times every second is on Over temperature Beep once every second Battery over charged Beep once every second Beep once every second Low battery Overload Beep once every 0.5 second... - Page 40 Sunova-eFox Series Warning Icon Warning Event Audible Alarm Code flashing Cell under voltage Beep once every second Total over voltage Beep once every second Total under voltage Beep once every second Beep once every second Discharge over voltage Charge over voltage Beep once every second Beep once every second Discharge over temperature...
-
Page 41: Specification
Sunova-eFox Series 4.3 Specification Model Sunova-eFox-35E Sunova-eFox–50E Battery 51.2V Rated voltage 44.8~57.6V Voltage range Capacity 5.12kWh 5.12kWh Max. discharge rate Max. charge rate Li-ion (LFP) Battery type AC Output(Backup) Rated power 3500W 5000W Surge power 7000W,5s 10000W,5s 220/230/240V Rated output voltage Max. -
Page 42: Trouble Shooting
Sunova-eFox Series 4.4 Trouble Shooting Problem LCD/LED/Buzzer Explanation / Possible cause What to do LCD/LEDs and Unit shuts down The battery voltage is too 1. Re-charge battery. buzzer will be active automatically low(<setting in program 5) 2. Replace battery. for 3 seconds and during start up then complete off. -
Page 43: Activation
Sunova-eFox Series Problem LCD/LED/Buzzer What to do Explanation/Possible cause Output abnormal (Inverter 1. Reduce the connected Fault code 06/58 voltage below than 190Vac load. or is higher than 260Vac) 2. Return to repair center Overload error. The inverter Reduce the connected Fault code 07 is overload 110% and time load by switching off... - Page 44 Sunova Solar Technology Co., Ltd Add: H building, Standard Plant Phase II, Runzhou Road, Huishan District, Wuxi City, Jiangsu Province,P.R.China,214000 E-mail: info@sunova-solar.com Tel: +86 510 8595 9369 Web: www.sunova-solar.com...
