Key Features
✓

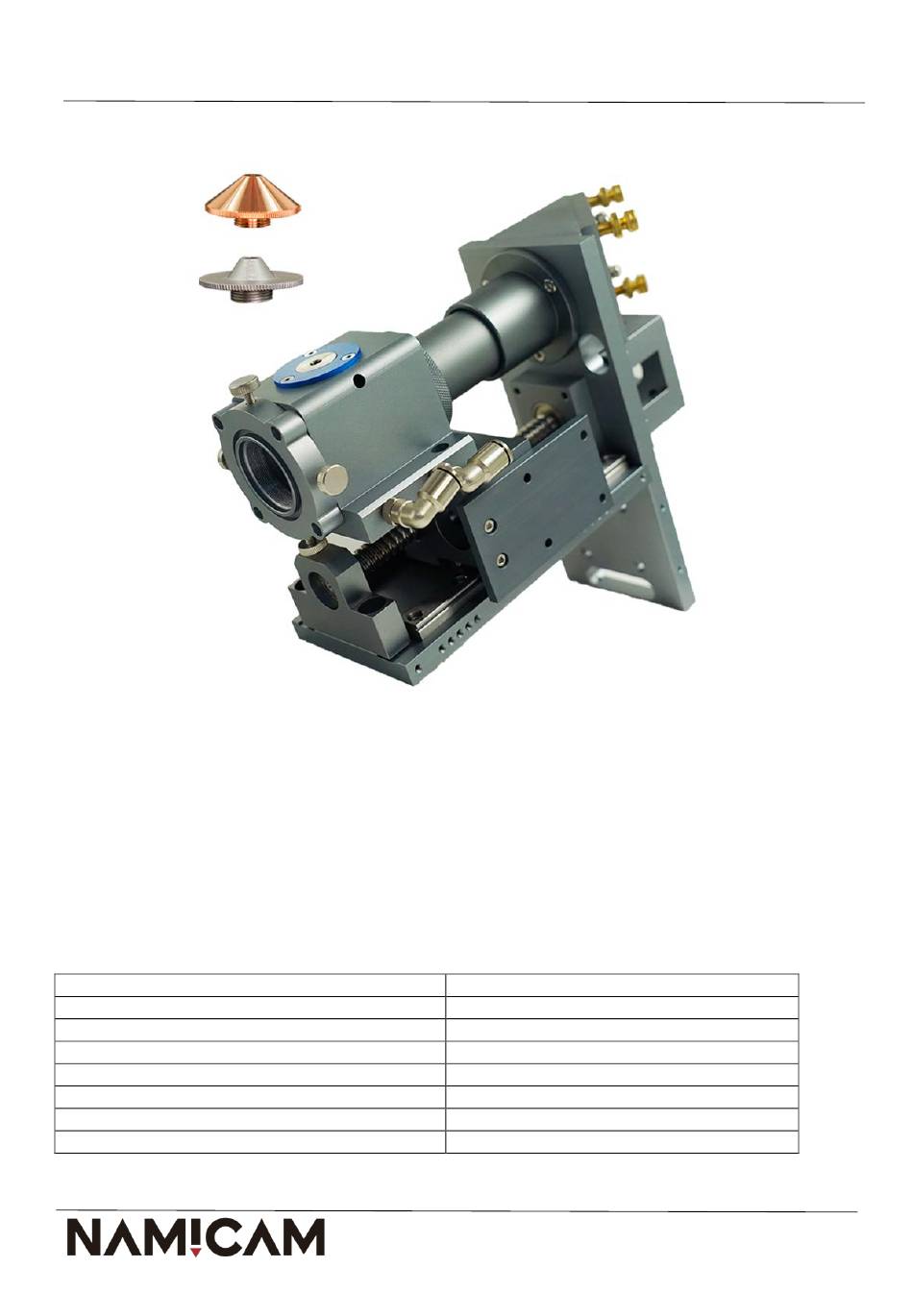

Used for 150W to 500W CO2 Glass or RF Laser
✓
Applicable for both non-metallic metallic materials (Hybrid Cutting)
✓
2 pieces focus lens available of Dia63.5 and 101.6 mm (2.54 / 4") lens
✓
Ball screw leading Z up-down
✓
Auto-focusing (only fit for RDC6332 Controller)
✓
Oxygen, nitrogen assisting air assembly
✓
Optics cooling assembly
✓
Auto Height Controller assembly (only fit for RDC6332 Controller)
Model Code
Laser Power
Reflective Mirror/mm
Focus Len/mm
Focus Length/mm
Stroke/mm
Outline Dimension/mm
Weight/kg
Instructions
Laser Cutting Head RDL91002TL
RDL91002TL
150W-500W
Dia25/30
Dia25
Dia63.5/101.6mm(2.54/4")
74
W121*H299*D272
2.66
NAMICAM
Hochstadenstr. 17 | 41469 Neuss
Germany Tel: +49 2137 92 77-747 / -044
Fax: +49 2137 92 77-744
Email: info@namicam.com
Advertisement
Related Manuals for NAMICAM RDL91002TL
Summary of Contents for NAMICAM RDL91002TL
- Page 1 Instructions Laser Cutting Head RDL91002TL Key Features ✓ Used for 150W to 500W CO2 Glass or RF Laser ✓ Applicable for both non-metallic metallic materials (Hybrid Cutting) ✓ 2 pieces focus lens available of Dia63.5 and 101.6 mm (2.54 / 4") lens ✓...
- Page 2 Instructions Laser Cutting Head RDL91002TL Main Component Dimensions NAMICAM Hochstadenstr. 17 | 41469 Neuss Germany Tel: +49 2137 92 77-747 / -044 Fax: +49 2137 92 77-744 Email: info@namicam.com...
- Page 3 Instructions Laser Cutting Head RDL91002TL NAMICAM Hochstadenstr. 17 | 41469 Neuss Germany Tel: +49 2137 92 77-747 / -044 Fax: +49 2137 92 77-744 Email: info@namicam.com...
- Page 4 Instructions Laser Cutting Head RDL91002TL NAMICAM Hochstadenstr. 17 | 41469 Neuss Germany Tel: +49 2137 92 77-747 / -044 Fax: +49 2137 92 77-744 Email: info@namicam.com...
- Page 5 Instructions Laser Cutting Head RDL91002TL Reflective Mirror Install Remove the fixing piece, put the mirror on (mirror face in/back out) and then lock back the piece. Focus Len Install 1. Remove by rotating the outer and inner lens barrel out of the indicating box, the inner lens barrel can fit 2 different lenses with FL63.5/101.6mm...
- Page 6 Instructions Laser Cutting Head RDL91002TL 2. Remove the locking ring out of inner barrel, make the O-ring at proper position, then put focus lens in and fit the ring, rotate the locking ring to tighten the lens 3. Fit back the inner barrel, out barrel, please note the connecting face direction when doing this.
- Page 7 Instructions Laser Cutting Head RDL91002TL Focus lens alignment Make tiny adjustment of the 4 pieces flat end screws Adjust the distance between focus lens to laser nozzle 1. Find the locking hole by side, lose it first 2. Insert Allen wrench into the knob hole, rotate for up/down, rotate clockwise to reduce distance, rotate counterclockwise to increase, till you get proper distance 3.
- Page 8 Instructions Laser Cutting Head RDL91002TL Z motor Wiring Maintenance 1.Make lubrication for Z ball screw and linear guidance regularly, keep clean. 2. Keep lens, mirrors and mounting drawers clean. 3. Worn cutting nozzles should be replaced. Note 1. Disassembly only by the professionals.
