DC91144 Ball Screw Cutting Base/Tool Holder (100mm Stroke)
DC91144 is single position tool base/tool module carrier, ball screw leading with up/down
stroke 100mm, mounting base width 132.5mm, this product requires driving pack of 57
hybrid servo.

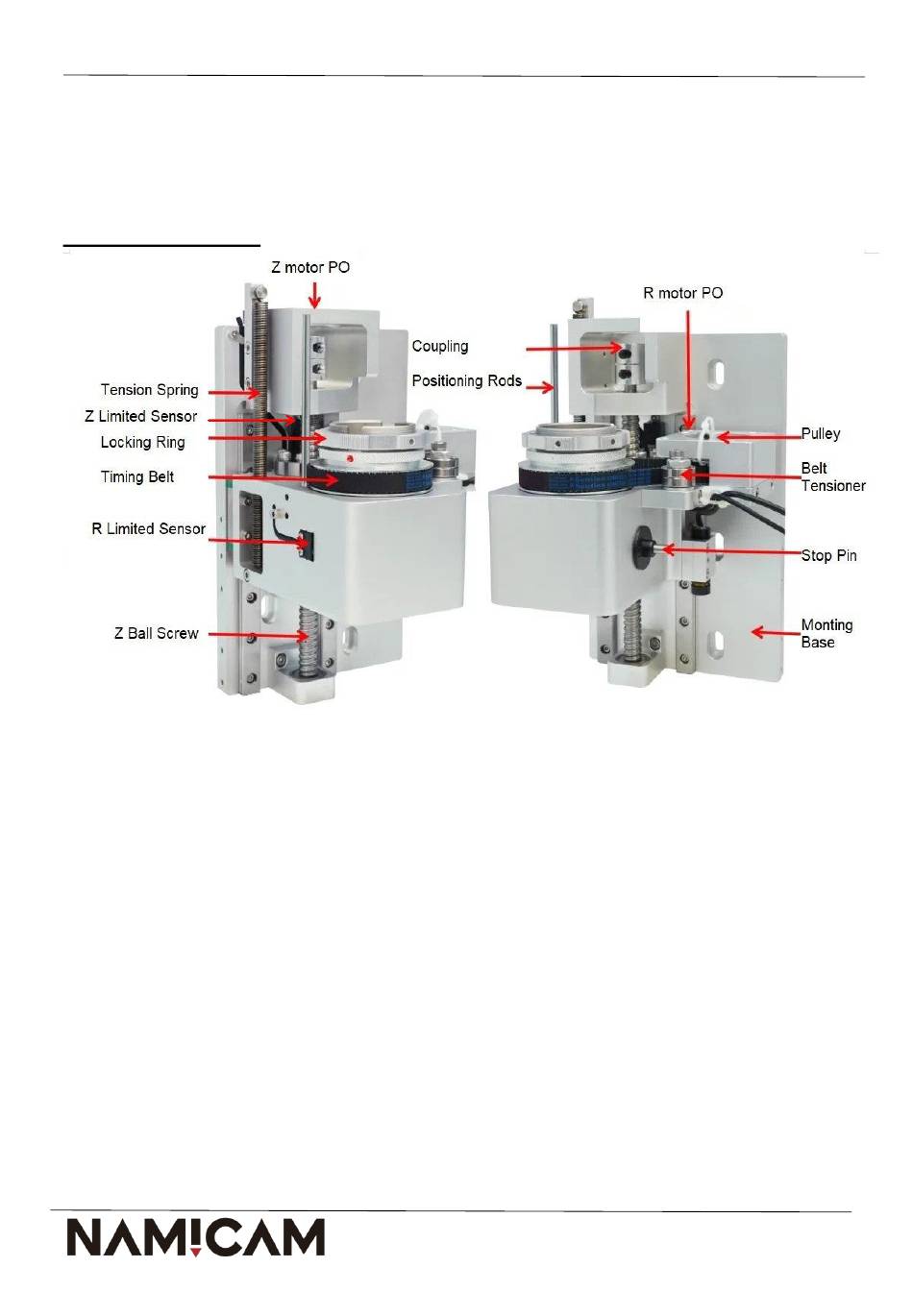

Component Instruction
Z Axis Limited Sensor: Z axis Go-up Limited Sensor
Coupling: Connection Z motor and ball screw
Positioning Rods: For fixing the pin on cutting tool to prevent any rotation of tool's upper part
along with tool barrel.
Tension Spring: Prevent the cutting tool going down while no power is on
Z Motor Mounting Po: To mount the motor for cutting tool up-down motion
Pully: For rotating axis motor
Rotating(R) Axis Motor Mounting Po: To mounting the motor for cutting tool rotation
Locking Ring: Tighten this ring for fixing the cutting tool
Stop Pin: Press down the stop pin while tighten the locking ring, to prevent the tool barrel rotation.
Belt Tensioner: For adjusting the tension of belt.
Rotating Axis Limited Sensor : Controlling the cutting tool rotation angle.
Red Dot Pointer Mouting Po : Laser Cross Pointer for positioning.
Instructions
NAMICAM
Hochstadenstr. 17 | 41469 Neuss
Germany Tel: +49 2137 92 77-747 / -044
Fax: +49 2137 92 77-744
Email: info@namicam.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the DC91144 and is the answer not in the manual?

Questions and answers

Related Manuals for NAMICAM DC91144

Summary of Contents for NAMICAM DC91144

  • Page 1 Instructions DC91144 Ball Screw Cutting Base/Tool Holder (100mm Stroke) DC91144 is single position tool base/tool module carrier, ball screw leading with up/down stroke 100mm, mounting base width 132.5mm, this product requires driving pack of 57 hybrid servo. Component Instruction Z Axis Limited Sensor: Z axis Go-up Limited Sensor Coupling: Connection Z motor and ball screw Positioning Rods: For fixing the pin on cutting tool to prevent any rotation of tool’s upper part...
  • Page 2 Instructions DC91144 Ball Screw Cutting Base/Tool Holder (100mm Stroke) NAMiCAM Code Description Picture DC91144 Module Carrier Timing Belt Belt Pully Ball Screw Coupling RDP001 Red-dot Pointer Z Limited Sensor NAMICAM Hochstadenstr. 17 | 41469 Neuss Germany Tel: +49 2137 92 77-747 / -044 Fax: +49 2137 92 77-744 Email: info@namicam.com...
  • Page 3 Instructions DC91144 Ball Screw Cutting Base/Tool Holder (100mm Stroke) R Limited Sensor 57 Hybrid Servo System Purchase-On-Demand 1 set for Z up/down Motor 1 set for Rotating Motor Module Carrier Pressure Disc DPF95001/Optional Standard Module Carrier Pressure Disc DPF95002/Optional High NAMICAM Hochstadenstr.
  • Page 4 Instructions DC91144 Ball Screw Cutting Base/Tool Holder (100mm Stroke) Dimension NAMICAM Hochstadenstr. 17 | 41469 Neuss Germany Tel: +49 2137 92 77-747 / -044 Fax: +49 2137 92 77-744 Email: info@namicam.com...
  • Page 5 Instructions DC91144 Ball Screw Cutting Base/Tool Holder (100mm Stroke) NAMICAM Hochstadenstr. 17 | 41469 Neuss Germany Tel: +49 2137 92 77-747 / -044 Fax: +49 2137 92 77-744 Email: info@namicam.com...
  • Page 6 Instructions DC91144 Ball Screw Cutting Base/Tool Holder (100mm Stroke) Mounting Look Wiring Limited Sensor Powering by DC24V Red Dot Pointer Powering by DC5V NAMICAM Hochstadenstr. 17 | 41469 Neuss Germany Tel: +49 2137 92 77-747 / -044 Fax: +49 2137 92 77-744...
  • Page 7 Instructions DC91144 Ball Screw Cutting Base/Tool Holder (100mm Stroke) Operation and Debugging - Ball Screw Lead and Ratio Lead 4mm, pully ratio 1:4 -Limited Sensor Output Default Output: NPN NO - Locking Ring Loosen the locking ring counterclockwise until it’s flush with tool barrel, and then align the U-slot on the ring with one on tool barrel, at this time, you could insert the cutting tool, such as electro-oscillating knife head into the tool barrel.
  • Page 8 Instructions DC91144 Ball Screw Cutting Base/Tool Holder (100mm Stroke) Note - Please make sure correct wiring before power on. - Please wire by shielded cable to prevent interference. NAMICAM Hochstadenstr. 17 | 41469 Neuss Germany Tel: +49 2137 92 77-747 / -044 Fax: +49 2137 92 77-744 Email: info@namicam.com...
