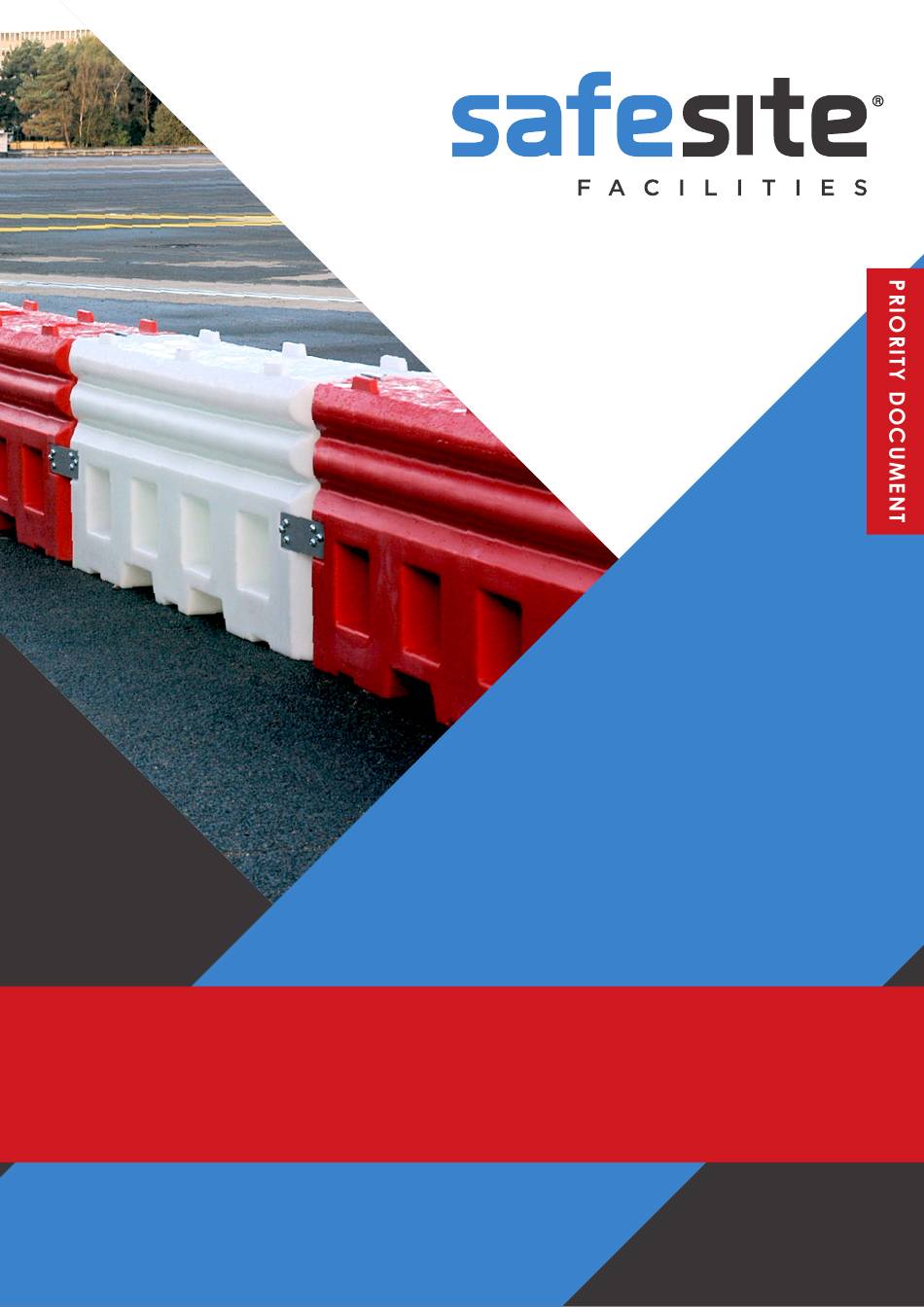

- Page 1 RB22 BARRIERS Installation Guide VERY IMPORTANT This document MUST BE READ IN FULL before commencement of installation of the RB22 Barriers. The following processes outlined must be adhered to at all times! www.safesitefacilities.co.uk...
- Page 2 INTRODUCING THE RB22 Know Your RB22 Barrier The RB22 is one of the quickest deployable Barrier Systems on the market and can withstand impacts from errant vehicles traveling up to 50 miles per hour, making them ideal for bordering off temporary roadworks and areas where highway maintenance is being completed.
- Page 3 STEP RB22 Female End The female end of the RB22 barrier has a duel recessed section which contains two integrated holes, this section allows for solid connection to the male end of the connecting barrier.
- Page 4 INSTALL GUIDE STEP Align Barriers Prior to connecting the RB22 barriers please position the female end of the first barrier face to face with the male end of the second barrier, when aligning these ends please ensure the ground underneath the connection point is as even as possible.
- Page 5 SAFE SITE FACILITIES LTD RB22 BARRIERS INSTALL GUIDE RB22 BARRIERS INSTALL GUIDE STEP Check Hole / Loop Alignment Please look down the connection hole to ensure both the loops and holes perfectly align, forming one continuous opening from top to bottom.
- Page 6 SAFE SITE FACILITIES LTD RB22 BARRIERS INSTALL GUIDE RB22 BARRIERS INSTALL GUIDE STEP Lock In Pin Bolt Each barrier will come complete with a single bolt, this bolt is a crucial safety feature as it ensures the lock in pin is securely fixed in place.
- Page 7 SAFE SITE FACILITIES LTD RB22 BARRIERS INSTALL GUIDE RB22 BARRIERS INSTALL GUIDE STEP Metal Face Plate The face plates are extremely important as they prevent the barriers pivoting in on themselves, and breaching any pedestrian safe zones if the barriers are impacted at high speeds.
- Page 8 Insert a hose into the open filler hole and begin filling the barrier, the filling of the barrier is very important as this is the stage that converts the RB22 from a 60kg shell into a robust 600kg traffic barrier.
- Page 9 STEP Emptying The RB22 Barrier When it is time to dismantle the RB22’s please locate the release plug, this can be found towards the end of the barrier just a few inches off the ground. STEP Plug &...
- Page 10 RB22 BARRIERS INSTALL GUIDE RB22 HOARDING & ROTA BLOCK ASSEMBLY STEP Position Position and interlock barriers (RB22 or GB2), and fill with ballast water. Insert supplied posts into barrier link holes. STEP Alignment Align frame arm with top tab on post on the back side.
- Page 11 SAFE SITE FACILITIES LTD RB22 BARRIERS INSTALL GUIDE RB22 HOARDING & ROTA BLOCK ASSEMBLY STEP Placement Offer hoarding panel tab to the front side of post tabs. STEP Secure Insert supplied washer and bolt from the front, through the 3 tabs, and fasten with supplied nut.
- Page 12 SAFE SITE FACILITIES LTD Unit 1 Martello Enterprise Centre, Courtwick Lane, Littlehampton, West Sussex, BN17 7PA TEL: 0330 017 0687 - E-MAIL: info@safesitefacilities.co.uk...
