SafeSite Facilities RB22 Installation Manual

RB22 BARRIER
INSTALLATION GUIDE
Water-filled RB22 crash barriers are designed to withstand impact from vehicles travelling at up to 50 mph.
They're ideal for bordering off temporary roadworks and highway maintenance areas.

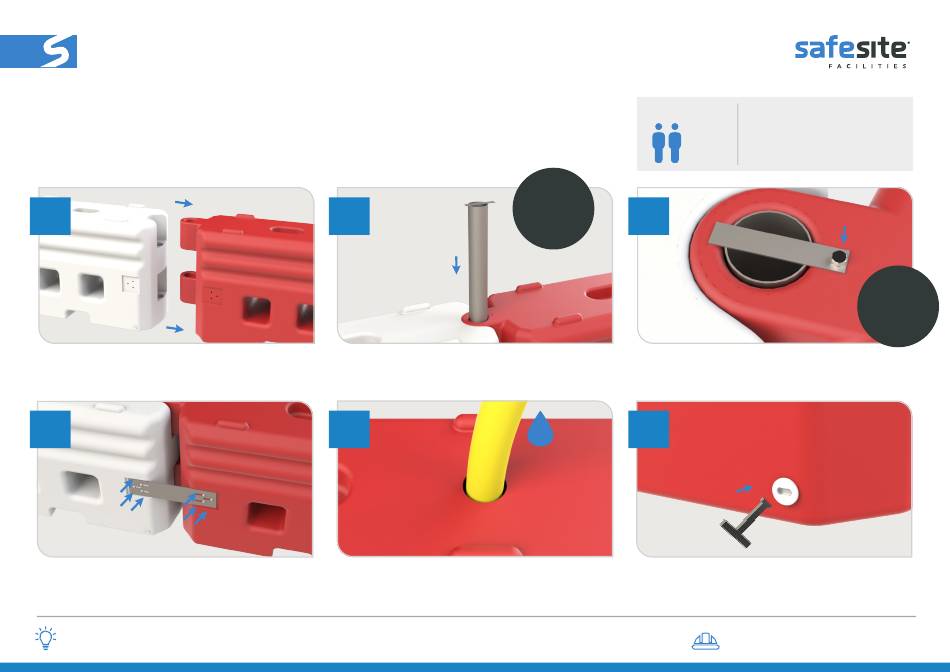

1
First, line up the barriers and slide them together to make the
connection.
4
For added security and resistance place the face plate on
each side of the barrier and fasten the 12 screws with an allen
key. Bolts should never be overtightened, and never use a drill
or impact driver as this may cause damage to the barrier.
Useful Tip: Make sure NOT to bang or hammer the connection pin in place as this can pierce the plastic causing the barrier to leak water,
this in turn will negatively effect the barriers resistance capabilities if the leak is not noticed and barrier replaced.
2
Next, insert the connection pin into the connection hole.
Do NOT hammer this into place.
5
Once all barriers are securely set up, fill each barrier with
water up to 540L. Once the barriers are full replace cap.
People to Install:
Ignore this
3
step if you
plan to install
fencing or
hoarding
Secure the pin by screwing through the eyelet on top into the
threaded hole situated next to the opening. Avoid using a drill
/ impact driver as this may cause damage to the barrier.
6
When it is time to dismantle the RB22's locate the release
plug at the bottom of the barriers To unscrew and re-secure
the release plug please use the 'T' shape key provided.
Equipment / Accessories Needed:
• Connection pins & bolts
• Metal side plates & screws
• Drainage plug key
• Allen key
Ignore this
step if you
plan to install
fencing or
hoarding
Wear the appropriate PPE for this task.
