- Page 1 USR-W660 User Manual Wi-Fi Serial Device Server User Manual (Cost effective) USR-W660 V2.0 Be Honest & Do Best Your Trustworthy Smart Industrial IoT Partner pusr.c...
-
Page 2: Table Of Contents
USR-W660 User Manual Content 1. Introduction ..............................- 4 - 1.1. Features ..............................- 4 - 2. Get Started ...............................- 5 - 2.1. Login router ............................- 5 - 2.2. Brief introduction of the webpage ......................- 6 - 3. Status & System ............................... - 6 - 3.1. - Page 3 USR-W660 User Manual 5. Serial device server function ..........................- 23 - 5.1. Serial port settings ..........................- 23 - 5.1.1. Time triggered mode ........................- 24 - 5.1.2. Length trigger mode ........................- 25 - 5.2. Communication settings (TCP/UDP socket) ..................- 25 - 5.2.1.
-
Page 4: Introduction

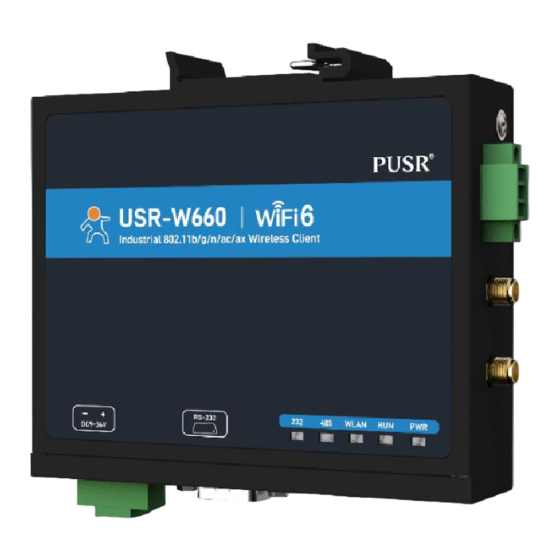

1. Introduction USR-W660 is a WIFI6 industrial wireless client with high speed, wide connection, low latency and high stability. The measured speed of WIFI6 is up to more than 700Mbps. It can carry more than 8 WIFI clients in AP mode. -
Page 5: Get Started
2. Get Started 2.1. Login router Power on the USR-W660 device，connect PC to USR-W660 via LAN port or via Wi-Fi, users can login router via Chrome or the other browser. The default network parameters are shown in the following table: Table 1. -
Page 6: Brief Introduction Of The Webpage
USR-W660 User Manual Figure 1. Login Page 2.2. Brief introduction of the webpage On the left side of the web page is a tab page where you can specifically set some parameters of the module. Status: Mainly displays the device’s name information, firmware version, routing table, running status, serial port communication status, etc.;... -
Page 7: Name And Password
USR-W660 User Manual Figure 2. System Status 3.2. Name and password The default password can be changed, and the default password is root, and the username cannot be set. This password is the management password (webpage login password). The default host name of the wireless client is USR-W660-XXXX. -
Page 8: Http Port
USR-W660 User Manual as follows. Figure 4. Restart Schedule Settings 3.4. HTTP port USR-W660 can set the login web port number to prevent non-operation and maintenance personnel from easily logging into the wireless client for configuration. Figure 5. HTTP Port settings pusr.c... -
Page 9: Ntp
USR-W660 User Manual 3.5. NTP Time synchronization: The local time can be synchronized through "Sync Browser Time" and the default time zone of the wireless client can be set. NTP calibration: The wireless client can perform network time adjustment, and the NTP client function is enabled by default. -
Page 10: Parameters Backup/Firmware Upgrade
USR-W660 User Manual Figure 7. Remote Log Local log Kernel log level: supports debugging, information, attention, warning, error, fatal error, alert, emergency, a total of 8 levels; debugging is the lowest and emergency is the highest in order; Application log level: same as above;... - Page 11 Note: The configuration file of USR-W660 must be imported, otherwise configuration confusion may occur; Try to import and configure the same version of firmware. Large version differences may cause configuration confusion.
-
Page 12: Network Introduction
USR-W660 User Manual 4. Network introduction 4.1. WAN interface Figure 10. WAN Interface settings Note: 1 wired WAN port, 1 wireless WAN port, the WAN port is the wide area network interface; Support DHCP client, static IP, PPPOE mode (only wired WAN port);... -
Page 13: Static Ip
USR-W660 User Manual Figure 11. DHCP Client settings 4.1.2. Static IP Fill in the IP address in the same network segment as the upper-level router. The IP, gateway and subnet mask must be filled in correctly. If it is a dedicated public network cable, the IP, subnet mask, gateway and DNS server must be filled in correctly according to the operator's IP, subnet mask, gateway and DNS server. -
Page 14: Lan Interface
USR-W660 User Manual Figure 13. PPPoE settings 4.2. LAN interface The LAN port is a local area network. There is one LAN port and one WAN/LAN port. Figure 14. LAN Interface settings Note: 1 LAN port, 1 WAN/LAN configurable; The default static IP address is 192.168.1.1, and the subnet mask is 255.255.255.0. This parameter can be modified, for example, the static IP is modified to 192.168.2.1;... -
Page 15: General Setup
USR-W660 User Manual The DHCP server function is enabled by default, and all devices connected to the LAN port of the wireless client can automatically obtain an IP address; With simple status statistics function; 4.2.1. General setup Figure 15. General setup settings 4.2.2. -
Page 16: Network Switch (Network Priority)
USR-W660 User Manual You can adjust the starting address of the DHCP pool and the address lease time; DHCP default allocation range starts from 192.168.1.100; Default lease period 12 hours 4.3. Network switch (Network priority) In this interface, users can choose network priority. The default is to use the WAN port network first. -
Page 17: Wireless Ap
USR-W660 User Manual Secondary IP/domain name can be set 119.29.29.29 Server Third Server IP/domain name can be set 8.8.8.8 Ping Interval Link detection interval: configurable, range: 1-600s Package Size Ping packet size: configurable, range: 0-1024 bytes Timeout Ping timeout: configurable, range: 100-20000ms... -
Page 18: Client Information
USR-W660 User Manual Figure 18. Wi-Fi settings Table 3. Wi-Fi settings Items Description Default Enable To choose whether to enable the Wi-Fi function. Enable Hide SSID To choose whether to hide the SSID. Disable If the SSID is hidden, the user cannot search for the Wi-Fi name on the mobile phone or PC. -
Page 19: Wwan Settings (Sta Mode)
USR-W660 User Manual Figure 19. Client Information 4.5. WWAN settings (STA mode) 2.4G or 5.8G wifi client function can be turned on. Figure 20. Wi-Fi Client Settings 4.5.1. 2.4G/5.8G STA configuration Figure 21. STA Settings pusr.c - 19 -... -
Page 20: Ap Information
AP to be connected; Only one of 2.4G and 5.8G STA can be enabled. 4.5.2. AP information If the USR-W660 connect to upper-level Wi-Fi successfully, the information will be displayed in this page. Figure 22. AP Information pusr.c... -
Page 21: Dhcp Function
USR-W660 User Manual 4.6. DHCP function Static address assignment: Set at Network-DHCP. This feature is an extension of the LAN interface DHCP settings and is used to assign fixed IP addresses and host identities to DHCP clients. Use “Add” to add new lease entries. MAC-address can be used to identify a host, IPv4-address can be used to assign an address, and hostname can be used to assign an identity. -
Page 22: Wan/Lan Switching
USR-W660 User Manual 4.7. WAN/LAN switching Figure 24. WAN/LAN Switching 4.8. Network diagnostics Illustrate: Online diagnostic functions, including Ping tool, routing analysis tool, and DNS viewing tool; Ping is a Ping tool that can perform a ping test on a specific address directly on the wireless client;... -
Page 23: Serial Device Server Function
Figure 25. Network Diagnose 5. Serial device server function USR-W660 is equipped with RS232/RS485, supports TCP, UDP, MODBUS, MQTT, HTTPD and other network protocols, and supports heartbeat packets, registration packets, AT command and other special functions. 5.1. Serial port settings In this interface, you can set the baud rate, data bits and other parameters of the serial port. -
Page 24: Time Triggered Mode
USR-W660 User Manual Figure 26. Serial port parameters Table 5. Detail parameters of serial port Items Description Default Baud Rate To set the baud rate of RS232 or RS485, you can set: 115200 1200/2400/4800/9600/19200/38400/57600/115200/230400 Note: Only RS485 supports 230400 Data Bits... -
Page 25: Length Trigger Mode
When W660 receives data from UART, it will continuously check the number of bytes received. A frame is considered complete if the number of bytes received reaches a certain "length threshold". USR-W660 sends this frame data to the network as a TCP or UDP packet. The "length threshold" here is the packaging length. The settable range is 5~1500 bytes. -
Page 26: Tcpc Mode(Tcp Client)
USR-W660 User Manual Items Description Default Name Set the name of this link. Null Protocol Select the network protocol, you can choose: TCPC TCPC/TCPS/UDPC/UDPS/HTTPD/MQTT/AWS/ALI. Enable Whether to enable this link, ON (enable)/OFF (disable). Enable Description Set notes for this link. - Page 27 USR-W660 User Manual Local Port Port of W660. Heartbeat Set whether to enable the heartbeat packet function, ON Packet (enable)/OFF (disable ). Heartbeat packet HEX: hexadecimal type, type ASCII: character type. Heartbeat packet Heartbeat packet data content. None data Heartbeat...
-
Page 28: Tcps Mode(Tcp Server)
USR-W660 User Manual COM1+COM2 ： Data is transmitted by RS485 and RS232 both. The version can be TLS1.0 or TLS1.2. TLS Authentication NO AUTH: No certificate verification is required. NO AUTH Server: Only the server certificate is verified. BOTH: Both client and server certificates need to be validated. - Page 29 USR-W660 User Manual Figure 30. TCP server parameters settings page Table 8. Detail parameters of TCP server Items Description Default Enable Whether this link is enabled, ON (enabled)/OFF (disabled ). Name Set the name of this link. TCPS_X Description Set the remark information of this link.
-
Page 30: Udpc Mode(Udp Client Mode)
USR-W660 User Manual COM1+COM2 ： Data is transmitted by RS485 and RS232 both. Offline Data ON: Offline data will be cached and sent when get online Cache again. OFF: Offline data will be not cached. Data Overflow Discard old Data: Store the latest data. - Page 31 USR-W660 User Manual Items Description Default Enable Whether this link is enabled, ON (enabled)/OFF (disabled ). Name Set the name of this link. UDPC_X Description Set the remark information of this link. UDPC_X Server Address IP or domain name of server.
-
Page 32: Udps Mode(Udp Server)
USR-W660 User Manual COM1+COM2 ： Data is transmitted by RS485 and RS232 both. 5.2.4. UDPS Mode(UDP Server) Select UDPS mode. Figure 33. UDPS settings Table 10. Detail parameters of UDPS Items Description Default Enable Whether this link is enabled, ON (enabled)/OFF (disabled ). -
Page 33: Mqtt Mode
USR-W660 User Manual 5.2.5. MQTT Mode 5.2.5.1. Basic settings of MQTT Select MQTT mode. Figure 34. MQTT settings Items Description Default Enable Whether this link is enabled, ON (enabled)/OFF (disabled ). Name Set the name of this link. MQTT_X Description Set the remark information of this link. - Page 34 USR-W660 User Manual Authentication If the server requires username and password authentication, it needs to be turned on. ON: Enable authentication. OFF: Disable authentication. MQTT Will MQTT connection flag. When network disconnected abnormally, the server will publish this will message to other clients that subscribe to this will topic.
- Page 35 USR-W660 User Manual 5.2.5.2. Subscribe/Publish Topic The topic adding function is mainly used to add publishing or subscribing topics. Configuration parameters include basic parameters such as name, TOPIC, QOS , and whether to retain messages. The function of serial port association is to associate the topic with a certain serial port.
- Page 36 USR-W660 User Manual 5.2.5.3. AWS Connection Connect to AWS via MQTT. Figure 36. AWS settings Table 12. Detail parameter of AWS Items Description Default Whether this link is enabled. ON (enabled) / OFF Enable (disabled) Name Set the name of this link.
- Page 37 USR-W660 User Manual Interval(s) Unit: Second, Range: 1~3600 Clean Session MQTT protocol connection flag, used to control the survival time of the session state OFF: disable ON: enable Server Root Upload server CA certificate file NULL CA file Device signed...
-
Page 38: Httpd Mode(Http Client)
USR-W660 User Manual Name Function description Default value Type Topic type: optional publish/subscribe publish Name The name of the topic NULL Topic Topic: topic content NULL Topic message quality, configurable: 0 at most once at least 1 time Accurate once... -
Page 39: Heartbeat / Registration Package
USR-W660 User Manual Figure 38. HTTP client settings Items Description Default Enable Whether this link is enabled, ON (enabled)/OFF (disabled ). Name Set the name of this link. HTTPD_X Description Set the remark information of this link. HTTPD_X Request method... -
Page 40: Advanced Settings
USR-W660 User Manual data in the registration packet can be MAC or custom registration data. Explanation: Selecting MAC means using the WAN port MAC address as the content of the registration packet. This function is only available when the link is set to tcpc or udpc mode. - Page 41 USR-W660 User Manual Heartbeat Type HEX: hexadecimal type ASCII: character type Refer to section 8.2.7.2 for heartbeat packet details User-Defined Content of the heartbeat packet NULL Packet Heartbeat Interval Interval at which heartbeat packets are sent, in seconds Serial Binding...
-
Page 42: Service Function
Someone's Cloud platform. The USR-W660 default disables PUSR Cloud service function. The interface can be configured to report parameters such as traffic statistics, network status, and heartbeat packets. It also supports data reporting to private deployments. - Page 43 USR-W660 User Manual supports this service (check under the "Service" dropdown menu and select the corresponding DDNS service provider, here using Peanut Shell). The setup method is as follows: Figure 41. Dyndns Service DDNS function provides dynamic domain name resolution capability for wireless clients in the external ...
-
Page 44: User Defined Dns Service
USR-W660 User Manual 6.2.2. User Defined DNS Service Figure 42. User defined DNS settings Items Description Default Enable Check to enable DDNS functionality Event Choose which WAN port as needed wan_wired interface Service Choose the corresponding server, here selecting Custom dyndns.org... -
Page 45: Snmpd
6.3. SNMPD The USR-W660 device is equipped with SNMP (Simple Network Management Protocol) service, which allows you to remotely view device information, modify device parameters, and monitor device status using the SNMP protocol. It eliminates the need to be physically present on-site for monitoring and configuring the device. This device supports SNMP versions V2C and V3. -
Page 46: Contact Us
USR-W660 User Manual encryption Encryption protocol type, either DES or AES mode encryption Encryption password used as the encryption private key privpass passwd sysLocation Location of this device JiNan sysContact Person to contact for this device www.pusr.com sysName Name of this device Smart_Router 7. - Page 47 USR-W660 User Manual respect to the accuracy or completeness of the contents of this document and reserves the right to make changes to specifications and product descriptions at any time without notice. USR IoT and/or its affiliates do not make any commitment to update the information contained in this document.
- Page 48 USR-W660 User Manual Official Website: www.pusr.com shop.usriot.com Official Shop: Technical Support: h.usriot.com Inquiry Email: inquiry@usriot.com Skype & WhatsApp: +86 13405313834 关注有人微信公众号 登录商城 Product Catalog Facebook Youtube Click to view more: & & pusr.c...
