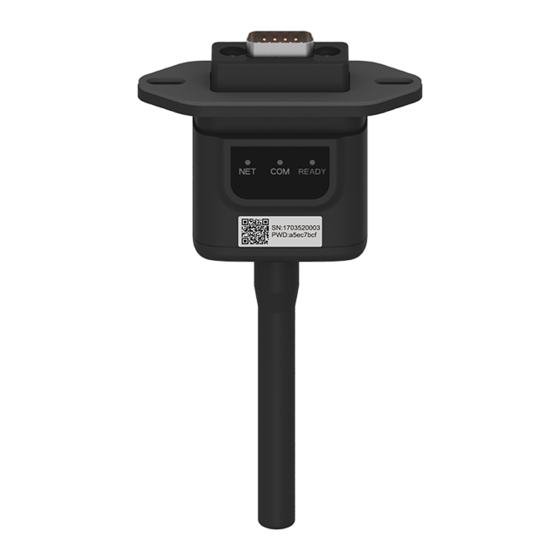

- Page 1 Stick Logger Product Model: LSW-3-C...
-
Page 2: Download App
Without written permission, any content of this document (partly or entirely) cannot be extracted, copied or transmitted in any form by any company or individual. iPhone:Search "SOLARMAN Smart" in Apple Store. Android:Search "SOLARMAN Smart" in Google Play. Warning: Please remove logger after power off. - Page 3 Stick Logger-LSW-3-C-lnstallation Guide Stick Logger Installation Type 1 Step1: Assemble logger to the inverter communication interface as shown in the diagram. Warning: Please do not hold the logger body to rotate while install or remove the logger. Type2 Step 1: Assemble logger to the inverter communication interface as shown in the diagram.
-
Page 4: Logger Status
Stick Logger-LSW-3-C-lnstallation Guide Logger Status The normal operation status of the stick logger, when router connected to the network normally: Check Indicator light 1.Successful connection status with serve: NET light keeps on after the logger powered on. 2.Logger running normally: READY light flashes. - Page 5 ® �2 . � ��M. � Stick Logger-LSW-3-C-lnstallation Guide 1.Stick logger does 1.Stick logger does not Abnormal State Processing have a network. Connection between not have a network. Slow logger and router 2.Antenna abnormal 2.Antenna abnormal flash abnormal 3.Router WiFi signal 3.Router WiFI signal...
- Page 6 Usage Methods and Notices USER MANUAL for SOLARMAN for Reset Button Smart APP 1.Registration Usage methods and key-press descriptions for reset button Go to SOLARMAN Smart and register. Key-press Status Description Light Status Click "Register" and create your account here. SMARTLINK rapid...
-
Page 7: Network Configuration
Stick Logger-LSW-3-C-lnstallation Guide Network Configuration .. _ ..After the logger is added, please configure the network to ensure normal operation.Go to "Plant Details"-"Device List", find the target SN and click • "Networking'' ,---------------------------------, 3.Add a Logger "'"- Method 1: Enter logger sn manually. - Page 8 Stick Logger-LSW-3-C-lnsta llation Guide Step 2, Connect to AP network Step 1 , Confirm WiFi Info Click "Go to connect" and find the right "AP _xxxXX" network Please make sure your phone has connected to the right WiFi network. And (XXXXX refers to logger SN).
- Page 9 Stick Logger-LSW-3-C-lnstallation Guide If configuration failure occurs, please check the following reason and try it Step 3: Auto Configuration again. Please wait for a while to complete the configuration. Then system will switch to Make sure WLAN is ON. the following page.
- Page 10 Warning: Please make sure the stick logger is working properly before you leave the site. If there is anything abnormal, pleasedo not leave the site and contact customer service at the first time. E-mail:customerservlce@solarmanpv.com If you have any technical queries about our products, please contact us and provide the following information: 1.Product model and serial number of stick logger.
Need help?
Do you have a question about the LSW-3-C and is the answer not in the manual?
Questions and answers
miten saan inventterin loggerin toimimaan uudestaan kun netti ja reititin vaihtuu
To get the SolarMAN LSW-3-C inverter logger working again after changing the internet and router, follow these steps:
1. Check Router Connection:
- Ensure the router has internet access.
- Verify the logger is properly connected to the router.
2. Reconnect Logger:
- Power off the logger, then remove and reinstall it securely.
- Check the connection between the logger and the inverter to ensure it's not loose.
3. Check Router Settings:
- Ensure the router settings allow the logger to connect without restrictions (e.g., no network limitations).
4. AP Network Connection:
- Use the SOLARMAN Smart App to connect to the logger’s AP network (e.g., "AP_XXXXX").
- If prompted for a password, use the one found on the logger body.
5. Verify Power Supply:
- Confirm the inverter is providing sufficient power.
6. Contact Customer Service:
- If the above steps fail, contact customer service with the logger and inverter model and serial numbers for further assistance.
This answer is automatically generated
