Range Road RR5510 User Manual

Wood edger

Download this manual

RR5510 Wood Edger User Manual

This manual will go over some of the adjustments, controls and maintenance of the machine.

For Hydraulic fluid – we recommend AW32

Engine oil – about 1L of 5W-30 OR 10W-30 conventional oil

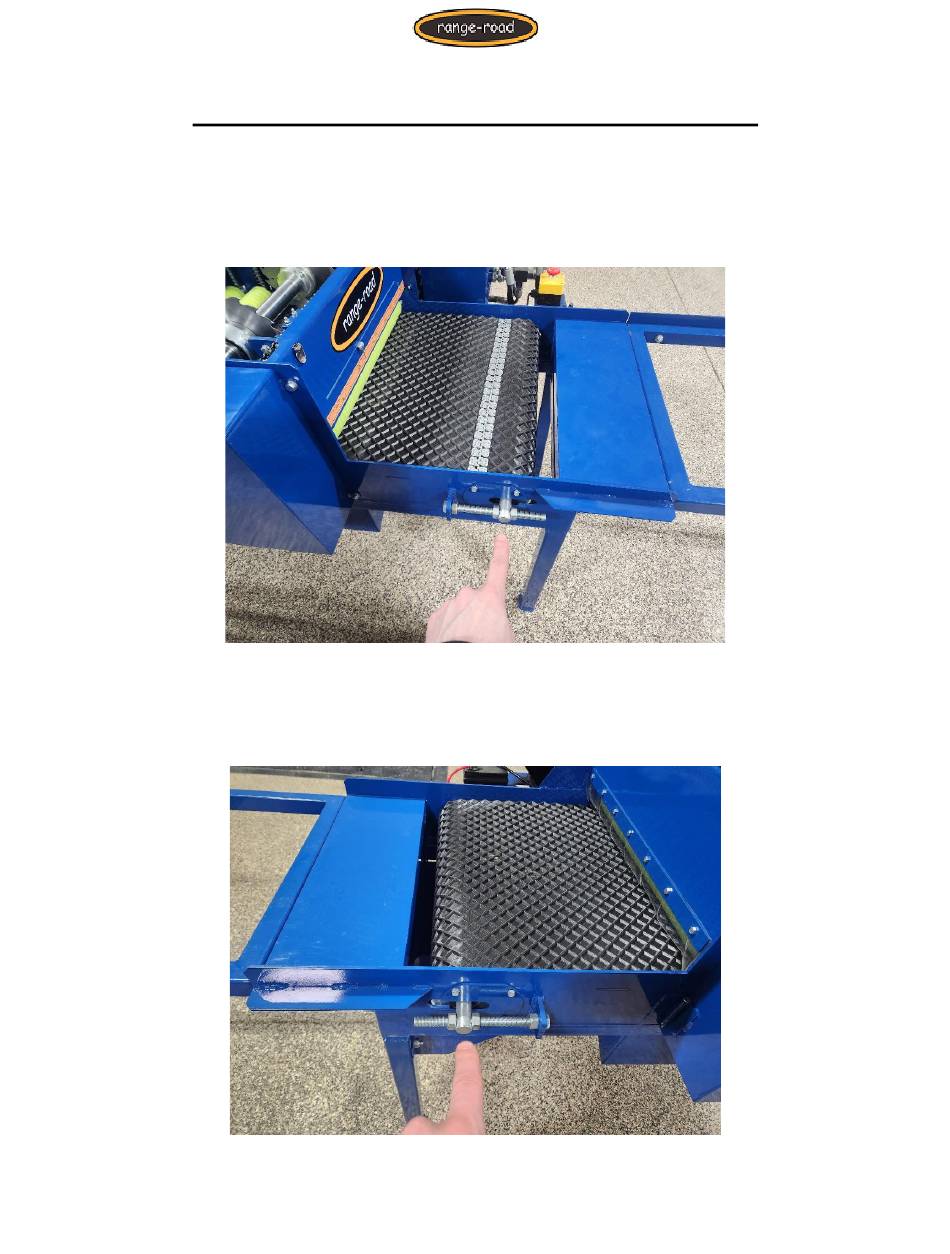

There are four of these "bolt" adjusters on the unit, 2 at each end of the main belt.

They are used to add or reduce tension on the belt – they come pre adjusted from the factory.

Only adjust if your belt is slipping or is running un-even.

Range Road Enterprises Ltd

Box 5 Site 9 RR1

Lacombe AB T4L 2N1

www.range-road.ca

Need help?

Do you have a question about the RR5510 and is the answer not in the manual?

Page 1 RR5510 Wood Edger User Manual This manual will go over some of the adjustments, controls and maintenance of the machine. For Hydraulic fluid – we recommend AW32 Engine oil – about 1L of 5W-30 OR 10W-30 conventional oil There are four of these “bolt” adjusters on the unit, 2 at each end of the main belt.
Page 2 Moving the lever “down” will cause the belt to run backwards – this setting does NOT have a detent. The emergency kill switch. if it is pushed down, it must be twisted to pop back up. No spark when switch is depressed. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe AB T4L 2N1 www.range-road.ca...
Page 3 The ball valve is for large adjustments and the needle valve is for fine tuning – you may find that you only ever need to adjust one or the other to get your desired speed. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe AB T4L 2N1 www.range-road.ca...
Page 4 Remove cover and check belts often to make sure belt condition is good. There is a grease fitting on the back bearing housing – ensure this is greased daily. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe AB T4L 2N1...
Page 5 These bolts can be adjusted if you are trying to edge 2” thick lumber – some of the machines are adjusted so 2” thick lumber has a hard time entering the machine – although you may find they never need to be adjusted on yours. Range Road Enterprises Ltd Box 5 Site 9 RR1 Lacombe AB T4L 2N1...
