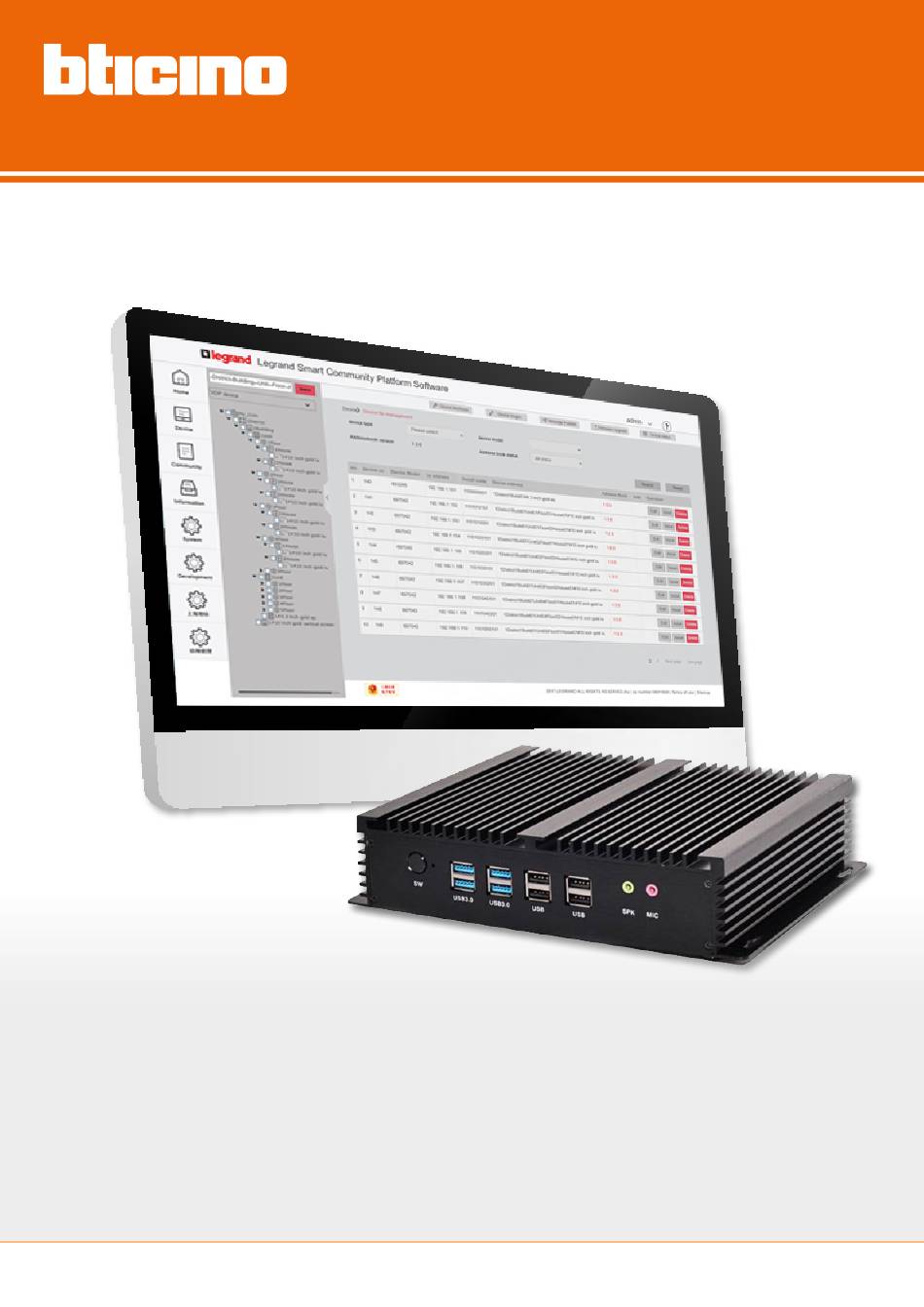

- Page 1 Server DES Installation manual RA00193AA_I www.bticino.com...
- Page 2 Server DES Installation manual...
- Page 3 FULL IP system installation guide Preliminary requirements Procedure Community VLAN network creation Community structure definition Community structure creation Mac address registration Forwarding of the address book to the DES Server Installation of the devices Activation of the devices System test...
-
Page 4: Preliminary Requirements
To assign a reserved IP address within the DHCP server, the MAC address of the device is normally required. To find the MAC address: 1. On the client PC, connected to the same data network as the DES Server, open the DOS prompt and enter: "ping siteserver." 2. Note down the IP address 3. - Page 5 To create the system structure and configure the its devices, follow the steps below in progressive order. Note: In the example procedure shown below, it is assumed that the on-site configuration is performed using a client PC connected to the same network as the DES Server. Step Community VLAN network creation...
- Page 6 Server DES Installation manual Community VLAN network creation To configure the community network, configure the system by connecting to the DES Server from a client PC and going to the address: http://siteserver.local:8081/cms/legrand.html. This guide will explain the basic steps. Before starting on the Client PC, open a browser 1.
- Page 7 Server DES Installation manual 6. Click to open the section where it is possible to create your new community VLAN network 7. Click to create the community VLAN network...
- Page 8 9. Enter the Subnet mask address 10. Enter the fixed IP address of the DES Server given to you by the network administrator 11. Enter the starting address from which the IP addresses of the FULL IP devices will be generated 12.
- Page 9 Server DES Installation manual Community structure definition It is now necessary to define parameters like number of Areas, Buildings, Risers and so on, as well as other details that will define the structure of the Community. In this section, it is also necessary to define the type of call that will be used for all Community calls.
- Page 10 Server DES Installation manual 4. Change Community Name 5. Selects the fixed IP address of the Community DES Server 6. Change the address of the DNS server (unless there are special requirements, we recommend to keep the default address) 7. Change the address of the backup DNS server (unless there are special requirements, we recommend to keep the default address) 8.
- Page 11 Server DES Installation manual Community structure creation Depending on how your Community is composed, you will need to hierarchically enter: AREA BUILDING RISER FLOOR APARTMENT DEVICE This document will show the creation of a sample structure composed as follows: AREA...
- Page 12 Server DES Installation manual 1. Click the Community with the right mouse button: a drop-down menu will appear with the commands for its configuration 2. Click to add a new Area 3. Select the Area device (EP Area1) 4. Select the quantity...
- Page 13 Server DES Installation manual 6. Select the second Area device (GS Area1) 7. Select the quantity 8. Click to add 9. Click to confirm...
- Page 14 Server DES Installation manual After inserting the devices, you will be able to customize their name 10. With the right mouse button click the device that you want to rename: a drop-down menu will appear 11. Click to open the edit window 12.
- Page 15 Server DES Installation manual 14. Click the Area with the right mouse button. This will open a drop-down menu 15. Click to add a new Building...
- Page 16 Server DES Installation manual 16. Select the Building device (EP Building1) Note: the software automatically applies a filter to only show devices that are consistent with the component that you are adding 17. Select the quantity 18. Click to add...
- Page 17 Server DES Installation manual 20. Click the Building with the right mouse button. This will open a drop-down menu 21. Click to add a new Riser 22. Enter the progressive Riser number 23. Select the number of Floors in the Building (5) 24.
- Page 18 Server DES Installation manual 28. Click to confirm Repeat the same steps for Riser 2 Repeat the same steps for Building 2...
- Page 19 Server DES Installation manual Mac address registration Now that the structure is complete, you will need to associate the MAC addresses of the physical devices with the virtual ones included earlier in the structure. 1. Click to enter the device registration section This section includes all the devices to associate.
- Page 20 Server DES Installation manual Alternatively, it is possible to select a branch and only view the devices belonging to that branch. It is also possible to select a device from the menu tree and enter the MAC address individually. The advantage of this second method, is that it is easy to identify devices based on their geographical location.
- Page 21 2. Click to update the system address book 3. Click to confirm 4. Click to finish The address book is now saved in the DES Server. To avoid accidental loss, it is also possible to save it in an archive file. 90:02:8A:03:A0:08...
- Page 22 Server DES Installation manual Installation of the devices To transfer the configuration to the devices, these must be installed and powered Switch off the power supply to the system and check that there is no voltage Install the devices The RJ45 cable must be at least 200 mm long...
- Page 23 Server DES Installation manual The RJ45 cable must be at least 200 mm long...
- Page 24 Thanks to the previously entered MAC address, once powered, the device checks that a configuration (address book) is available on the DES Server, and if so acquires it. Note: devices that were already configured in the past must be reset.
- Page 25 Server DES Installation manual System test It is now possible to test the system, for example by making a call from the EP 1. Touch to make the call 2. Enter the IU address BUILDING 1 Building Riser Floor Apartment...
- Page 26 Server DES Installation manual the call is in progress 4. Reply from the IU Test the audio signal on the EP Test the audio/video signal on the IU 5. Tap to capture an image of the screen...
- Page 27 Server DES Installation manual A confirmation message appears. 6. Touch to open the EP door lock A confirmation message appears 7. Tap to adjust the volume 8. Touch to end the call...
- Page 28 BTicino SpA Viale Borri, 231 21100 Varese www.bticino.com BTicino Spa reserves at any time the right to modify the contents of this booklet and to communicate, in any form and modality, the changes brought to the same.
