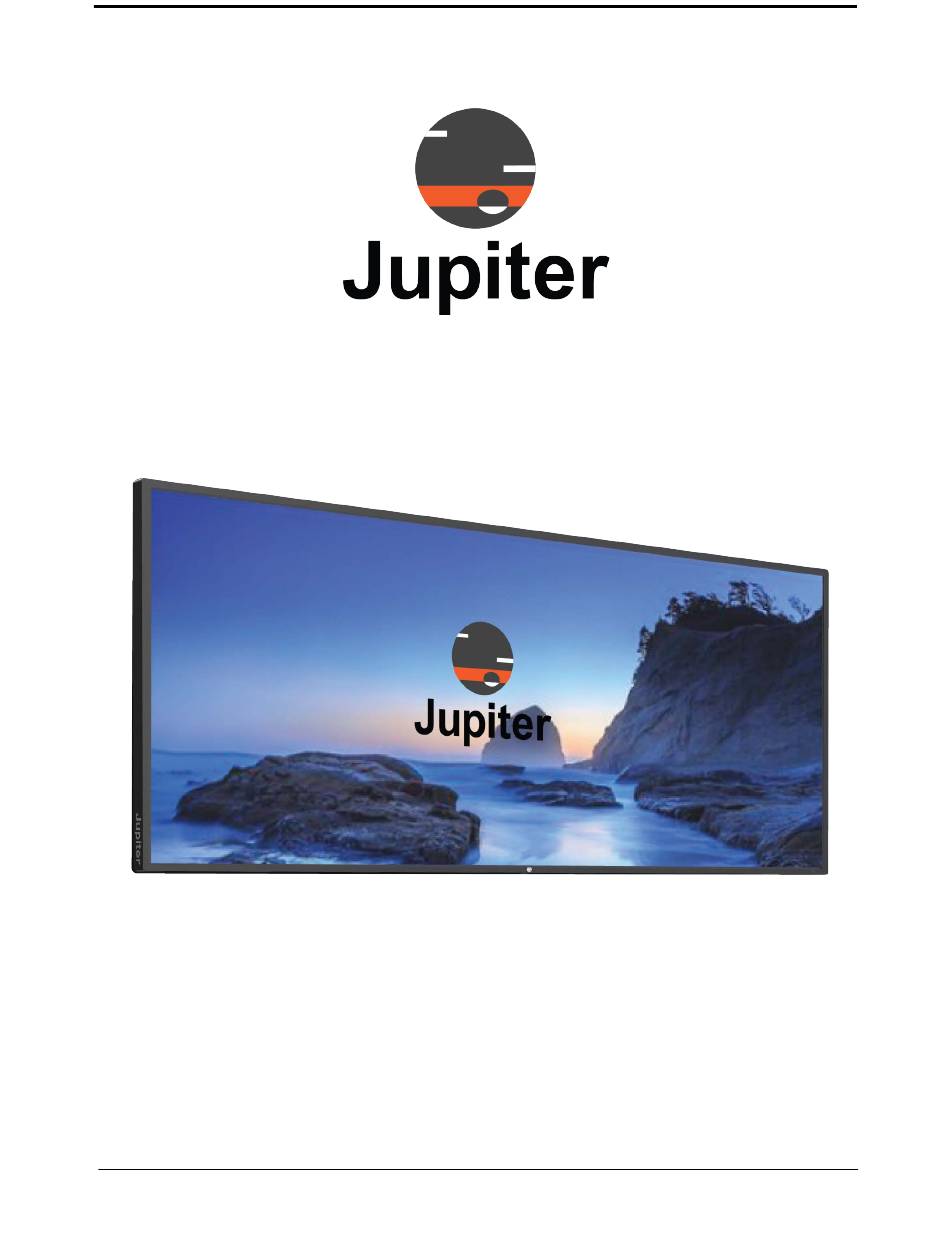

- Page 1 Pana 105T Interactive Display User Manual February 8, 2024 A-PAN-000-01, Rev. C...
- Page 2 Jupiter Systems owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Jupiter Systems is prohibited. The contents of this manual are subject to change without notice to improve quality.
-
Page 3: Table Of Contents
2. P 105T F HAPTER EATURES 2.1 Features........................... 7 2.2 Views of Your Pana 105T ....................8 2.2.1 Buttons & Remote Control ..................8 2.2.1.1 Effective Use of Remote................8 2.2.1.2 Batteries for Remote Control..............9 2.2.2 Connectors......................10 2.2.3 Speakers......................11 2.3 Specifications ......................... - Page 4 Pana 105T User Manual Table of Contents 3. P 105T O HAPTER PERATION 3.1 Buttons on Pana and Remote..................19 3.2 Menus/Settings ......................21 3.2.1 Input (Remote) ..................... 21 3.2.2 Input (Display)...................... 21 3.2.3 Picture........................22 3.2.4 Colour ........................24 3.2.5 Audio........................
-
Page 5: Chapter 1. Read M E First
Chapter 1 IRST Congratulations on your purchase of the Pana Collaborative display! Pana's 21:9 7 plus-foot wide Pana 105T interactive touch collaborative display canvas is a true focal piece of collaboration and visualization technology. 1.1 Read Me First This user manual was created to help you get the most out of your display. -
Page 6: Cleaning
• Should there be excess dirt and/or grease buildup, use a very diluted solution of water with less than 5% dish soap (roughly less than 1 part mild dish soap to 20 parts water) Pana 105T User Manual... -
Page 7: Receiving And Inspecting Shipment
While still in the lower shipping container, plug in power, turn on power, connect to a video source, such as a 128 gray and a full 255 white from a paint program and visually inspect the screen Pana 105T User Manual... -
Page 8: Unpack The Pana
Fully removing the Pana from the base is only recommended when installing the Pana in its final mounted position. Using at least two people lift and slide the Pana out of the bottom base foam padding. Chapter 4, Pana 105T Installation, on page 35 for guidance about mounting and installing the Pana. Pana 105T User Manual... -
Page 9: Storage Considerations
1.8 Modifications to Product CAUTION: Any changes or modifications, including but not limited to hardware and software modifications not expressly approved by Jupiter Systems could void the user’s authority to operate the equipment. 1.9 Disposal of Product The product contains small amounts of tin, lead and/or mercury. Disposal of these materials may be regulated due to environmental considerations. - Page 10 This page has been intentionally left blank Pana 105T User Manual...
-
Page 11: Chapter 2. Pana 105T Features
Chapter 2 105T F EATURES Optimize team productivity, provide improved interaction and workplace collaboration technology with Jupiter System's Pana 21:9 displays. 2.1 Features The Pana 105T provides the following exciting features: 21:9 Panoramic • The extra wide form factor is inspired by our natural human ability to see wider than tall. -
Page 12: Views Of Your Pana 105T
Chapter 2: Pana 105T Features 2.2 Views of Your Pana 105T 2.2.1 Buttons & Remote Control Figure 2.1: and remote control buttons Pana 105T Section 3.1 Buttons on Pana and Remote on page 19 for button functions and Section 3.2 Menus/Settings on page 21 for information about settings. -
Page 13: Batteries For Remote Control
Views of Your Pana 105T For effective use of the remote: • Ensure there is a clear path between the remote control and the Remote Sensor window on the Pana display. The remote works within a 30° angle from perpendicular to the screen •... -
Page 14: Connectors
Chapter 2: Pana 105T Features 2.2.2 Connectors Optional OPS devices (Open Pluggable Specification) are available to add computing capabilities to Pana displays. Please see the Jupiter Systems website or talk with your sales representative. Figure 2.4: input, power and sound connections... -
Page 15: Speakers
Views of Your Pana 105T 2.2.3 Speakers There are no removable parts for the speakers. Use the Optical output or audio output for sound system accessories. Figure 2.5: Speaker location Pana 105T User Manual... -
Page 16: Specifications
Chapter 2: Pana 105T Features 2.3 Specifications 2.3.1 Screen & Touch Specifications Figure 2.6: diagonal screen size Pana 105T Table 2.1: Screen Specifications Item Description Display Dimension 105" Diagonal Aspect Ratio 21:9 Panel Resolution 5120(Horizontal) × 2160(Vertical) Maximum Display Frequency... - Page 17 Touch Type Infrared Sensor Touch Point 20 Point Touch Depth Finger Separation 25mm Minimum Touch Diameter Positioning Accuracy ±1.5mm within 90% working area Touch Response Time ≤ 10ms Report Rate ≥ 100Hz OS Support Windows/ Mac OS Pana 105T User Manual...
-
Page 18: Connector Specifications
Chapter 2: Pana 105T Features 2.3.2 Connector Specifications Table 2.3: Interface Specifications Interface Label Description Slot for optional Open Pluggable Specification device. Adds computing capability to OPS slot displays. Power cable appropriate for region. Power cord (ships with product) Power HDMI 2.0 x 1... -
Page 19: Audio Output Specifications
Rated Impedance 8 OHM ± 10 % 250Hz± 20 %Hz Effective Bandwidth F0~20K ± 20 % Voltage Sensitivity 83 SPL± 3dB Distortion 5 % MAX Handling Power 12 W / 96HR Maximum Power 15W / 30MIN Pana 105T User Manual... -
Page 20: Physical & Environmental Specifications
Chapter 2: Pana 105T Features 2.3.4 Physical & Environmental Specifications Figure 2.7: Physical dimensions Table 2.5: Physical Specifications Item Description Dimensions - width x height x depth - 2520w x 1105h x 109d mm (99.2w x 43.5h x 4.3d inches) mm (inches) 2520mm (99.2 inches) - Page 21 Environmental Considerations Packaging Brown corrugated carton + EPE foam (100% recyclable) Certifications cULus, FCC, RoHS, Energy Star, CEC, CA65, CE, ErP , REACH, WEEE, UKCA, IECEE, SAA, RCM, GEMS, PSE, VCCI, PSB, CCC, INMETRO, NOM, BIS Pana 105T User Manual...
- Page 22 This page has been intentionally left blank Pana 105T User Manual...
-
Page 23: Chapter 3. Pana 105T Operation
Chapter 3 105T O PERATION This chapter discusses setting up and using your Pana 105T monitor. • Section 3.2, Menus/Settings on page 21 for information about the presets and other settings • Section 3.4, Touch and Touchback on page 28 for information regarding touchback and USB ports for each input type. - Page 24 Chapter 3: Pana 105T Operation Table 3.1: Button Functions Button Located Description Pana Hard Power Switch is an On/Off button which provides power to the Pana on the bottom of the Pana near the plug. A soft power button (Power Switch/Standby) is...
-
Page 25: Menus/Settings
Menus/Settings 3.2 Menus/Settings 3.2.1 Input (Remote) Select the input source for the display. 3.2.2 Input (Display) Select the input source for the display. Pana 105T User Manual... -
Page 26: Picture
Chapter 3: Pana 105T Operation 3.2.3 Picture Aspect ratio refers to the width to height ratio of an image. This relationship can be expressed as a ratio like 21:9 or 16:9 or the aspect ratio may also be expressed by resolu- tion —... - Page 27 Adjusts the backlight intensity. Does not affect any video levels Brightness Range from 0-100 Adjusts the video settings of the Pana decoders for white level details. Jupiter highly recom- mends to leave this setting at its factory default as increasing it may make white shirts lose Contrast all level of detail and appear flat.
-
Page 28: Colour
Chapter 3: Pana 105T Operation 3.2.4 Colour Adjusts the non linear response of the overall brightness to optimize the image based on how it was captured. 2.2 is typical. Gamma Options are Off, 1.8, 2.0, 2.2, 2.4. Off is the lowest setting, 2.4 is the highest setting. -
Page 29: Audio
DP 1.4. USB-C, DP , and OPS use DisplayPort standards. • 1.1 Supports maximum resolution of 2560 x1080/25 DP Version • 1.2 Supports maximum resolution of 3840x2160/4K • 1.4 Supports maximum resolution of 5120x2160+/5K+ Pana 105T User Manual... - Page 30 Chapter 3: Pana 105T Operation • Provides for multiple monitors to be daisy chained via the DP OUT connector. Tested for two monitors. • DP MST ON and Clone Display OFF extends the desktop across multiple screens. See Figure 3.2, DP MST and Clone Display Options.
-
Page 31: Other
3.3 Input Capabilities and Cabling Considerations In order to support a 5K resolution of 5120 x 2160 @ 60Hz, cabling must be DisplayPort 1.4 or better. When possible look for DP8K certification on cables to ensure compatibility. Pana 105T User Manual... -
Page 32: Touch And Touchback
Touchback is related to the input type, which is why there is a touchback port for DP and HDMI. The touchback for USB-C is the USB-C port and will work with a USB-C hub. Figure 3.4: View of Touchback by Input Type For the Pana 105T there are variations from the simple touchback loop shown in Figure 3.3: •... -
Page 33: Touch Screen
The Jupiter warranty does not cover image burn-in. 3.6.2 Recommendations Jupiter recommends the use of a screen saver during off hours and weekends if the Pana is left on 24/7 to prevent image retention. In the special case of a Pana being used in a Microsoft Teams Rooms (MTR) deployment where no screen saver is available, Jupiter recommends following Microsoft's guidelines. -
Page 34: Aspect Ratio
Chapter 3: Pana 105T Operation 3.7 Aspect Ratio The most common broadcast aspect ratios currently are 16:9 with UHD and FHD resolutions. These 16:9 aspect ratios can be visualized as 16 squares wide and 9 squares tall. For discussion’s sake aspect ratio refers to the resolution of the incoming signal from a source. For example, Broadcast/TV signals are typically 3840x2160 (UHD), 1920x1080 (FHD) or 1280x720 (HD);... - Page 35 Stretches the input source horizontally. Circles become ovals. • Lower resolution 21:9 (not shown) A 2560x1080 21:9 source will be letterboxed (black boxing at the top and bottom) because it is keeping the vertical size and only stretching the horizontal. Pana 105T User Manual...
- Page 36 Chapter 3: Pana 105T Operation H/V Stretch • Stretches the input source both horizontally and vertically until one coordinate is limited by the screen. In the 16:9 to 21:9 stretch, the horizontal limits the stretch, so there is letterboxing at the top and bot- tom.
- Page 37 Lower resolution 21:9 input sources will be scaled and squished, so they fill the 16:9 frame just as the higher resolution 5K 21:9 source. Figure 3.8: 16:9 UHD With FD, HD, and 5120x2160 Source Inputs Pana 105T User Manual...
- Page 38 This page has been intentionally left blank Pana 105T User Manual...
-
Page 39: Chapter 4. Pana 105T Installation
Chapter 4 105T I NSTALLATION 4.1 Installation Location • Safe product operating range is from 0° C to 40° C. (32F - 104F) • Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus which produce heat •... -
Page 40: Mounting Dimensions
Chapter 4: Pana 105T Installation 4.4 Mounting Dimensions The mounting holes on the back of the display are 1500 mm by 600 mm. Pana 105T User Manual... -
Page 41: Chapter 5. Pana 105T Warranty & Support
5.1.2 Technical Assistance If you require technical assistance, please contact Jupiter Systems' technical support team. Please provide as much information to the support team about the fault and any steps you have taken in trying to resolve the issue. -
Page 42: Warranty
Should your Jupiter Commercial LCD Monitor (“Product”) fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, Jupiter Systems (“Jupiter”) will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product. -
Page 43: Warranty Limitations
Damage or defects of the Product caused by the use of accessories, parts, consumable cleaning products, or service not provided or approved by Jupiter. Damage or defects of the Product or missing items to any Product sold "As Is", "With all Faults" or similar disclaimer •... -
Page 44: How Service Is Handled
Your Product's display contains many individual pixels, and typically a small number of pixels do not function normally. Your display has been inspected and is in compliance with Jupiter's specifications, and any pixel non-functionality does not affect the operation or use of your Product's display. -
Page 45: Index
Index Numerics DP TOUCH-USB DP Version 1 to 1 Aspect Ratio setting Electrical Precautions 12, 22, 30 Aspect Ratio Environmental Considerations Audio Environmental Specifications Back-light Factory Reset 12, 23 Brightness 8, 19 Buttons Gamma Cabling Considerations Certifications Clone Display H Stretch Color Gamut H/V Stretch Colour Effect... - Page 46 Pana 105T User Manual Index Menus/Settings Resolution Minimum Touch Diameter Response Time Mounting Characteristics RS 232 Mounting characteristics Mounting Considerations Mounting Dimensions Saturation Screen Specifications serial RS232 NETWORK Sharpness Network Control Shipment Monitors Shipment Monitors Triggered Sleep Timer Minutes Speakers...
