eltwin HYPER SS0C04-20RW Instruction Manual

RV Air-Conditioning Soft-Starter
SS0C04-20RW / Single Phase
This model SureStart functions only as a soft-starter, a contactor or a relay is still required.
This model is designed to be used across a range of RV air-conditioning units. Unlike
commonplace designs, this soft-starter only requires access to the compressor's three wires
(Run, Start and Common).
Parts List:

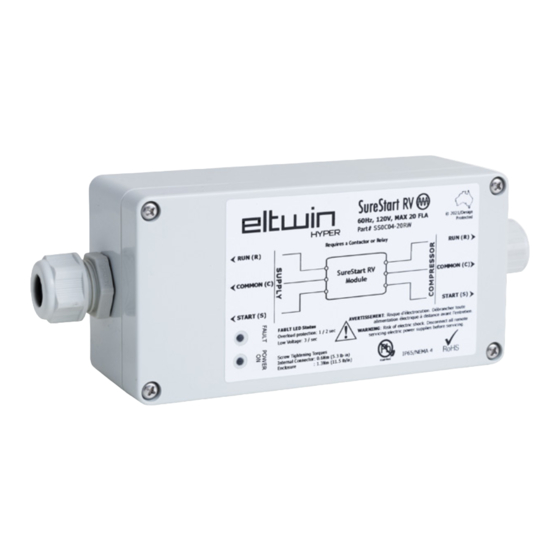

1 x SureStart Soft-starter
6 x Splice Connectors
1 x Alcohol Wipe
Warning:
1 This model does NOT electrically isolate the control box from the compressor. A suitable contactor or relay is necessary.
2 All voltage to equipment MUST be disconnected before removing any devices.
3
Allow 2 minutes to discharge run capacitor before disconnecting.
4 Do not swap the Run & Start Windings.
5 Poor crimping can lead to heating & subsequent damage to the soft starter.
LED Flash Codes:
LED
ON
FAULT
Field Wiring Terminals (Applicable if wire harness is not provided):
Wire Range: 14 AWG Cu, stranded, for all terminals (Run Winding (R) and Active(T2))
Tightening Torque: 4.4 lbs-in [0.5 Nm] terminals.
Field wiring conductors shall be rated 167°F [75°C]
Suitable for use on a circuit capable of delivering no more than 5000rms symmetrical amperes, 120 volts maximum, when protected by a non-time
delay RK5 fuse or circuit breaker rated 80A, or a time delay fuse rated 70A. The device does not provide current limiting control or equivalent.
SureStart is NOT an overcurrent protection device and must NOT be used as a replacement for any primary circuit overcurrent protection.
WARNING:
This product can expose you to chemicals which are known to the State of California
to cause cancer or birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov.
Eltwin North America sales@eltwin-hyper.com
eltwin-hyper.com
1390 Gateway Drive
Elgin, IL 60124
USA
Colour
Green
Red
Flash Code
On
Off
Rapid (3 sec)
Slow (1/2 sec)
Technical Contact:
Instruction Guide
Status
Unit powered
Unit off
Under-voltage detected
Overload protection detected
techsupport@eltwin-hyper.com
1/3
