Summary of Contents for Dayang iMOVE 3

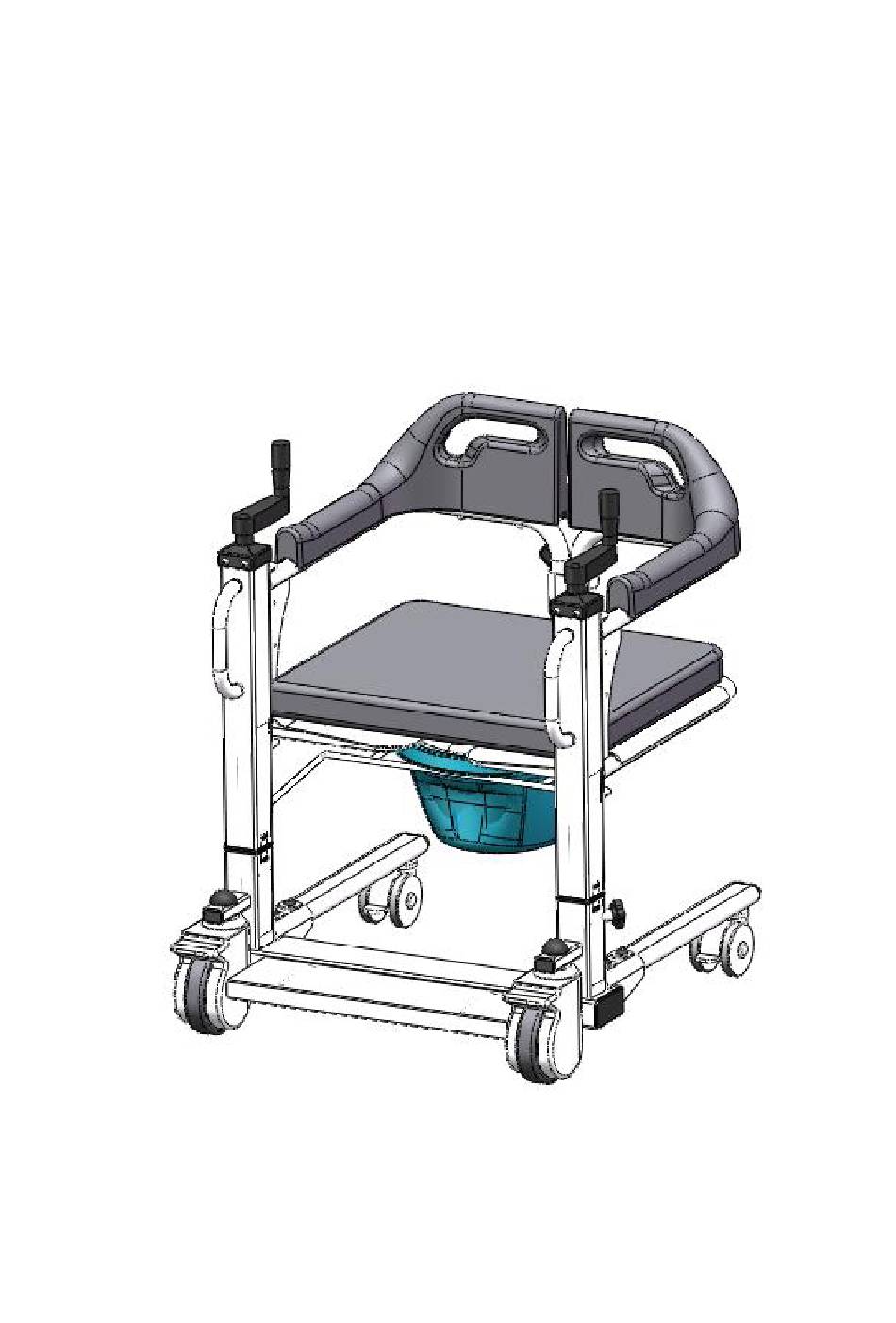

- Page 1 User manual of multifunctional transferred wheelchair DY077600(2) iMOVE 3...
-
Page 2: Table Of Contents
CONTENTS 1. Overview of "Instruction Manual" ....1 2. Scope of application ......1 3. Precautions for safe use .......1 4. Product specifications, component names ..3 5. Performance characteristics ....5 6. Driving restrictions ......5 7. Installation Notes ......5 8. Instructions for use ......9 9. -
Page 3: Overview Of "Instruction Manual
1.Overview of "Instruction Manual" This instruction manual applicable multifunctional transferred wheelchair, including information safety precautions, function descriptions, and maintenance of various models. The graphics in this manual are for user's reference only, please refer to the actual product in actual use. 2.Scope of application This product is intended for disabled people, patients and the elderly and infirm. -
Page 4: Precautions For Safe Use
3.Precautions for safe use ■ Be sure to read this "Precautions for Safe Use" carefully before use in order to use it correctly. ■ If you do not follow the instructions in "Safety Precautions", the product may be damaged, people may be injured, and even life-threatening may be involved. - Page 5 CAVEAT 1. Before use, you must check whether the components are complete and whether the components are firmly installed to ensure safe use. 2. Please adjust to a suitable height before use, and ensure that the seat plates on both sides remain at the same height. 3.
- Page 6 constant speed. 9. Don't rely on inertia to make the transferred wheelchair rush up the stairs, otherwise it will cause accident or damage; when going up and down the stairs, the operator should not move the user together with the transferred wheelchair, otherwise it will bring danger to the user.
-
Page 7: Product Specifications, Component Names
4. Product specifications, component names DY077600（2）-46 length 710mm width 600mm height 790-990mm Front wheel size 5 inches Rear wheel size inches Seat width 460mm Seat depth 400mm Seat height above ground 370-570mm net weight 25.5kg weight capacity 100kg... - Page 8 This product is composed of base, left seat frame, right seat frame, commode, upright, 5-inch front wheel, 3-inch rear wheel, foot pedal, etc. The material is welded with high-strength steel pipe. 1 - 5-inch front wheel 2-Foot pedal 3-Base 4-3-inch rear wheels 5-Upright 6-Left seat frame 7-Right seat frame...
-
Page 9: Performance Characteristics
*The graphics in this manual are for user's reference only, please refer to the actual product in actual use. 5.Performance characteristics It convenient people with mobility difficulties to shift from wheelchair to sofa, bed, seat, etc. The large opening and closing design makes it convenient for the operator to support the user from below and prevent the operator's waist from being damaged. -
Page 10: Driving Restrictions
The quick-release design of the column makes it easy to move the transfer chair and expand the moving range. 6.Driving restrictions The transfer chair is suitable for indoor use, with a travel speed of ≤3 km/h. 7.Installation instructions 1. Place the right plastic backrest on the right seat frame and fix it with 4 M5 screws and arc-shaped mesons, as shown in the following figure: (The left seat frame is installed in the same way) - Page 11 2. Place the small wheel tube under the clamping slot of the base small wheel tube and fix it with 4 M10 screws, M10 large flat mat, M10 flat mat and M10 locknut respectively, as shown in the figure below： M10 screw M10 L flat mat M10 flat mat...
- Page 12 3. The right seat frame cooperates with the upright post, put the M8 screw and the flat meson through the upright post, insert the flat meson and fix it with M8 cap nut, so that the seat frame is not loose and can rotate flexibly, as shown below: (left seat Rack in the same way).
- Page 13 If you need to use the toilet, first install the toilet wire frame into the mounting holes of the two uprights, and then load the toilet from the rear, as shown in the following figure:...
- Page 14 8.Instructions *Taking the operator transferring the user from the seat to the bed as an example, the operation steps are explained, and the transfer method between other furniture and facilities is the same. 1. Let the user sit upright and adjust the height of the transfer chair seat frame so that the bottom surface of...
- Page 15 plane; 3. Lock the 5-inch front wheel brake, lift the user's foot, and place it on the foot pedal; 4. Let the user tilt the body slightly from side to side in turn, and at the same time, operator turns corresponding side frame to let the user sit in the left right...
- Page 16 and grasps the armrests on both sides with both hands; 7. The operator checks distance between the bottom surface of the transfer chair seat frame and the seat, raises the seat frame by 2~3 cm, releases the 5-inch front wheel brake, and slowly moves the transfer chair away from the seat 8.
- Page 17 lock the 5 inch front wheel to operate); The operator fully pushed the transfer chair to the predetermined position of the hospital bed, locked the 5-inch front wheel brake, and adjusted the height of the seat frame again so that the bottom surface of the seat frame slightly touched the mattress;...
-
Page 18: Maintenance And Maintenance Methods
The operator unlocks the 5-inch front wheel, lifts the user's feet, and moves the transfer chair away from the bed. ★ If the infusion rod is installed, turn the knob to tighten and adjust the height of the infusion rod. After the transfer chair is installed, if the height of the seat is to be adjusted, the infusion rod should be removed. - Page 19 then wipe with a dry cloth; Do not contact with strong acid and alkali to prevent corrosion. Regularly check for loose nuts and screws, damaged or broken parts, and replace damaged parts if necessary. 10.Packing List After opening the packing box, please confirm the following parts and accessories: Serial NAME...
-
Page 20: Storage Conditions And Methods
12.Production date, use period Production date: See "Product Certificate". Term of use: The product has a normal service life of 5 years from the date of delivery (see product logo). 【Production enterprise name】Guangdong Dayang Medical Technology Co., Ltd...
