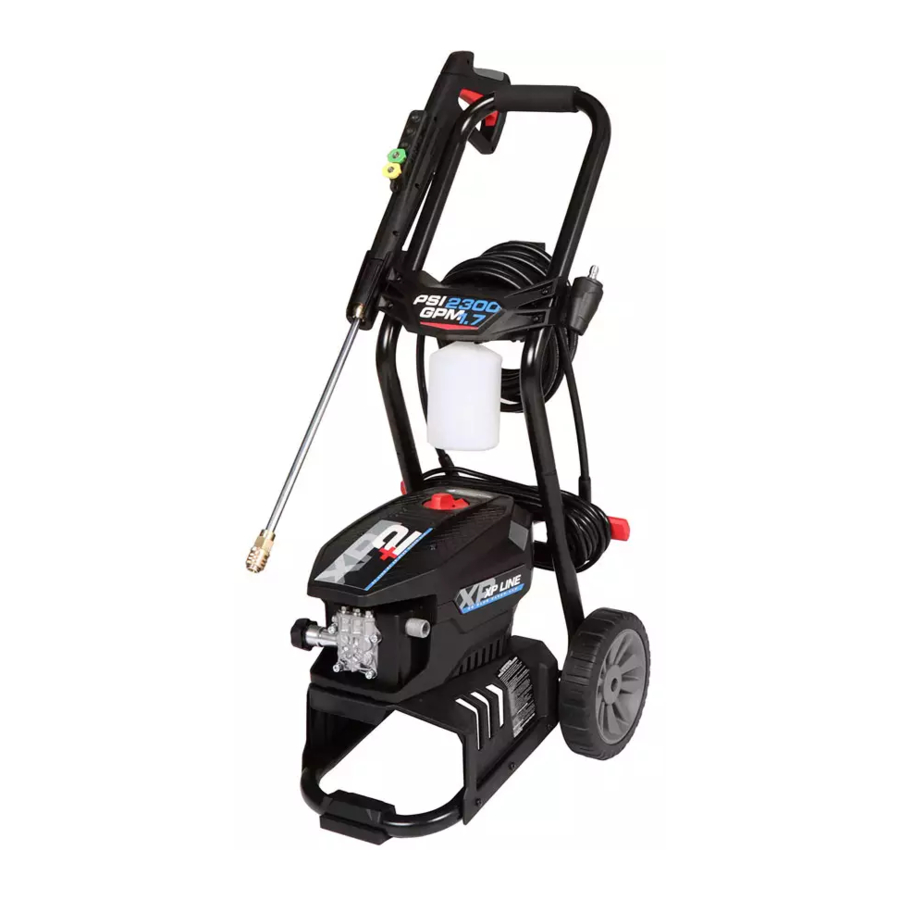

AR Blue Clean BCXP22300P - 2300 PSI Pressure Washer Manual

PRODUCT SPECIFICATIONS

PACKAGE CONTENTS

HARDWARE CONTENTS

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, DO NOT attempt to assemble the product.
Please call customer service at 1-866-235-5112. Replacement parts will be sent no charge.
Estimated Assembly Time: 5 minutes.
Tools Required for Assembly (not included): Phillips screwdriver.

ASSEMBLY INSTRUCTIONS

1. Wheels Assembly

   Install shims (AA) and wheels (J) to power washer unit (F). Secure with cotter pins (BB).
   Hardware Used:

2.
   Press buttons on power washer unit (F) and install handle (B). power washer unit (F) will click when handle is in proper position.
3.
   Install rotary nozzle holder (G) and one side of hose hook (A) to power washer unit (F). Secure with screw (DD).
   Hardware Used:

4.
   Install spray gun holster (M) and another side of hose hook (A) to power washer unit (F). Secure with screw (DD).
   Hardware Used:

5.
   Fix the bottom of hose hook (A) on the power washer unit (F). Secure with screws (CC).
   Hardware Used:

6.
   Pull back on collar at one end of high pressure hose (N).Push firmly to connect hose to spray gun (K). Twist collar to secure. Confirm hose is locked into spray gun by slightly pulling on them. The hose is now securely attached to spray gun.
7.
   Twist collar then pull back to release the the high pressure hose (N) connection from the gun (K).
8.
   Locking Spray Gun (before Lance installation) To lock trigger of spray gun (K), point gun away from you and turn dial to lock ("3" and "9" position). Squeeze or pull trigger to make sure it is locked. Always leave in locked position when not in use. This ensures the gun is in "safe" mode until it is ready for use. Turn dial to unlock ("12" and "6" position) to release spray gun trigger.
   Note: The trigger lock prevents trigger from being accidentally engaged.
9. Extension Lance Installation

   While spray gun (K) is in the locked position, insert lance (I) into the end of spray gun by inserting and turning clockwise until fully in place. To remove, turn counterclockwise.
10.
    Attach nozzle (E) and Rotary nozzle (C) into end of lance (I) by pressing selected nozzle into place. It will make a "click" sound when firmly in place.
    Note: Always push safety lock button to lock trigger when changing lances and nozzles to ensure that they do not accidentally eject with force during removal.
11.
    To remove nozzle (E) and Rotary nozzle (C), pull back on collar of lance (I) and pull out nozzle.
12. Foam Cannon Installation

    The foam cannon (O) comes with a straw which is fitted into high pressure top. If you do not see the straw, look inside the foam cannon and attach it to the high pressure top. When using foam cannon, fill it with a properly formulated detergent or cleaner with a water ratio according to instructions on the container.
    DO NOT use thick or gel-like detergents as they will clog the foam cannon and can cause damage.
13.
    Attach Foam Cannon (O) into end of lance by pressing cannon into place. It will make a "click" sound when firmly in place.
    Note: Always lock spray gun when changing the foam cannon to ensure it does not eject with force.
    When using the foam cannon, fill it with a properly formulated detergent or cleaner with water ratio according to instructions on the container.
14. Foam Cannon Storage

    Store the foam cannon (O) on the back of the power washer unit (F).
15.
    Pull back on collar at the other end of high pressure hose (N). Push firmly to connect hose to power washer unit. Twist collar to secure. Confirm hose is locked into power washer unit by slightly pulling on hose. The hose is now securely attached.
16.
    Attach a garden hose to built in garden hose adapter. The water is now connected to your power washer.
    Note: Flush out garden hose before connecting to garden hose adapter
    You have now completed the assembly and are ready to begin using your electric power washer. Read and observe all safety instructions.

OPERATING INSTRUCTIONS

• Make sure the power switch is off (light will be off).
• Unwind the power cord completely and plug into a grounded 120 volt outlet.
• Turn on water supply at the faucet to completely open.

• Turn the safety lock button on the spray gun to unlocked. While pointing the spray gun in a safe direction, squeeze the trigger on the spray gun until there is a steady stream of water, letting the water and air out of the hose.

• Turn the power switch to the "ON" (|) position. The unit will turn on for 1 - 2 seconds and shut off. This is a normal function of the auto start feature. Squeeze the spray gun trigger to begin pressure washing.

• Squeeze the spray gun trigger to begin pressure washing.
• Begin power washing by squeezing the trigger on the spray gun all the way into the handle.
• Release the spray gun trigger to stop the power washer.
• Allow the motor to come to a complete stop before squeezing the trigger again.
• Squeezing rapidly will cause the auto start feature to miss an on/off cycle that may prevent it from turning on while squeezing trigger after rapid squeezing. Use slow, deliberate trigger pulls to avoid this.
• Always test a small area to avoid chance of damaging the surface.


Adjusting Soap Levels on Foam Cannon

Twist knob to adjust the level of soap as indicated on the top of the Foam Cannon (O). Twist toward the higher concentration of bubbles for more soap, or the opposite direction for less.

• The power washer will pull a ratio of water to detergent of 10:1 or 10 parts water to 1 part detergent. The detergent concentration can be adjusted by turning the detergent knob on the top of the machine. Turn it left for more concentration or turn it right for less concentration.


Operation Tips

• Note: Test the GFCI (For US unit only) before each use:
  1. Plug GFCI into power outlet. Indicator should turn green to show that cord has power.
  2. Press test button, green indicator should turn off to verify that GFCI cut off power to the cord.
  3. Press reset button – green indicator should turn on to show that cord has power again.
  4. When GFCI is working properly, green indicator will turn on when power is applied. If green indicator turns off, it has detected electric leakage and the GFCI cut off power to the appliance.
• If you hear the motor run intermittently when the trigger is not being squeezed, that is normal. The pump is priming itself so it is ready to operate when the trigger is squeezed. Turn off the power washer if not being used after five minutes.
• The o-rings on the bayonet end of the nozzle should be cleaned regularly and lubricated with non-water soluble grease such as petroleum jelly (not included).
• Keep the nozzle cleaning wire for use in unclogging the nozzle. If you lose the cleaning wire, a straightened paper clip also works.

How to Avoid Damaging Surfaces

• Damage to surfaces being cleaned occurs because the impact force of the water pressure exceeds the durability of the surface. Bare wood can be penetrated, paint can be peeled off, etc. You can vary the force of your power washer by controlling:
  1. The angle of the surface being cleaned.
  2. The distance of the nozzle from the surface being cleaned.
• Never use a narrow high pressure stream of water on soft surfaces susceptible to damage.
• Use the 25˚ quick connect nozzle when cleaning windows. Squeeze the trigger and vary the spray pattern and angle until optimum cleaning efficiency is achieved.

Using Power Cord

• Remove the power cord from the unit by swiveling the cord hook to the up or down. The power cord then can be slid off to the side of the power washer unit.
• Swivel cord hook back to left or right when ready to wrap the cord back into place for storage.


CARE AND MAINTENANCE

Detergents

• Use detergents designed for power washers. Hardware stores or home centers also have power washer detergents for different cleaning projects. The cleaning solution should be the consistency of water in order to prevent clogging your detergent bottle and nozzle.
• This system applies detergent under low pressure. The cleaning power of the detergents is enhanced when applied with low pressure and enough time is given to break down dirt and grime. The combination of low pressure and chemical action is very effective and can be better than scrubbing if applied properly. Always spray detergent on a dry surface. Do not pre-soak area. Wetting the surface first dilutes the detergent and reduces its cleaning ability. Do not allow detergent to dry on surface. On vertical surfaces being cleaned, apply detergent to lower surfaces and work your way up to prevent detergent from causing streaks in the dirt and grime. Rinse detergent by pressure washing from bottom up for same reason.
• If a stain is particularly tough, it may be necessary to reapply the detergent and use a bristled brush to scrub the stain. Subsequent power washing after brushing should successfully complete your cleaning job.

Cleaning Garden Hose Adapter

• The screen inside the adapter should be cleaned periodically. Remove it by dragging a thumb over the screen with enough pressure to pull the screen and washer out. Rinse it with clean water and then place it back in the adapter.


Cleaning Nozzles

• A clogged or partially clogged nozzle can cause significant reduction of water pressure coming out of the nozzle and/or cause the unit to pulsate while spraying.
• Turn off the unit.
• Turn off the water supply to the unit.
• Relieve any pressure trapped in the hose by squeezing the trigger 2 - 3 times, then lock the spray gun by turning the dial to lock ("3" and "9" position).
• Using the nozzle tip cleaner provided (or an unfolded paper clip), insert the wire into the nozzle hole and move back and forth until debris is dislodged.

• Back flush water through the nozzles using garden hose and highest pressure available (either standard water nozzle or use your thumb over the nozzle to create water pressure for back flush).

Storage

• When your pressure washer session has been completed, turn off the power switch. Unplug the power cord from the outlet. Turn off the water supply. Pull the trigger on the spray gun 2-3 seconds to drain out the excess water and to release any remaining water pressure. Do not allow the power washer to run with no water flowing through it.
• Remove high pressure hose from spray gun and unscrew the other end of the high pressure hose from the power washer.
• The high pressure hose is stored on the hose hook located on the back of the handle.

• Insert extension lance into nozzle tray, and press spray gun with extension lance into spray gun holster.
• Make sure to discard any remaining detergent from the foam cannon. Residual chemical will stick to the container which could become contaminated and can cause the foam cannon injector to clog and not function properly. Flush the foam cannon and nozzles with clear water to prevent clogging.
• The quick connect nozzles are stored on the nozzle holder located on the spray gun.
• Put the rotary nozzle on the rotary nozzle holder, which on the right of the power washer.
• Store the foam cannon on the back of the power washer.
• Wind the power cord around the cord hooks located on the back of the power washer.
• DO NOT store the power washer where it is exposed to freezing temperatures unless you use an antifreeze designed for pumps. Store the power washer indoors to prevent the water in the unit from expanding under freezing conditions. When the water freezes and expands, your power washer will be damaged and become inoperable. Or, if storing outdoors, it is recommended you use pump saver (not included) to protect pumps.

PUMP SAVER

Pump Saver is a product that protects and prolongs the life of the pump. This will keep the internal parts of the pump lubricated and protected from freezing while being stored in ALL climates. It also assists with protection from internal corrosion. The AR Blue Clean part #is: PW64511(16oz. bottle). Order online at www.arblueclean.com

Pump Saver Instructions

Follow the previous storage instructions for your power To prevent staining, protect the surface under the power washer from any excess fluid. wear ear and eye protection when using this product.
Turn unit off and disconnect the gun before adding pump saver. Unscrew threaded top from bottle to remove seal and reattach threaded top to bottle. Remove black cap from bottle.

1. Place top of pump saver bottle onto the garden hose adapter.
2. Secure pump saver bottle by turning in a clockwise direction.
3. Turn the power on.
4. Squeeze bottle to help it into the pump.
5. Turn power off when pump saver exits the machine's water outlet.

Note: Instructions on Pump Saver Bottle are generic and not model specific.

TROUBLESHOOTING

If you have any questions regarding the product, please call customer service at 1-866-235-5112

REPLACEMENT PARTS LIST

For replacement parts, call our customer service department at 1-866-235-5112, 8 a.m. - 5:00 p.m., CST, Monday - Friday or order online at www.arblueclean.com

SAFETY INFORMATION

Please read and understand this entire manual before attempting to assemble and operate the product.
This manual contains information that relates to PROTECTING PERSONAL SAFETY and PREVENTING EQUIPMENT PROBLEMS. It is very important to read this manual carefully and understand it thoroughly before using the product. The symbols listed below are used to indicate this information.

Potential hazard that will result in serious injury or loss of life.

Hazard that could result in serious injury or loss of life.

Potential hazard that may result in moderate injury or damage to equipment.
Note: The word "Note" is used to inform the reader of something the operator needs to know about the tool.

To reduce the risk of injury, the user must read and understand the instructions before using this product.

1.
   When using this product, basic precautions should always be followed, including the following.
2. Read all the instructions before using the product.
3. Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
4. Keep operating area clear of persons.
5. Do not overreach or stand on unstable support. Keep good footing and balance at all times.
6. Follow the maintenance instructions as specified in the manual.
7. To avoid personal injury and/or damage to property and to maximize your power washer experience, carefully follow all of the safety tips, instructions, warnings and safeguards and become familiar with all of the controls. Be sure you know how to quickly bleed off the pressure from all parts of your power washer and how to turn off the power washer.
8. This power washer conforms to CSA and other safety and consumer standards. DO NOT modify or rebuild any part of your power washer.
9. DO NOT use your power washer when you are under the influence of alcohol or drugs. Use this power tool carefully and only when you are alert.
10. Watch your balance and footing while using your power washer. Surfaces become slippery when wet and are extra slippery when using a detergent or cleaner.
11. NEVER operate the power washer in bare feet, sandals, or open-toed shoes.
12. When using the power washer near children, make sure they are closely supervised by an adult to avoid injury. NEVER let a child use the power washer.
13. Keep fingers, hands, feet and any part of your body clear of the stream of high pressure water. The powerful spray can cause blindness or blast holes in the skin. It can break a window if you are too close when you pull the trigger on the spray gun.
14. ALWAYS wear eye protection to prevent injury to eyes when operating the power washer.
15. To avoid mishaps or injury, ALWAYS use the trigger safety lock when not using the power washer even if only stopping briefly.
16. The power washer is equipped with a Ground Fault Circuit Interrupter (GFCI) (For US unit only) which greatly reduces the chance of electric shock while the unit is in use. If replacement of the plug or cord is needed, use only identical replacement parts.
17. Point the spray gun in a safe direction when beginning a power washer session.
18.
    NEVER spray directly at a person, animal, electrical device or the unit itself.
19. When first using the spray gun, hold the spray gun and lance with two hands when pulling the trigger (one hand to pull the trigger and the other to stabilize the gun assembly) until you get used to the "kickback" from the spray gun.
20. When you turn the power switch off, water pressure may remain in the system. To discharge the pressure, point the spray gun in a safe direction and pull the trigger.
21. NEVER spray flammable liquids.
22. NEVER use the power washer in areas that contain combustible dust, liquids or vapors.
23. Avoid contact of the pressure hose with sharp objects and examine the hose regularly. Replace if damaged. Due to the high pressure involved, it cannot be repaired if cut or damaged.
24. Only use detergent specifically formulated for power washers and follow instructions on the detergent's label. Dish or laundry soap is too thick and will clog the nozzle of your foam cannon.
25. Protect eyes, lungs, and skin from exposure to detergent.
26.
    If connection is made to a potable water system, the system Should be protected against backflow.

    Store the power washer indoors to prevent the water in the unit from expanding under freezing conditions. When the water freezes and expands, your power washer will be damaged and become inoperable. Or, if storing outdoors, it is recommended you use pump saver (not included) to protect pumps.
27. NEVER use hot water with your power washer. It will overheat and damage the high pressure pump.
28. NEVER leave the power washer unattended while it is powered "ON".
29. ALWAYS turn the water supply on before turning the power washer power to on. Running the pump dry will cause damage to the internal components.
30. NEVER use a water supply to your power washer that exceeds 150 PSI maximum.
31. NEVER disconnect the high pressure hose from the power washer while the system is pressurized.
32. NEVER permanently engage the trigger mechanism on the spray gun.
33. NEVER operate the power washer unless all components are properly and securely connected.
34. NEVER allow the power washer pump to run for more than one minute after you have turned off the water supply. This can cause the motor and pump to overheat and fail.
35. NEVER use lances or other parts that are not compatible for this specific AR BLUE MAXX unit.
36. NEVER use an extension power cord since it defeats the effectiveness of the GFCI (For US unit only) and increases the chance of electrocuting the operator.
37. NEVER spray any electrical outlet with your power washer.
38. Inspect the power cord before using. DO NOT use it if it is damaged.
39. Stay alert - watch what you are doing.

Ground Fault Circuit Interrupter Protection (For US unit only):
This pressure washer is equipped with a ground-fault circuit-interrupter (GFCI) built into the plug of the power supply cord. This device provides additional protection from the risk of electric shock. Should replacement of the plug or cord become necessary, use only identical replacement parts that include GFCI protection.
This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

Improper connection of the equipment grounding conductor can result in a risk of electrocution. Check with a qualified electrician or service personnel if you are in doubt as to whether the outlet is properly grounded. Do not modify the plug provided with the product – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. Do not use any type of adaptor with this product.

Questions, problems, missing parts?
Before returning to your retailer, call (1-866-235-5112) or email (info@arnorthamerica.com) our customer service department. They are available from 8:00 a.m. - 5:00 p.m., CST, Monday - Friday.
www.arblueclean.com
